Key Takeaways
- Battery form factor refers to the physical shape, size, and enclosure type of an energy storage system
- The four primary form factors are wall-mounted, floor-standing, rack-mounted, and outdoor-rated enclosures
- Residential installations typically use wall-mounted or floor-standing units, while commercial projects favor rack-mounted systems
- NEC code requires specific clearances around battery enclosures for ventilation and service access
- Form factor selection directly affects installation cost, labor time, and available placement locations
- Solar designers must account for unit dimensions, weight ratings, and stacking configurations when planning battery layouts
What Is Battery Form Factor?
Battery form factor describes the physical design, dimensions, weight, and enclosure configuration of a battery energy storage system (BESS). It determines where and how a battery can be installed — on a wall, on the floor, in a server rack, or in a weatherproof outdoor cabinet. Form factor is distinct from battery chemistry (such as LFP or NMC) and instead focuses on the mechanical and structural aspects of the unit.
For solar professionals, form factor is a practical constraint that shapes project planning. A wall-mounted unit like the Tesla Powerwall fits neatly in a garage, but a 500 kWh commercial system requires rack-mounted modules in a dedicated electrical room or outdoor pad. Choosing the wrong form factor leads to installation delays, permit issues, or costly site modifications.
Form factor is often the first filter when specifying a battery system. Before comparing capacity, chemistry, or warranty terms, designers need to confirm the unit physically fits in the available space and meets local code requirements for mounting, clearance, and ventilation.

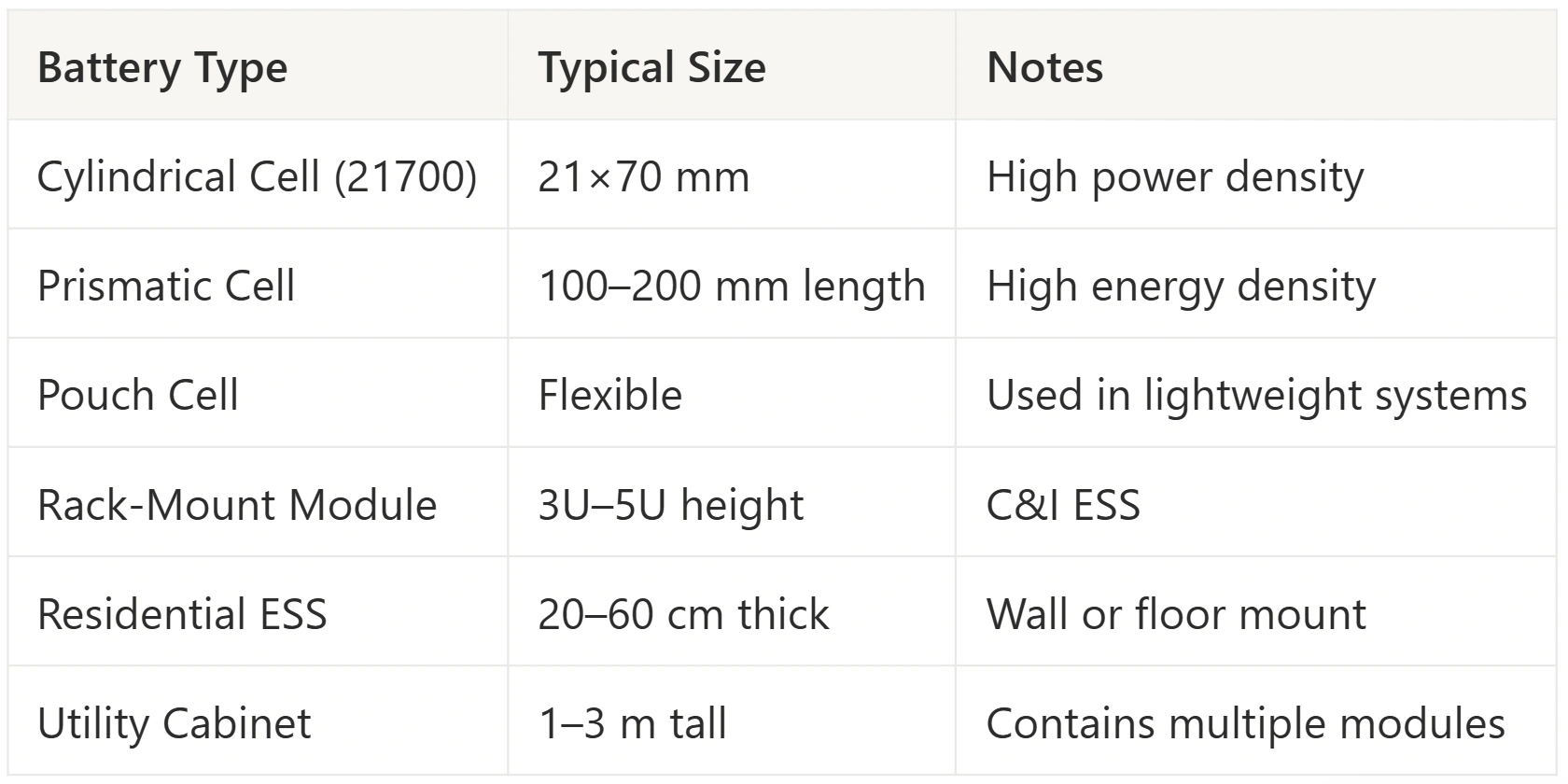

Types of Battery Form Factors
Battery storage systems ship in four primary form factors, each suited to different project types and installation environments.
Wall-Mounted
Compact units designed to hang on interior or exterior walls using a mounting bracket. Common examples include the Tesla Powerwall 3, Enphase IQ Battery 5P, and SolarEdge Home Battery. Typical capacity ranges from 5 to 15 kWh per unit. Ideal for garages, utility rooms, and side walls where floor space is limited.
Floor-Standing
Taller, cabinet-style units that sit on a concrete pad or level floor surface. Examples include the Generac PWRcell, FranklinWH aPower, and Sonnen ecoLinx. Capacities range from 10 to 40 kWh. These units often integrate inverters and system controllers into a single enclosure, reducing component count.
Rack-Mounted
Modular battery modules designed for standard 19-inch server racks or custom battery cabinets. Used in commercial, industrial, and utility-scale projects where capacity requirements exceed 50 kWh. Manufacturers like BYD, SimpliPhi, and LG ship rack-compatible modules that stack vertically, allowing flexible capacity scaling from 50 kWh to several MWh.
Outdoor-Rated Enclosures
Weather-sealed cabinets rated NEMA 3R or higher for outdoor installation. These enclosures protect battery modules from rain, dust, UV exposure, and temperature extremes. Common in regions where indoor installation space is unavailable. Some units, like the Tesla Powerwall, carry an outdoor rating by default, while others require a separate NEMA-rated cabinet.
NEC Article 480 and local amendments require minimum clearances around battery installations for service access and ventilation. Typical requirements include 36 inches of clear working space in front of the unit, 3 inches of side clearance for airflow, and compliance with manufacturer-specified temperature ranges. Battery systems containing lithium-ion cells must also meet UL 9540 and UL 9540A fire safety testing standards. Always verify local AHJ requirements before finalizing placement.
Form Factor Comparison
Selecting the right form factor requires matching the unit’s physical characteristics to the project’s spatial and electrical constraints.
| Form Factor | Typical Capacity | Weight | Dimensions (W x D x H) | Best For | Installation Time |
|---|---|---|---|---|---|
| Wall-Mounted | 5–15 kWh | 50–130 kg | 60 x 15 x 115 cm | Garages, utility rooms, side walls | 2–4 hours |
| Floor-Standing | 10–40 kWh | 100–250 kg | 60 x 60 x 160 cm | Basements, mechanical rooms, carports | 3–6 hours |
| Rack-Mounted | 50–500+ kWh | 30–60 kg per module | 48 x 60 x 180 cm (per rack) | Electrical rooms, container deployments | 1–3 days |
| Outdoor Enclosure | 5–100+ kWh | Varies by config | Custom; pad-mounted | Exterior walls, ground pads, rooftops | 4–8 hours |
Space Requirement = Number of Units x (Unit Width + Clearance) x (Unit Height + Clearance)For example, installing three wall-mounted units each 60 cm wide with 10 cm clearance between them requires: 3 x (60 + 10) = 210 cm of linear wall space, plus 36 inches (91 cm) of clear working space in front per NEC.
Practical Guidance
Form factor affects every role in the solar-plus-storage workflow. Here is role-specific guidance for working with battery dimensions and placement constraints.
- Verify wall load capacity for wall-mounted units. A single residential battery can weigh 50 to 130 kg. Confirm the mounting surface can support this load. Concrete and masonry walls are straightforward; wood-frame walls may need blocking or a plywood backer.
- Use solar design software to model battery placement. Include battery dimensions in site plans to verify clearances, conduit routing, and accessibility. This avoids field conflicts during installation.
- Account for stacking and expansion. Many wall-mounted systems allow vertical stacking of additional units. Design the initial layout with expansion capacity if the customer may add storage later.
- Check environmental ratings for outdoor placements. Not all batteries carry NEMA 3R or IP65 ratings. If the design calls for outdoor installation, confirm the unit’s environmental rating or specify an appropriate protective enclosure.
- Plan for weight handling equipment. Floor-standing units weighing 200+ kg require a dolly or lift gate. Rack-mounted modules are lighter individually but add up quickly. Confirm delivery access and pathways to the installation location.
- Pre-install mounting hardware before delivery. For wall-mounted batteries, secure the bracket, run conduit, and complete wiring prep before the unit arrives. This reduces on-site labor time and minimizes the duration that heavy equipment needs support.
- Maintain NEC working clearances. Do not install batteries in closets, bathrooms, or spaces that lack the required 36-inch frontal clearance. Document clearance compliance with photos for the inspection file.
- Verify ventilation for indoor installations. Lithium-ion batteries generate heat during charge and discharge cycles. Confirm ambient temperature stays within the manufacturer’s operating range (typically 0 to 50 degrees C). Add ventilation if the installation space is enclosed.
- Use form factor as a selling point. Homeowners care about aesthetics. A sleek wall-mounted unit in the garage is an easier sell than a floor-standing cabinet that consumes usable space. Show product photos during the proposal.
- Include placement visuals in proposals. Use solar proposal software to show exactly where the battery will go. Customers are more likely to approve when they can see the layout in context.
- Address space concerns upfront. Many homeowners assume batteries are large and intrusive. Provide exact dimensions and explain that modern wall-mounted units are similar in size to a small water heater or electrical panel.
- Explain outdoor installation options. For customers without garage or basement space, outdoor-rated units or NEMA enclosures provide a viable alternative. Highlight that outdoor units are designed to withstand weather and temperature extremes.
Design Battery Storage Layouts with Accurate Specifications
SurgePV includes battery placement tools with real manufacturer dimensions, clearance checks, and integrated solar design software for complete system layouts.
Book a DemoNo commitment required · 20 minutes · Live project walkthrough
Installation Considerations by Form Factor
Wall-Mounted Systems
Wall-mounted batteries are the most common form factor in residential solar-plus-storage projects. Units like the Tesla Powerwall 3 (11.5 kWh, 62 kg without battery pack) and Enphase IQ Battery 5P (5 kWh, 55 kg) mount directly to a wall using a manufacturer-provided bracket. Installation typically requires lag bolts into studs or masonry anchors, a dedicated 240V circuit, and conduit routing to the main service panel or energy storage system controller.
The primary constraint is wall strength. Drywall alone cannot support the weight. Installers must anchor into structural framing or concrete. For stacked configurations (two or three units vertically), the combined load can exceed 300 kg, requiring an engineered mounting solution.
Wall-mounted units are typically the fastest to install. A single-battery residential job can be completed in 2 to 4 hours, including electrical connections and system commissioning. This speed advantage makes wall-mounted batteries attractive for high-volume installers running multiple jobs per day.
Floor-Standing Systems
Floor-standing batteries suit projects where wall mounting is impractical or where higher capacity is needed in a single enclosure. The FranklinWH aPower (13.6 kWh per unit) and Generac PWRcell (9–18 kWh depending on module count) are common examples. These units need a flat, level surface, typically a concrete pad or reinforced flooring.
Floor-standing form factors often integrate the inverter, battery management system, and transfer switch into one cabinet. This all-in-one approach reduces wiring complexity but increases the unit’s footprint and weight.
Because these units sit on the floor, they are easier to service than wall-mounted batteries. Technicians can access internal components without working at height. However, floor-standing batteries consume usable space, which can be a concern in small garages or utility rooms where every square meter matters.
Rack-Mounted Systems
Commercial and utility-scale projects use rack-mounted battery modules. Individual modules (typically 3 to 7 kWh each, weighing 30 to 60 kg) slot into standard 19-inch or custom racks. A single rack assembly might hold 50 to 100 kWh. Multiple racks are combined for larger systems.
This modular approach provides flexibility. Capacity can be increased by adding modules to existing racks or by adding new racks. It also simplifies maintenance because individual modules can be swapped without taking the entire system offline.
Rack-mounted installations require more planning than residential form factors. Designers must specify rack layouts, calculate total weight loads for the floor, plan cable management between racks, and ensure adequate HVAC capacity for the battery room. Fire suppression systems may also be required for installations above certain capacity thresholds, depending on AHJ requirements and NFPA 855 compliance.
Outdoor-Rated Enclosures
Outdoor enclosures serve all market segments. In residential projects, they solve the common problem of homes without garage or basement space. In commercial applications, rooftop or ground-pad enclosures keep batteries close to the electrical service entry without consuming interior square footage.
Key specifications for outdoor enclosures include the NEMA rating (3R for rain protection, 4 for windblown rain and dust, 4X for corrosion resistance), operating temperature range, and whether the enclosure includes active thermal management (fans or liquid cooling). In hot climates, battery performance degrades if internal temperatures exceed the rated maximum, so passive ventilation alone may not be sufficient.
Impact on System Design
Form factor influences several design decisions beyond simple space planning:
| Design Decision | Wall-Mounted | Floor-Standing | Rack-Mounted |
|---|---|---|---|
| Placement Flexibility | High (walls, garages, exteriors) | Moderate (requires floor space) | Low (dedicated room or container) |
| Scalability | Limited (2–3 units typical max) | Moderate (1–3 cabinets) | High (modular, expandable) |
| Integrated Components | Battery only (separate inverter) | Often all-in-one | Battery modules only (separate BMS, inverter) |
| Permitting Complexity | Low | Low to moderate | Moderate to high |
| Typical Project Size | 5–45 kWh residential | 10–60 kWh residential/small commercial | 50 kWh to multi-MWh commercial/utility |
How Form Factor Affects Project Economics
The choice of form factor has direct cost implications beyond the battery unit price. Wall-mounted systems require less labor (2 to 4 hours), fewer materials, and simpler permitting, keeping total installed cost lower. Floor-standing systems add concrete pad preparation and potentially HVAC modifications. Rack-mounted commercial systems involve electrical room preparation, fire suppression, and multi-day installation schedules that significantly increase the balance-of-system cost.
When preparing financial projections using tools like the generation and financial tool, include form-factor-dependent installation costs. A wall-mounted 13 kWh system might cost $800 to $1,200 to install (labor and materials), while a rack-mounted 100 kWh commercial system could require $5,000 to $15,000 in installation labor alone, plus additional costs for site preparation and fire safety compliance.
Choosing Between Form Factors
The decision framework is straightforward. Start with the required storage capacity. If the project needs under 15 kWh, wall-mounted units are the default. Between 15 and 60 kWh, floor-standing or multiple wall-mounted units both work, so site conditions and customer preference determine the choice. Above 60 kWh, rack-mounted modules in a dedicated space are the standard approach.
Next, evaluate the available installation space. Conduct a site survey or use solar design software to map potential battery locations, accounting for NEC clearances and service access paths. The site survey often narrows the form factor options before any technical comparison begins.
When designing systems with multiple wall-mounted batteries, check the manufacturer’s maximum stacking or clustering limits. Tesla allows up to four Powerwall 3 units per site, while Enphase supports up to 80 IQ Battery 5P units in a single system. These limits directly affect how much battery storage capacity you can specify.
Weight and Structural Requirements
Battery weight is a practical concern that varies significantly by form factor. Here is a quick reference for common weight ranges:
| Form Factor | Single Unit Weight | Typical Max per Location | Total Load |
|---|---|---|---|
| Wall-Mounted | 50–130 kg | 2–4 units on one wall | 100–520 kg |
| Floor-Standing | 100–250 kg | 1–3 units | 100–750 kg |
| Rack-Mounted (per rack) | 200–500 kg | Multiple racks | 1,000+ kg |
| Outdoor Enclosure | 150–600 kg | Varies | Site-dependent |
For wall-mounted installations, confirm the wall’s structural capacity with the builder or a structural engineer if mounting more than one unit. For floor-standing and rack-mounted systems, verify that the floor’s load rating (in kg per square meter) can handle the concentrated weight of the battery plus any required seismic anchoring.
In seismic zones (California, parts of the Pacific Northwest, and other high-risk areas), battery installations must comply with seismic bracing requirements. Wall-mounted units need additional anchoring hardware, and rack-mounted systems require bolting to the floor slab. These requirements add cost and labor but are non-negotiable for permit approval in affected jurisdictions.
Sources & Further Reading
- NREL — Grid-Scale Battery Storage: Frequently Asked Questions (2022)
- U.S. DOE — Solar-Plus-Storage 101
- U.S. DOE — Energy Storage Safety
- NFPA 855 — Installation of Stationary Energy Storage Systems
- UL 9540 — Energy Storage System Certification
- Tesla Powerwall 3, Enphase IQ Battery 5P, FranklinWH aPower, and Generac PWRcell manufacturer specification sheets and installation guides
Frequently Asked Questions
What is the best form factor for home battery storage?
For most homes, wall-mounted batteries offer the best combination of space efficiency, aesthetics, and installation simplicity. Units like the Tesla Powerwall and Enphase IQ Battery mount directly on garage or exterior walls, keeping floor space free. Floor-standing units are a better choice when you need higher capacity (over 15 kWh) in a single enclosure or when wall mounting is not structurally feasible. Consider the available installation space, wall structural capacity, and whether you plan to expand storage capacity in the future when making your decision.
How much space does a battery system need?
A single wall-mounted battery typically occupies about 60 x 115 cm of wall space, roughly the size of a large suitcase. NEC code also requires 36 inches (91 cm) of unobstructed working space in front of the unit for service access. For multiple units, add 8 to 10 cm of clearance between each battery. A three-battery wall-mounted system needs approximately 210 cm of linear wall space plus the frontal clearance zone.
Can batteries be installed outdoors?
Yes, many residential batteries are rated for outdoor installation. The Tesla Powerwall carries an IP67 water and dust resistance rating and operates in temperatures from -20 to 50 degrees C. Other units may require a separate NEMA 3R or NEMA 4 enclosure for outdoor placement. When installing outdoors, position the battery away from direct prolonged sunlight, ensure proper drainage around the base, and confirm the unit’s environmental rating matches your climate conditions. Check with your local AHJ for any additional setback requirements from property lines, windows, or combustible surfaces that apply to outdoor battery installations.
