What Is Combiner Box? Definition & Guide

Key Takeaways

Combines multiple DC string outputs into a single, higher-current feed to the inverter input
Houses string fuses, DC disconnect switches, and surge protection devices for overcurrent and fault protection
Required in systems with three or more strings that exceed the inverter’s available input connections
Must use NEMA-rated enclosures (typically NEMA 4X or 3R) matched to the installation environment
Reduces the number of home-run conductor pairs from the array to the inverter, lowering material and labor costs
Smart combiners integrate per-string current monitoring for real-time performance tracking and fault detection

What Is a Combiner Box?

A combiner box (also called a PV combiner or DC combiner) is an electrical enclosure mounted between the solar array and the inverter. It receives the positive and negative conductor pairs from each string of panels and combines them onto a single, higher-current DC output bus. This consolidated output then runs to the inverter through a single conductor pair, rather than requiring separate home runs for every string.

Beyond combining circuits, the combiner box serves as the primary protection point for the DC side of the system. Each string input passes through an individual fuse or circuit breaker sized to protect the string conductors and modules from reverse current and overcurrent faults. A main DC disconnect switch inside (or adjacent to) the combiner allows maintenance crews to isolate the array from the inverter safely.

In commercial rooftop and ground-mount systems, the combiner box is the single most important DC-side component for safety and serviceability. It provides the fused protection and disconnect capability that NEC 690 requires for every string circuit.

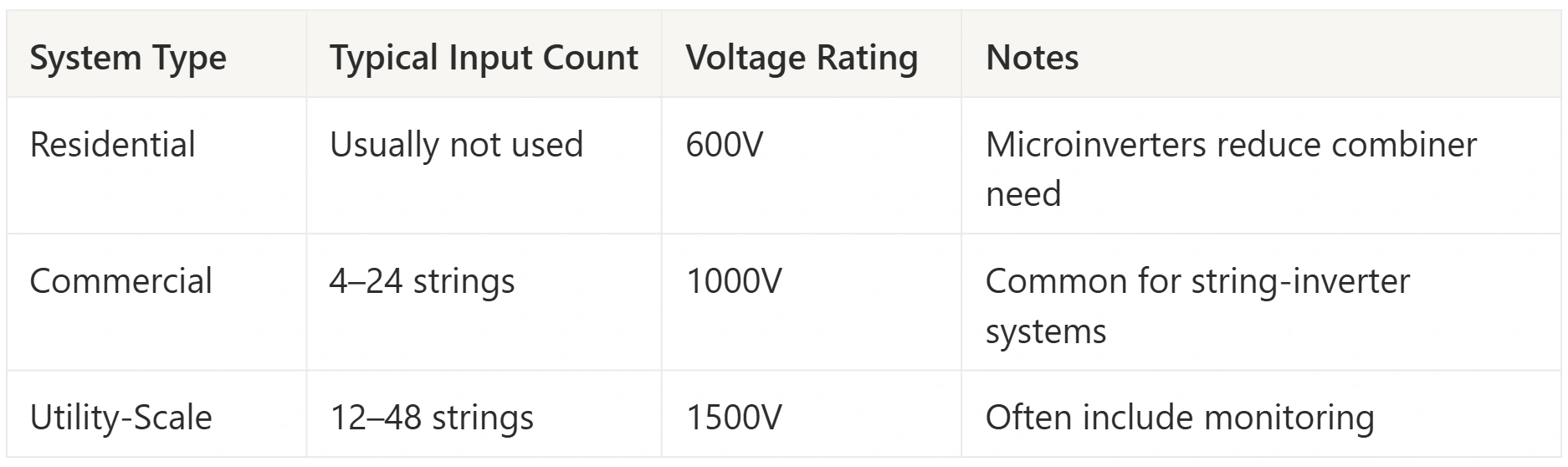

Types of Combiner Boxes

Residential

Residential Combiner (2–4 Strings)

Compact wall-mount enclosures designed for small rooftop systems. Typically rated for 2–4 string inputs at 15–20 A per fuse position. Often integrated into the inverter’s DC disconnect housing on residential string inverter installations.

Commercial

Commercial Combiner (8–32 Strings)

Larger NEMA 4X enclosures rated for 8–32 string inputs at up to 1,000 V or 1,500 V DC. Includes touch-safe fuse holders, a DC disconnect switch rated for full load-break, and DIN-rail mounted surge protection devices. Standard for commercial rooftop and ground-mount arrays.

Utility-Scale

Re-Combiner Box

Aggregates the outputs of multiple field combiner boxes into a single high-current feed to a central or string inverter. Used in utility-scale and large commercial ground-mount systems where dozens of combiner boxes feed into a single inverter or inverter station.

Advanced

Smart Combiner

Includes per-string current sensors, voltage monitoring, and a communication interface (RS-485, Modbus, or wireless). Transmits real-time string-level data to the monitoring platform, enabling rapid fault detection and performance diagnostics without manual measurement.

Combiner Box Components

Every combiner box contains a core set of electrical components. The table below lists each one along with its function, applicable NEC requirement, and typical rating range.

Component	Function	NEC Requirement	Typical Rating
String Fuses	Protect string conductors and modules from reverse current and overcurrent faults	NEC 690.9 — overcurrent protection required when three or more strings are paralleled	15 A, 20 A, or 30 A fuses rated for DC service at system voltage
Fuse Holders	Provide touch-safe, tool-less fuse replacement	UL 4248 listed for DC, finger-safe per NEC 690.16	30 A or 60 A rated holders, 600 V / 1,000 V / 1,500 V DC
DC Disconnect Switch	Allows load-break isolation of the array from the inverter for maintenance	NEC 690.15 — disconnecting means required for each source circuit	200–600 A, rated for full DC load-break at system voltage
Surge Protection Device (SPD)	Clamps transient overvoltages from lightning or switching surges	NEC 690.7(C) recommends SPDs on DC circuits	Type 2 SPD, 600–1,500 V DC, 40 kA rating
DC Bus Bars	Positive and negative copper bus bars combine all string outputs into a single conductor pair	NEC 690.8 — conductor ampacity requirements	Sized for combined string current with 125% continuous duty factor
Grounding Bus	Bonds the enclosure and equipment grounding conductors	NEC 690.43 — equipment grounding required	#6 AWG or larger, bonded to enclosure
Enclosure	Weather-rated housing protecting all internal components	NEC 690 and UL 1741 listing	NEMA 3R (outdoor sheltered) or NEMA 4X (outdoor exposed / corrosive)

Fuse Sizing Formula

Combiner Fuse Rating Calculation

Fuse Rating = String Isc × 1.25 (NEC continuous duty) × 1.25 (NEC 690.9 overcurrent) = String Isc × 1.56

The NEC requires two separate 125% factors applied to the string short-circuit current (Isc):

125% continuous duty factor (NEC 690.8) — because PV source circuits are classified as continuous.
125% overcurrent protection factor (NEC 690.9) — the fuse must be rated at 125% of the conductor ampacity, which is itself 125% of Isc.

The combined result is Isc x 1.5625, rounded up to the next standard fuse size. For example, a string with an Isc of 10.5 A requires a minimum fuse rating of 10.5 x 1.56 = 16.38 A, rounded up to a 20 A fuse.

Solar design software that automates electrical calculations will apply these factors automatically and select the correct standard fuse size based on the module datasheet Isc value.

When Combiner Boxes Are NOT Needed

Not every solar installation requires a combiner box. String inverters with enough MPPT inputs can accept each string directly — if an inverter has four MPPT inputs and the system has four strings, no combiner is needed. Microinverter and AC-module systems eliminate the DC combiner entirely because each panel has its own inverter, and all combining happens on the AC side. Two-string residential systems often connect directly to the inverter’s two DC inputs without a separate combiner, since NEC 690.9 does not require string fusing when only one or two strings are paralleled (the reverse current from a single parallel string is too low to damage modules).

Practical Guidance

Combiner box selection and installation affect system safety, performance, and long-term serviceability. Here is role-specific guidance:

Match string count to combiner capacity. Select a combiner with at least as many fuse positions as the number of strings in the design. Leave one or two spare positions for future expansion if the customer requests it.
Verify voltage ratings. The combiner’s maximum system voltage rating must equal or exceed the string Voc at the lowest expected ambient temperature. Use NEC 690.7 temperature correction factors or let solar design software calculate the corrected Voc automatically.
Minimize home-run distances. Place the combiner box as close to the array as practical. Shorter home runs from the combiner to the inverter reduce conductor costs and voltage drop losses.
Specify smart combiners for large systems. On commercial arrays above 50 kW, per-string monitoring pays for itself through faster fault detection and reduced energy losses from undetected underperformance.

Torque all connections to spec. Loose DC connections cause arcing and fire risk. Use a calibrated torque wrench on every bus bar bolt, lug, and terminal — record torque values in the commissioning report.
Verify polarity before closing the disconnect. Confirm positive and negative string conductors are landed on the correct bus bars with a multimeter before energizing. Reversed polarity can damage the inverter and void warranties.
Seal conduit entries against water ingress. Use listed conduit hubs or cord grips at every knockout. In coastal or high-humidity environments, apply sealant and select NEMA 4X stainless steel enclosures to prevent corrosion.
Label every string position. Mark each fuse position with the corresponding string ID from the electrical design drawing. This saves hours of troubleshooting during future service calls.

Explain the safety benefit. Homeowners and building owners respond well to knowing that the combiner box provides a single disconnect point to shut down the entire array for maintenance or emergencies.
Upsell smart monitoring. Smart combiners with per-string monitoring give commercial customers real-time visibility into system performance. Position this as insurance against silent underperformance.
Include combiner costs in proposals. Do not bury combiner box costs in a “BOS” line item. Itemizing the combiner shows transparency and helps justify the total system price.
Use design visuals. Show the single-line diagram from your solar design software in the proposal. A clear electrical layout builds confidence that the system has been properly engineered.

Design Electrical Systems with Automatic Component Sizing

SurgePV auto-selects combiner boxes, fuse ratings, and conductor sizes based on your array layout and local code requirements.

Book a Demo

No commitment required · 20 minutes · Live project walkthrough

Installation Best Practices

Proper combiner box installation is a code requirement, not a recommendation. The following practices reflect NEC 690 and standard industry procedures.

Location and Mounting

Mount the combiner box as close to the array as practical, typically on the roof near the array or on a ground-mount racking structure. The enclosure must be accessible for maintenance without requiring work at height whenever possible. For rooftop installations, position the combiner near a roof hatch or access ladder.

Maintain the clearances required by NEC 110.26 around the disconnect switch — a minimum of 36 inches of clear working space in front of the enclosure for equipment rated up to 600 V DC.

Conductor Management

All DC conductors entering the combiner must be supported and secured per NEC 338 or 392 (depending on wiring method). Use listed cable management within the enclosure to prevent conductors from contacting energized bus bars or fuse terminals. Separate positive and negative conductors on opposite sides of the enclosure to reduce the risk of short circuits.

Grounding and Bonding

Bond the combiner enclosure to the equipment grounding system per NEC 690.43. If the combiner includes a ground bus bar, land all equipment grounding conductors from the string wiring and the home-run conduit on this bus. Verify continuity from the combiner enclosure to the main grounding electrode with a megohmmeter during commissioning.

Sources

NEC 690 — Solar Photovoltaic Systems. National Fire Protection Association (NFPA 70). Covers overcurrent protection (690.9), disconnecting means (690.15), conductor sizing (690.8), grounding (690.43), and maximum voltage calculations (690.7).

NREL — Best Practices for PV System Operations and Maintenance. National Renewable Energy Laboratory. Includes guidance on combiner box inspection intervals, thermal imaging protocols, and string-level monitoring for commercial systems.

UL 1741 — Inverters, Converters, Controllers and Interconnection System Equipment. Underwriters Laboratories. Listing standard for combiner boxes and associated DC switchgear used in photovoltaic systems.

Frequently Asked Questions

When do you need a combiner box for solar?

A combiner box is needed when your solar array has more DC strings than the inverter has available input connections. This is common in systems with three or more strings. Per NEC 690.9, when three or more strings are paralleled, each string must have individual overcurrent protection (fuses), and a combiner box is where those fuses are housed. Small residential systems with one or two strings can often connect directly to the inverter inputs without a separate combiner.

What is inside a solar combiner box?

A solar combiner box contains string fuses (one per string input), positive and negative DC bus bars, a DC disconnect switch for maintenance isolation, surge protection devices (SPDs) to clamp lightning and switching transients, and a grounding bus bar. Smart combiners also include per-string current sensors and a communication interface for remote monitoring. All components are housed inside a weather-rated NEMA enclosure, typically NEMA 3R or NEMA 4X depending on the installation environment.

What size fuses go in a solar combiner box?

String fuse size is calculated by multiplying the module’s short-circuit current (Isc) by 1.56 (two consecutive 125% factors required by NEC 690.8 and 690.9), then rounding up to the next standard fuse size. For example, a string with a module Isc of 10.5 A needs a minimum fuse of 16.38 A, so you would use a 20 A fuse. The fuses must be rated for DC service at the system’s maximum voltage. Common residential string fuse sizes are 15 A and 20 A; commercial systems often use 20 A or 30 A fuses depending on the module’s Isc rating.
