What Is Degradation Rate? Definition & Guide

Key Takeaways

Degradation rate is the annual percentage loss in a solar panel’s power output, typically 0.25–0.70% per year for modern crystalline silicon modules
First-year losses (Light-Induced Degradation) are a separate, one-time drop of 1–3% for p-type cells before the steady annual rate takes effect
At 0.50% annual degradation, a panel retains approximately 88% of its nameplate rating after 25 years of operation
Four primary degradation mechanisms — LID, PID, UV degradation, and mechanical degradation — each affect panels through different physical processes
N-type cell technologies (TOPCon, HJT) show the lowest degradation rates at 0.25–0.40% per year, making them favorable for long-term financial projections
Accurate degradation modeling in solar design software directly affects lifetime energy yield estimates, payback periods, and customer proposal accuracy

What Is Degradation Rate?

Degradation rate refers to the gradual, measurable decline in a solar panel’s electrical output over its operational lifetime. Every solar module loses a small fraction of its rated power each year due to physical and chemical changes at the cell, encapsulant, and interconnect level. This rate is expressed as a percentage per year and is one of the most important inputs for long-term energy production and financial modeling.

A 400W panel degrading at 0.50% per year will produce roughly 351W after 25 years. That 49W decline happens gradually — less than 2W per year — but compounds to reduce total lifetime energy production by approximately 6% compared to a zero-degradation scenario. Accounting for this decline is what separates accurate solar proposals from overly optimistic ones.

Degradation rate is distinct from system losses caused by soiling, shading, wiring resistance, or inverter clipping. Those are operational losses that can be mitigated or reversed. Degradation, by contrast, is an irreversible material process built into the physics of photovoltaic cells.

Types of Degradation

Solar panels experience four primary categories of degradation, each driven by different physical mechanisms:

Light-Induced Degradation (LID)

Occurs within the first hours to days of sun exposure. Boron-oxygen defects form in p-type silicon cells, reducing efficiency by 1–3%. This is a one-time drop, not recurring. N-type cells (TOPCon, HJT) are largely immune to LID because they use phosphorus doping instead of boron.

Potential-Induced Degradation (PID)

Caused by high voltage stress between the solar cells and the grounded module frame. Sodium ions migrate from the glass into the cell, creating shunt paths that can reduce module power by 5–30%. Proper system grounding and PID-resistant cell designs prevent it.

UV Degradation

Ultraviolet radiation gradually yellows the EVA encapsulant and backsheet materials, reducing the amount of light that reaches the cells. Modern UV-stabilized encapsulants and POE (polyolefin elastomer) materials slow this process, but it remains a steady contributor to long-term output decline.

Mechanical Degradation

Daily thermal cycling causes expansion and contraction of cell materials, solder joints, and ribbon interconnects. Over thousands of cycles, this produces micro-cracks that increase series resistance and reduce current collection. Wind loading, snow loads, and rough handling during installation compound the effect.

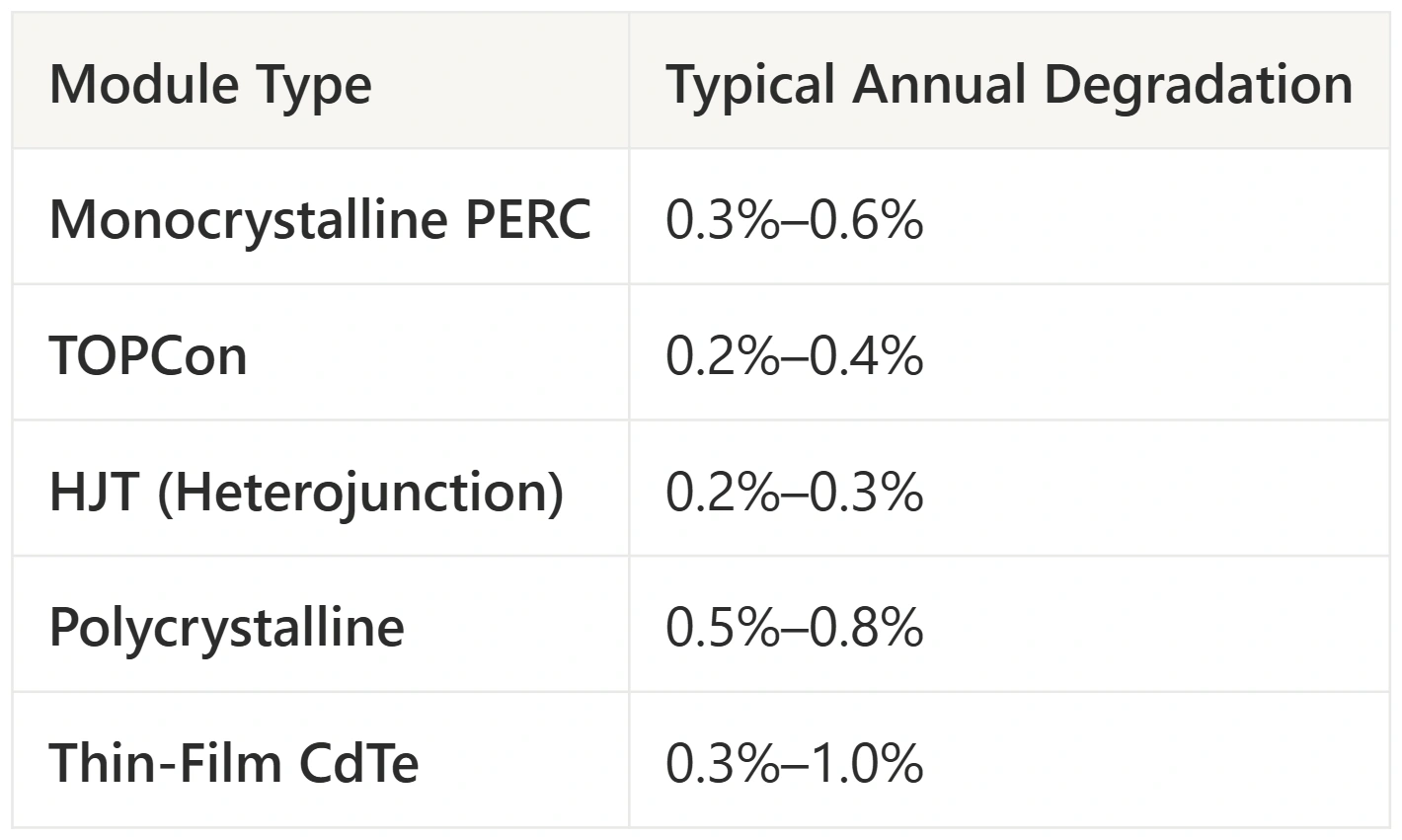

Degradation Rates by Panel Technology

Different cell architectures and materials degrade at different rates. The table below summarizes typical values based on field data and manufacturer warranties:

Technology	First-Year Loss (LID)	Annual Degradation Rate	Output at Year 25	Notes
Monocrystalline PERC	1.5–2.0%	0.40–0.55%	87–90%	Dominant residential technology
N-type TOPCon	0.5–1.0%	0.30–0.40%	90–93%	Near-zero LID, growing market share
N-type HJT	0.5–1.0%	0.25–0.35%	91–94%	Lowest degradation rates available
Polycrystalline	2.0–3.0%	0.50–0.70%	83–88%	Declining market share, higher losses
Thin-Film (CdTe)	1.0–3.0%	0.50–0.80%	80–87%	Higher initial loss, stabilizes over time
Thin-Film (CIGS)	1.0–2.0%	0.50–0.70%	83–88%	Performance similar to polycrystalline

Degradation Rate Formula

The standard formula for calculating a solar panel’s output in any given year accounts for both the one-time first-year loss and the steady annual degradation:

Year-N Power Output

Power(Year N) = Nameplate Rating × (1 − First Year Loss) × (1 − Annual Degradation Rate)^(N − 1)

Example calculation: A 400W panel with 2% first-year LID and 0.50% annual degradation:

Year 1: 400 × (1 − 0.02) = 392W
Year 10: 400 × 0.98 × (1 − 0.005)^9 = 374.7W
Year 25: 400 × 0.98 × (1 − 0.005)^24 = 347.3W (86.8% of nameplate)

For system-level energy production, multiply the degraded panel wattage by the number of panels and the site-specific capacity factor (accounting for irradiance, shading, temperature, and other losses). The generation and financial tool applies this calculation automatically for every year in the analysis period.

Performance Warranty Guarantee

Most tier-1 manufacturers now guarantee 84.8–87.4% of rated power at Year 25, and some premium N-type panels guarantee up to 92% at Year 30. If measured output falls below the warranty threshold, the manufacturer is obligated to repair, replace, or compensate. Always verify the specific warranty terms — some guarantee linear degradation (a fixed percentage per year), while others only guarantee endpoint values at Year 10, 25, and 30.

Practical Guidance

Degradation rate considerations differ depending on your role in the solar project lifecycle:

Use module-specific degradation data. Pull the degradation rate from the manufacturer’s datasheet and warranty document, not a generic default. Input the correct value in your solar design software to produce accurate 25-year production curves.
Separate LID from the annual rate. Model the first-year LID loss as a distinct step. Applying LID and annual degradation together in Year 1 double-counts the initial drop and underestimates lifetime production.
Oversize for end-of-life targets. If the customer needs to offset 100% of consumption at Year 25, design for ~112% production in Year 1 (assuming 0.50% annual degradation). This accounts for the cumulative loss without oversizing so much that net metering limits are exceeded early on.
Compare technologies in financial models. Run the same project through the generation and financial tool with different panel technologies. The lifetime production difference between a 0.55%/year and 0.35%/year panel on a 10 kW system can exceed 5,000 kWh over 25 years.

Prevent installation-induced micro-cracking. Rough handling, stepping on panels, and improper stacking accelerate mechanical degradation. Use manufacturer-recommended handling procedures and inspect each module before mounting.
Ground correctly to prevent PID. Follow the manufacturer’s grounding specifications exactly. Incorrect polarity grounding is the primary cause of PID in field installations, and the resulting power loss can reach 30% within a few years.
Establish a commissioning baseline. Record initial power output with an I-V curve tracer or monitoring system at commissioning. Without a baseline, there is no way to quantify degradation or make a warranty claim if output drops faster than expected.
Schedule periodic thermal inspections. Infrared imaging at 1-year and 5-year intervals can identify hotspots from accelerated cell degradation. Early detection allows warranty replacement before the problem spreads to adjacent cells.

Frame degradation as minimal and predictable. Tell customers their panels will still produce 87–93% of rated power after 25 years. This is a smaller decline than most appliances experience and far better than what customers typically assume.
Use degradation to upsell premium panels. Show the 25-year production difference in concrete dollar terms. A 0.20%/year difference in degradation rate on a 10 kW system translates to roughly 5,000 additional kWh, worth $1,000–$1,500 at typical retail rates.
Explain the performance warranty. Most customers don’t know their panels come with a 25–30 year guarantee on output. Highlighting this warranty reduces perceived risk and builds confidence in the investment.
Show year-by-year projections. Generate a 25-year savings table from the generation and financial tool that shows how rising electricity rates more than offset the production decline, so annual dollar savings typically increase even as kWh output decreases.

Model Long-Term Production with Accurate Degradation Rates

SurgePV applies manufacturer-specific degradation curves to every production estimate, giving your customers accurate 25-year savings projections backed by real panel data.

Book a Demo

No commitment required · 20 minutes · Live project walkthrough

Factors That Accelerate Degradation

Not all panels degrade at the same rate in the field. Environmental and installation conditions can push actual degradation above or below the manufacturer’s rated value:

Factor	Effect on Degradation	Magnitude
High ambient temperature	Accelerates thermal cycling damage and encapsulant aging	+0.05–0.15%/year in hot climates
High humidity	Increases moisture ingress risk, corrodes interconnects	+0.05–0.20%/year in tropical regions
Salt air (coastal)	Corrodes frame, junction box, and cell interconnects	+0.05–0.10%/year within 1 km of coast
Poor ventilation	Raises module temperature, increasing thermal stress	+0.05–0.10%/year with restricted airflow
Installation damage	Micro-cracks from handling expand under thermal cycling	Variable, can exceed 1%/year for damaged cells
Incorrect grounding	Triggers PID, especially in high-voltage string configurations	5–30% total loss over 3–5 years if uncorrected

Climate Matters

NREL field studies show that panels in hot, humid climates (e.g., Florida, Southeast Asia) degrade 0.1–0.2% faster per year than identical panels in cool, dry climates (e.g., Colorado, Northern Europe). When designing systems in high-stress environments, use the upper end of the manufacturer’s degradation range in your production models rather than the headline figure.

Sources & References

Frequently Asked Questions

What is a normal degradation rate for solar panels?

A normal annual degradation rate for modern crystalline silicon solar panels is 0.25–0.70% per year, depending on the technology. Standard monocrystalline PERC panels typically degrade at 0.40–0.55% per year, while premium N-type panels (TOPCon and HJT) achieve 0.25–0.40% per year. There is also a separate first-year loss of 1–3% from Light-Induced Degradation in p-type cells. After 25 years at 0.50% annual degradation, a panel still produces roughly 88% of its original rated output.

How does degradation rate affect solar panel warranties?

Manufacturers issue performance warranties that guarantee a minimum power output at specific milestones, typically 90% at Year 10 and 80–87.4% at Year 25 or 30. These warranty thresholds imply a maximum allowable degradation rate. If a panel’s measured output falls below the warranty curve, the manufacturer must repair, replace, or provide financial compensation. Some warranties are “linear,” guaranteeing a fixed maximum decline each year, while others only guarantee endpoint values. Linear warranties offer stronger protection because they prevent sudden drops between checkpoints.

Can you reduce or slow solar panel degradation?

You cannot eliminate degradation, but you can minimize it. Choose N-type cell technology (TOPCon or HJT) for inherently lower degradation rates. Ensure proper system grounding to prevent PID. Handle panels carefully during installation to avoid micro-cracking. Maintain adequate ventilation behind the array to reduce operating temperatures. Keep panels clean to prevent hotspot formation from localized shading. Periodic monitoring and thermal inspections catch accelerated degradation early, allowing warranty claims before cumulative losses become significant.
