What Is Equipment Datasheets? Definition & Guide

Key Takeaways

A solar panel datasheet is the manufacturer’s official specification document listing electrical ratings (Voc, Isc, Vmp, Imp), mechanical dimensions, temperature coefficients, and certification marks for a specific module model
Equipment datasheets exist for every major solar component category: panels, inverters, batteries, and racking systems — each with parameters specific to that equipment type
Solar equipment specifications listed under STC (Standard Test Conditions: 1000 W/m², 25°C cell temperature, AM1.5) rarely match real-world field performance, making NOCT and PTC ratings more useful for production estimates
Solar design software imports datasheet parameters directly into simulation engines, eliminating manual data entry errors that cause permit rejections and failed inspections
Datasheets are legal documents — the specifications they contain define warranty terms, code compliance, and AHJ permit approval requirements
Understanding how to read a solar panel datasheet is a core skill for designers, salespeople, and inspectors, since every design decision traces back to a datasheet value

What Are Equipment Datasheets?

An equipment datasheet is a manufacturer-published document that defines the complete technical specifications for a piece of solar equipment. For a solar panel, the datasheet includes electrical performance ratings, physical dimensions, weight, temperature behavior, mechanical load limits, certifications, and warranty terms. For inverters, batteries, and racking, the datasheet covers the parameters specific to that component type.

Every solar panel datasheet follows a standardized format because the testing standards (IEC 61215, UL 61730) require specific parameters to be reported. This consistency makes it possible for solar design software to parse and import datasheet values directly into simulation models and string sizing calculations.

A solar panel datasheet is the single source of truth for system design. Every string length calculation, every production estimate, every structural load check, and every permit application references values that originate from a datasheet. If the datasheet value is wrong or misread, the entire design chain inherits that error.

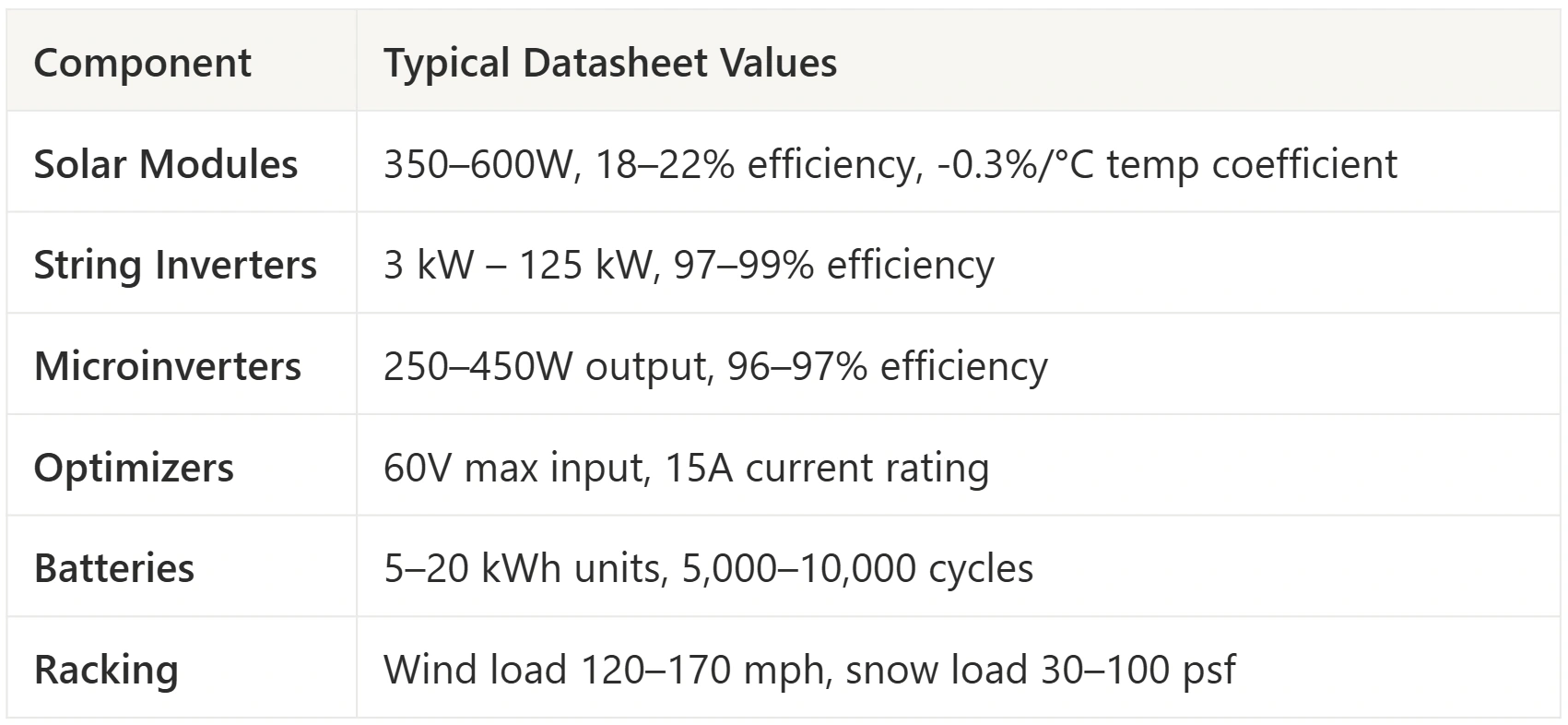

Types of Equipment Datasheets

Panel Datasheets

List STC ratings (Pmax, Voc, Isc, Vmp, Imp), NOCT performance values, temperature coefficients for voltage, current, and power, module efficiency, dimensions (length × width × depth), weight, cell type and count, mechanical load ratings (front/rear, Pa), connector type, bypass diode configuration, and certifications (IEC 61215, UL 61730, CEC listing). Also include I-V curve graphs and power tolerance ranges (typically 0 to +5W).

Inverter Datasheets

Specify maximum DC input voltage, MPPT voltage range, number of MPPT channels, maximum input current per MPPT, AC output power rating, CEC weighted efficiency, European efficiency, operating temperature range, communication interfaces (RS-485, WiFi, Ethernet), enclosure rating (IP65/IP67), and grid support functions (reactive power, ramp rate, frequency ride-through). String inverter datasheets also include max DC/AC ratio recommendations.

Battery Datasheets

Report total and usable energy capacity (kWh), continuous and peak power output (kW), round-trip efficiency percentage, maximum charge/discharge C-rate, cycle life at specified depth of discharge (e.g., 6,000 cycles at 80% DoD), chemistry type (LFP or NMC), operating temperature range, dimensions and weight, compatible inverter models, and UL 9540A fire safety certification status. Degradation curves showing capacity retention over cycles are included on most modern datasheets.

Racking Datasheets

Define rail profiles and lengths, clamp compatibility by panel frame thickness range, attachment point spacing requirements, wind uplift and snow load ratings per ASCE 7, compatible roof types (composition shingle, standing seam metal, tile, flat membrane), maximum tilt angle for adjustable systems, corrosion resistance rating, and structural engineering letters. Ground-mount datasheets add foundation specifications and maximum span tables.

How to Read a Solar Panel Datasheet

Understanding how to read a solar panel datasheet starts with knowing what each parameter means and how it affects your system design. The table below maps every key datasheet parameter to its design application and flags the misunderstanding that trips up most designers.

Datasheet Parameter	What It Means	How It’s Used in Design	Common Misunderstanding
Pmax (STC)	Maximum power output at 1000 W/m², 25°C cell temp, AM1.5 spectrum	System size labeling, nameplate capacity	Pmax is a lab rating — panels produce this wattage only under perfect test conditions, not in the field
Voc (Open-Circuit Voltage)	Maximum voltage when no current flows, at STC	String sizing — total string Voc must stay below inverter max input voltage at coldest expected temperature	Designers forget to apply temperature correction; cold morning Voc can exceed inverter limits
Isc (Short-Circuit Current)	Maximum current at zero voltage, at STC	Wire sizing, fuse selection, overcurrent protection per NEC 690	Isc is not operating current — the panel delivers less current at its maximum power point
Vmp / Imp	Voltage and current at maximum power point	MPPT range validation — Vmp × number of panels must fall within inverter MPPT window	Vmp shifts with temperature; summer heat drops Vmp below MPPT minimum on short strings
Temperature Coefficient (Pmax)	Percentage power change per °C above/below 25°C	Production modeling — adjusts output for actual operating temperatures	A coefficient of -0.34%/°C means a panel at 65°C cell temp loses ~13.6% of rated power
Temperature Coefficient (Voc)	Voltage change per °C	Cold-temperature string voltage calculations for NEC compliance	This is the most safety-critical datasheet value — ignoring it causes code violations
NOCT Rating	Power output at 800 W/m², 20°C ambient, 1 m/s wind	More realistic production estimate than STC	NOCT values are typically 10-15% lower than STC — use NOCT for customer-facing estimates
Module Efficiency	Percentage of sunlight converted to electricity	Useful for comparing panels when roof area is limited	Higher efficiency doesn’t always mean better value — cost-per-watt matters more in most projects
Mechanical Load (Front/Rear)	Maximum pressure the panel withstands (in Pascals)	Structural compliance — must meet local wind and snow loads per ASCE 7	Front load (snow) and rear load (wind uplift) ratings are different; check both
Power Tolerance	Range around Pmax (e.g., 0 to +5W)	Affects actual delivered power vs. nameplate	Negative tolerance means some panels ship below rated power — avoid panels with negative tolerance

The Real-World Power Formula

The STC rating on a solar panel datasheet represents ideal laboratory conditions. In the field, irradiance varies by hour, season, and weather, and cell temperatures routinely reach 50-70°C in summer. The following formula calculates actual panel output using datasheet values:

Real-World Power Calculation

Real-World Power = STC Rating × (Irradiance / 1000) × (1 + Temp Coefficient × (Cell Temp − 25°C))

Example: A 440W panel with a temperature coefficient of -0.34%/°C, operating at 850 W/m² irradiance and 55°C cell temperature:

440 × (850/1000) × (1 + (-0.0034) × (55 − 25)) = 440 × 0.85 × (1 − 0.102) = 440 × 0.85 × 0.898 = 335.7W

That’s 76.3% of the STC rating — a realistic midday summer output in a warm climate. This is why datasheet STC ratings alone overestimate field production.

STC vs. Real-World Conditions

Solar panels almost never operate at STC conditions in the field. STC assumes 1000 W/m² irradiance, 25°C cell temperature, and AM1.5 spectrum. On a hot summer afternoon, cell temperatures reach 55-70°C, reducing output by 10-15%. On overcast days, irradiance drops to 200-400 W/m². On the coldest winter mornings, voltage spikes above STC Voc. Every datasheet value is a snapshot at one specific set of conditions. Good solar design software applies temperature corrections, irradiance data, and loss factors automatically to produce annual production estimates that account for these real-world variations.

Practical Guidance

Always use the temperature coefficient of Voc for string sizing. Calculate the maximum string voltage at the lowest expected ambient temperature for your project location. Use the ASHRAE extreme minimum temperature, not the average winter low. A string that passes at -10°C may exceed inverter limits at -25°C.
Cross-check PTC ratings against CEC listings. The CEC independently tests panels and publishes PTC (PVUSA Test Conditions) ratings that are typically 10-12% lower than STC. If the CEC PTC rating differs from the manufacturer’s claimed PTC by more than 2%, investigate before using that panel in a design.
Verify mechanical load ratings against local code requirements. A panel rated for 2400 Pa front load may not meet requirements in high-snow-load jurisdictions. Check the datasheet’s mechanical load ratings against the ASCE 7 design loads for your specific project location, including both wind and snow.
Use NOCT values for production estimates, STC values for string sizing. These serve different purposes. STC gives you worst-case voltage (cold conditions). NOCT gives you a more realistic power output baseline. Mixing them up produces either unsafe designs or inaccurate production forecasts.

Keep a copy of every datasheet on site during inspection. AHJs frequently ask for solar equipment specifications during final inspection. Have printed or digital copies of the panel, inverter, and racking datasheets ready. Some jurisdictions require datasheets to be physically attached to the permit application.
Confirm the label on the delivered panel matches the datasheet. Panels from the same manufacturer can have multiple SKUs with slightly different specs. Check that the model number on the panel’s rear label matches the datasheet used in the design. A 5V difference in Voc between SKUs can invalidate the string design.
Follow torque specs from the racking datasheet. Over-torquing mounting hardware cracks panel frames and voids warranties. Under-torquing causes panels to shift in high winds. The racking datasheet specifies exact torque values for mid-clamps, end-clamps, and lag bolts — use a torque wrench, not a drill.
Check connector compatibility on the datasheet. Not all MC4-style connectors are interchangeable. The panel datasheet specifies the exact connector brand and model. Mixing connector brands (e.g., MC4 with MC4-EVO2) can cause resistance hotspots and is a code violation per NEC 690.33.

Use datasheet efficiency to explain panel quality to customers. A 22.5% efficient panel converts more sunlight per square foot than a 20.0% panel. On a small roof where space is limited, this difference can mean 2-3 additional panels’ worth of production from the same area. Pull the efficiency number directly from the solar panel datasheet.
Present the warranty section of the datasheet in proposals. A 25-year product warranty with 0.40%/year degradation guarantees 87% output at year 25. Compare that to a budget panel with 0.55%/year degradation (86.25% at year 25). Over 25 years on a 10kW system, that’s hundreds of kWh difference. Use solar proposals to present this data clearly.
Reference the datasheet when customers ask about durability. Point to specific numbers: “This panel is tested to withstand 5400 Pa front load and 2400 Pa rear load per IEC 61215. It’s rated for 25mm hailstones at 23 m/s.” Specific test results from the datasheet are more convincing than generic claims about quality.
Know the difference between product and performance warranties. The datasheet lists both. Product warranty covers manufacturing defects (typically 12-25 years). Performance warranty guarantees minimum output over time (typically 25-30 years at 80-87% of rated power). These are separate protections and customers often confuse them.
