What Is Grid? Definition & Guide

Key Takeaways

The electrical grid is a multi-layered system spanning generation, transmission (high voltage), and distribution (medium/low voltage) that delivers power to every connected building
Solar PV connects to the grid primarily at the distribution level, turning consumers into producers and creating two-way power flow on networks originally designed for one-way delivery
Grid hosting capacity determines how much solar a feeder can accept before voltage or thermal violations occur — a critical constraint for installers and designers
The “duck curve” describes the midday solar overgeneration that depresses net demand, creating steep ramping requirements for grid operators in the late afternoon
Smart grid technologies (advanced metering, automated switching, distributed energy resource management systems) are enabling higher solar penetration levels
Understanding grid interconnection requirements, voltage levels, and local feeder constraints is necessary for designing code-compliant solar systems

What Is the Grid?

The electrical grid (or power grid) is the interconnected infrastructure that generates, transmits, and distributes electricity from power plants to end consumers. It consists of generating stations, high-voltage transmission lines, substations, transformers, and local distribution networks that together form one of the most complex machines ever built.

For solar professionals, the grid is both the destination for exported solar energy and the backup source when solar production falls short. Every grid-tied solar installation must interconnect with this system, which means understanding how the grid works is not optional — it is foundational to solar design software workflows, interconnection applications, and financial modeling.

The modern electrical grid is undergoing its most significant transformation since electrification began over a century ago. Distributed solar, battery storage, electric vehicles, and smart inverters are converting a passive, one-way delivery network into an active, bidirectional energy platform. Solar installers are at the center of this shift.

Types of Grid Infrastructure

Bulk Power

Transmission Grid

High-voltage network (115 kV to 765 kV) that moves large quantities of electricity from centralized power plants to regional substations. Utility-scale solar farms above 20 MW typically interconnect at the transmission level. Managed by regional transmission organizations (RTOs) and independent system operators (ISOs).

Solar Connection Point

Distribution Grid

Medium- and low-voltage network (4 kV to 35 kV primary, 120/240 V secondary) that delivers electricity from substations to homes and businesses. Residential and commercial solar systems connect here. This is where most solar installers interact with the grid daily.

Localized

Microgrid

A self-contained energy system with local generation (solar, batteries, generators), distribution, and loads that can operate connected to the main grid or independently (“islanded”). Common at hospitals, military bases, and campuses. Provides resilience during grid outages.

Digital Layer

Smart Grid

The digital communication and control layer overlaid on physical grid infrastructure. Includes advanced metering infrastructure (AMI), distribution automation, DERMS (distributed energy resource management systems), and real-time monitoring. Enables higher solar penetration by managing two-way power flows dynamically.

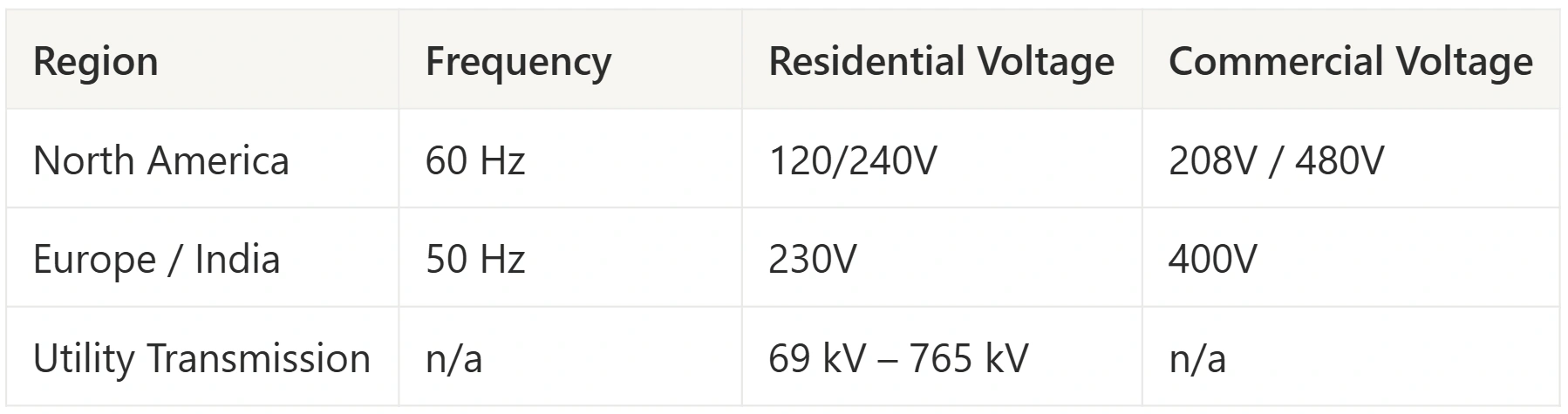

Grid Levels and Solar Connection Points

Understanding where solar connects to the grid determines interconnection requirements, equipment specifications, and permitting complexity.

Grid Level	Voltage Range	Function	Solar Connection Point	Key Equipment
Generation	11–25 kV (generator output)	Produce electricity from fuel, nuclear, hydro, wind, or solar	Utility-scale solar farms (> 20 MW)	Generators, step-up transformers
Transmission	115–765 kV	Bulk power transfer over long distances	Large solar farms (5–20 MW)	Transmission towers, HV switchgear, FACTS devices
Sub-Transmission	34.5–115 kV	Regional distribution to major substations	Large commercial/community solar (1–5 MW)	Substations, voltage regulators
Primary Distribution	4–35 kV	Local distribution to neighborhoods and commercial areas	Commercial solar (100 kW–1 MW)	Padmount transformers, reclosers, fuses
Secondary Distribution	120/240 V (residential), 208/480 V (commercial)	Final delivery to buildings	Residential and small commercial solar (3–100 kW)	Service transformers, meters, panelboards

Grid Hosting Capacity

Core Formula

Grid Hosting Capacity = Maximum DER Penetration Before Voltage or Thermal Violations Occur on a Feeder

Hosting capacity is the maximum amount of distributed generation that a distribution feeder can accommodate without triggering voltage regulation violations, thermal overloads, or protection system miscoordination. Utilities calculate hosting capacity for each feeder and increasingly publish interactive maps that solar professionals can reference during project development.

Key factors that determine hosting capacity:

Feeder impedance and length. Longer, higher-impedance feeders experience greater voltage rise from solar injection, reducing hosting capacity.
Existing DER penetration. Feeders already serving multiple solar installations have less remaining capacity.
Minimum daytime load. Hosting capacity is typically limited by the lightest load period (weekends, holidays), when solar production most easily exceeds local consumption.
Transformer rating. The distribution transformer serving a cluster of homes has a thermal rating that limits total reverse power flow.
Voltage regulation equipment. Feeders with load tap changers, voltage regulators, and capacitor banks can accommodate more DER before violations occur.

The Duck Curve

The “duck curve,” first identified by CAISO (California Independent System Operator) in 2013, describes the grid management problem created by high solar penetration. During midday hours, abundant solar generation suppresses net demand on the grid to very low levels. As the sun sets, solar output drops rapidly while evening demand rises, creating a steep ramp that requires fast-responding dispatchable generation (typically natural gas turbines) to fill. The resulting load shape — flat morning, deep midday dip, steep evening ramp — resembles a duck in profile. Battery storage, demand response, and west-facing solar arrays are the primary tools for flattening the duck curve.

How Solar Connects to the Grid

The process of connecting a solar PV system to the electrical grid involves several technical and administrative steps. For solar installers, this is one of the most common workflow bottlenecks.

Interconnection Application

Submit an application to the local utility describing the system size, inverter specifications, and point of interconnection. Many utilities offer expedited review for systems under 25 kW.

Engineering Review

The utility reviews the application against feeder hosting capacity, transformer ratings, and protection coordination requirements. Systems that exceed hosting capacity may trigger a distribution upgrade study.

Approval and Agreement

Once approved, the utility issues an interconnection agreement specifying technical requirements, metering arrangements, and any required grid upgrades. The solar installer proceeds with system installation.

Inspection and Permission to Operate

After installation, the local AHJ inspects the system and the utility installs or reprograms the bi-directional meter. The utility then grants Permission to Operate (PTO), allowing the system to export power to the grid.

Grid Impact on System Design

The grid’s characteristics directly affect how solar professionals should design and propose systems. Ignoring grid constraints leads to interconnection delays, change orders, and unhappy customers.

Design Factor	Grid Consideration	Design Response
System size	Feeder hosting capacity limits	Check utility hosting capacity maps before sizing; use solar design software to validate
Inverter selection	IEEE 1547-2018 smart inverter requirements	Specify inverters with volt-VAR, volt-watt, and frequency ride-through capabilities
Export limits	Some utilities cap export to a percentage of service transformer rating	Size system for self-consumption or add battery storage to absorb excess
Voltage at POI	Service voltage must stay within ANSI C84.1 range (±5%)	Model voltage rise from solar injection on the secondary conductor
Protection	Anti-islanding and rapid shutdown (NEC 690.12)	Ensure inverters are UL 1741-SA certified and rapid shutdown compliant

Pro Tip

Before submitting any commercial solar interconnection application, request the utility’s hosting capacity data for the specific feeder. Systems that exceed available capacity can trigger upgrade studies costing $10,000–$50,000 and adding 3–6 months to the project timeline. Catching this early saves both time and money.

Practical Guidance

Check hosting capacity before finalizing designs. Pull the utility’s hosting capacity map for the project address. If the feeder is near capacity, consider reducing system size or adding storage to limit exports.
Model grid export profiles. Use a generation and financial tool to simulate hourly production against the customer’s load profile. This reveals how much energy flows to the grid and when.
Specify IEEE 1547-2018 compliant inverters. Most utilities now require smart inverter functions (volt-VAR, frequency ride-through) for new interconnections. Non-compliant inverters will be rejected.
Account for voltage rise on long service conductors. Homes at the end of a long secondary run are more susceptible to voltage violations from solar export. Model conductor impedance and length.

Submit interconnection applications early. Utility review timelines range from 5 business days (small residential) to 6+ months (large commercial). File the application as soon as the design is finalized.
Verify the service panel has capacity. The main breaker and bus rating must accommodate the solar breaker per NEC 705.12. A 200A panel with a 200A main breaker cannot accept a solar breaker without a bus rating evaluation or panel upgrade.
Coordinate meter installation with the utility. Grid-tied systems require a bi-directional meter. Schedule the meter swap or upgrade with the utility to align with your PTO timeline.
Test anti-islanding before commissioning. Verify that the inverter disconnects within the required 2-second window during a grid outage simulation. Document the test results for the AHJ inspection.

Explain grid interconnection timelines upfront. Set customer expectations that the process includes utility review, meter installation, and PTO — which can add weeks to months after physical installation is complete.
Position grid independence as a value driver. Pairing solar with battery storage gives customers backup power during grid outages, a feature that resonates strongly in areas with unreliable grid service.
Use accurate grid export modeling in proposals. Show customers exactly how much energy their system will export to the grid vs. consume on-site, with corresponding financial impacts under their utility’s rate structure.
Address rate escalation. Grid electricity prices have risen 2–4% annually in most U.S. markets. Show customers how their solar savings grow over time as grid rates increase while their solar cost stays fixed.

Design Grid-Compatible Solar Systems

SurgePV validates system designs against grid interconnection requirements, models export profiles, and generates accurate financial projections — all in one platform.

Book a Demo

No commitment required · 20 minutes · Live project walkthrough

The Grid’s Future with Solar

The power grid is evolving rapidly to accommodate increasing solar penetration. Several trends are reshaping how solar connects to and interacts with the grid:

Virtual power plants (VPPs). Aggregations of distributed solar and battery systems that operate as a single controllable resource for the grid operator. VPPs can provide peak capacity, frequency regulation, and voltage support — creating new revenue streams for solar-plus-storage owners.

Grid-forming inverters. Next-generation inverters that can establish grid voltage and frequency independently, rather than simply following the grid signal. These are critical for grids with very high renewable penetration where synchronous generators (which traditionally set frequency) are being displaced.

Distribution-level energy markets. Emerging platforms that allow DER owners to sell energy services (capacity, voltage support, congestion relief) directly to the distribution utility. These markets assign economic value to grid services that solar-plus-storage systems already provide.

Bidirectional EV charging (V2G). Electric vehicles parked at homes and workplaces with bidirectional chargers can act as distributed batteries, absorbing midday solar and discharging during evening peaks. This technology directly addresses the duck curve problem.

Sources & Further Reading

Frequently Asked Questions

How does solar energy connect to the electrical grid?

Solar PV systems connect to the power grid through an inverter that converts DC electricity from the panels into AC electricity matching the grid’s voltage and frequency. The system ties into the building’s electrical panel, which connects to the utility’s distribution grid through the service meter. Excess solar production flows back through the meter to the grid, and the building draws from the grid when solar production is insufficient. The utility must approve the interconnection and install a bi-directional meter before the system can legally export power.

What happens to solar power when the grid goes down?

Standard grid-tied solar systems shut down automatically during a grid outage. This is a safety requirement called anti-islanding protection — it prevents solar systems from energizing power lines that utility workers may be repairing. To maintain power during outages, you need either a battery storage system with islanding capability or a hybrid inverter that can form its own microgrid. These systems disconnect from the utility grid and power designated circuits from the battery and solar panels independently.

Can too much solar energy overload the grid?

Yes, at the local level. When too many solar systems on the same distribution feeder export power simultaneously, it can cause voltage to rise above acceptable limits (ANSI C84.1 standard) or exceed the thermal capacity of transformers and conductors. This is why utilities calculate hosting capacity for each feeder. Solutions include smart inverters that absorb reactive power (volt-VAR mode), battery storage to absorb excess production, export limiting, and distribution grid upgrades. At the bulk transmission level, high solar penetration creates the “duck curve” ramping problem, managed through storage, demand response, and flexible generation.
