Key Takeaways
- A grid-forming inverter creates its own voltage and frequency reference, acting as a voltage source rather than a current source
- Required for standalone microgrids, islanded systems, and grids with high renewable penetration
- Differs from grid-following inverters, which rely on an existing grid signal to synchronize
- Provides synthetic inertia and frequency support that traditional synchronous generators once supplied
- Increasingly mandated by grid codes in regions transitioning away from fossil-fuel baseload generation
- Solar designers must account for grid-forming capability when specifying inverters for resilient or off-grid installations
What Is a Grid-Forming Inverter?
A grid-forming inverter is a power electronic device that independently establishes voltage magnitude and frequency on an AC network. Unlike conventional grid-following inverters — which inject current by tracking an existing grid signal — a grid-forming inverter operates as a voltage source. It can create a stable AC waveform from scratch, making it capable of energizing a dead bus, operating in island mode, and maintaining power quality without any external reference.
This capability is becoming critical as power systems retire synchronous generators (coal, gas, nuclear) that historically provided voltage and frequency stability. With solar and wind supplying larger shares of generation, grid-forming inverters fill the stability gap that solar design software must now account for in modern system architectures.
Grid-forming inverters are the technical bridge between today’s grid-following solar fleet and tomorrow’s inverter-dominated power systems. Without them, grids with more than 60–70% instantaneous renewable penetration face frequency stability risks.
How Grid-Forming Inverters Work
Grid-forming inverters use sophisticated control algorithms to regulate voltage and frequency independently. Here is how the process works from startup to steady-state operation:
Voltage Reference Generation
The inverter’s control system generates an internal voltage reference signal with a defined magnitude (e.g., 230V or 400V) and frequency (50 Hz or 60 Hz), independent of any external grid.
PWM Switching
Power semiconductor switches (IGBTs or SiC MOSFETs) rapidly switch DC input from solar panels or batteries, producing a pulse-width-modulated AC waveform that tracks the internal reference.
Output Filtering
LC or LCL filters smooth the switched output into a clean sinusoidal voltage waveform suitable for connected loads and downstream equipment.
Droop Control / Virtual Synchronous Machine
The inverter adjusts frequency and voltage based on active and reactive power demand using droop curves — mimicking the natural behavior of synchronous generators to share load with parallel sources.
Load Balancing and Synchronization
When operating in parallel with other grid-forming or grid-following inverters, the unit continuously adjusts its output to maintain system stability, voltage balance, and frequency within tolerances.
Seamless Transition
Advanced grid-forming inverters transition between grid-connected and islanded modes without interruption, maintaining power to critical loads during grid outages.
f = f₀ − k_p × (P − P₀)Where f₀ is the nominal frequency, k_p is the frequency droop coefficient, P is the measured active power output, and P₀ is the rated active power. A typical droop setting of 2–5% means a full-load change produces a 1–3 Hz frequency deviation.
Types of Grid-Forming Inverters
Grid-forming inverters use different control strategies depending on the application. Understanding these types helps solar software professionals select the right inverter for each project.
Droop-Controlled
Uses power-frequency and reactive power-voltage droop curves to share load among multiple parallel units. Simple, proven, and widely deployed in microgrids and off-grid solar-plus-storage systems.
Virtual Synchronous Machine (VSM)
Emulates the swing equation of a synchronous generator, providing synthetic inertia and damping. Preferred for utility-scale applications where grid codes require inertial response from inverter-based resources.
Virtual Oscillator Control (VOC)
Uses nonlinear oscillator dynamics to achieve synchronization without explicit communication between units. Promising for large numbers of distributed inverters that must self-organize on a shared network.
Dual-Mode (Grid-Forming / Grid-Following)
Operates as grid-following when a strong grid is present and switches to grid-forming during islanding events. Offers flexibility for behind-the-meter solar-plus-storage installations that need both modes.
Not every project needs a grid-forming inverter. For standard grid-tied residential solar with no battery backup, a grid-following inverter is sufficient and less expensive. Grid-forming capability becomes necessary when the system must island, when it feeds a microgrid, or when the local grid has low fault-level (weak grid) conditions.

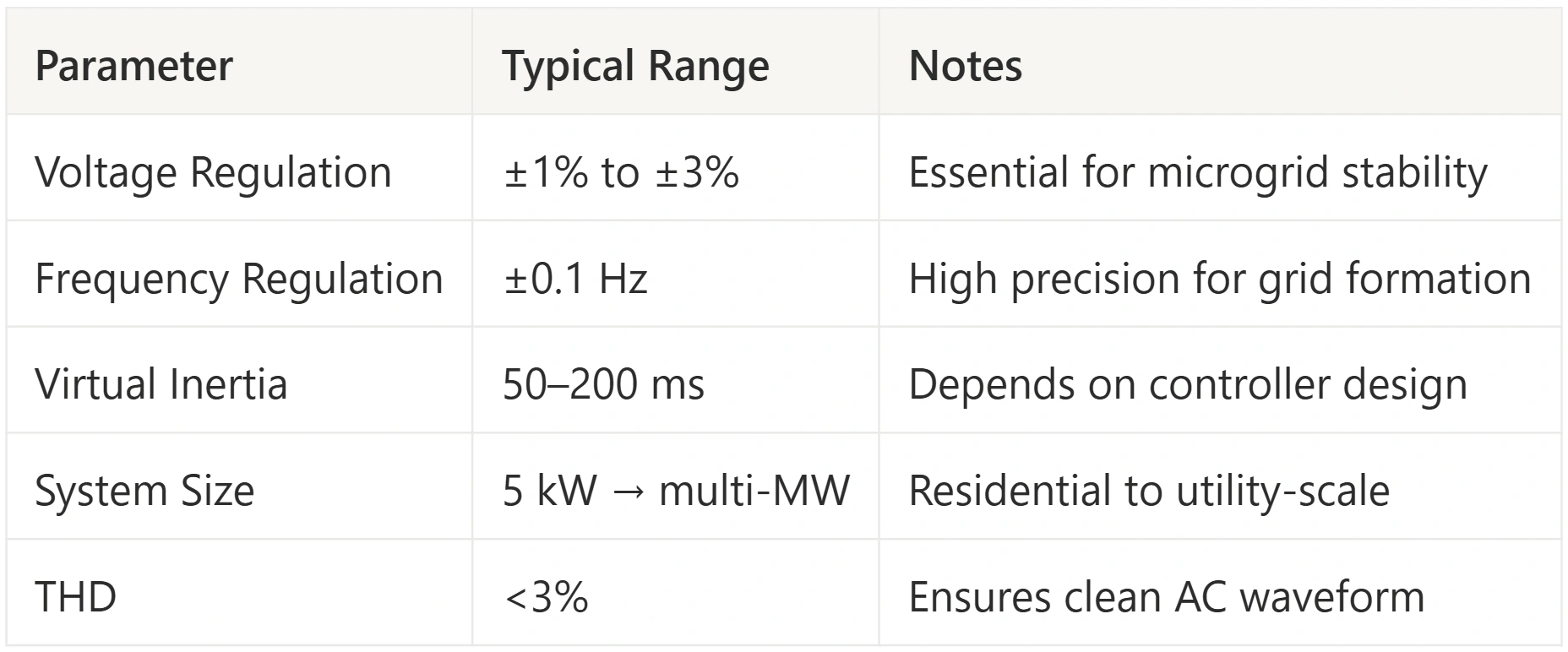

Key Metrics & Calculations
Specifying a grid-forming inverter requires understanding several performance parameters that differ from standard grid-following specifications:
| Metric | Unit | What It Measures |
|---|---|---|
| Rated Apparent Power | kVA | Maximum combined real and reactive power output |
| Frequency Droop | % | Frequency deviation per unit of active power change |
| Voltage Droop | % | Voltage deviation per unit of reactive power change |
| Synthetic Inertia Constant (H) | seconds | Stored energy equivalent the inverter emulates (typically 2–8 s) |
| Rate of Change of Frequency (RoCoF) | Hz/s | Maximum tolerable frequency rate of change before protection trips |
| Black-Start Capability | Yes/No | Ability to energize a dead network without external supply |
| Transition Time | ms | Duration of grid-connected to islanded mode switchover |
P_inertia = 2 × H × S_rated × (df/dt) / f₀Where H is the synthetic inertia constant, S_rated is the inverter’s rated apparent power, df/dt is the rate of frequency change, and f₀ is nominal frequency. A 100 kVA inverter with H = 5 s responds with approximately 33 kW of inertial power for a RoCoF of 1 Hz/s at 50 Hz.
Practical Guidance
Grid-forming inverter selection affects system resilience, grid compliance, and project economics. Here is role-specific guidance for solar professionals:
- Assess grid strength first. Measure or request the short-circuit ratio (SCR) at the point of connection. An SCR below 3 typically requires grid-forming capability to avoid voltage flicker and harmonic issues.
- Size the battery bank for grid-forming duty. Grid-forming inverters need a DC-coupled energy source (battery) to provide instantaneous power response. Size batteries to handle the expected load step and inertial demand, not just energy storage.
- Model islanding scenarios. Use solar design software with shadow analysis to verify that solar production plus battery can sustain critical loads during islanded operation across seasonal variations.
- Coordinate droop settings across units. When deploying multiple grid-forming inverters in a microgrid, harmonize droop slopes to ensure proportional load sharing and prevent circulating currents between units.
- Verify firmware supports grid-forming mode. Some inverter models ship with grid-following firmware by default. Confirm the correct firmware version is loaded and grid-forming parameters are configured before commissioning.
- Install proper anti-islanding protection. Even grid-forming inverters connected to the utility grid need compliant anti-islanding relays (IEEE 1547 or IEC 62116) to disconnect during upstream faults and protect utility workers.
- Test black-start sequence. Perform a full black-start test during commissioning — disconnect the grid feed, verify the inverter energizes the local bus, and confirm all critical loads restart correctly.
- Document transition timing. Measure and record the actual grid-to-island and island-to-grid transition times. Compare against the specified values to confirm the installation meets design requirements.
- Quantify the value of resilience. Grid-forming inverters cost 15–30% more than grid-following models. Justify the premium by calculating the customer’s cost of downtime — commercial facilities often lose $5,000–50,000+ per outage event.
- Explain the difference simply. Tell customers: “A grid-following inverter needs the utility grid to work. A grid-forming inverter can run your building on its own during a power outage.” Avoid jargon about droop curves and inertia.
- Highlight future-proofing. Grid codes worldwide are tightening requirements for inverter-based resources. Installing grid-forming capability now avoids costly retrofits when regulations change.
- Position for microgrid projects. Commercial and industrial customers interested in microgrids need grid-forming inverters by definition. Use this as a qualification question early in the sales conversation.
Design Grid-Forming Solar Systems with Confidence
SurgePV helps you model islanding scenarios, battery sizing, and inverter specifications for resilient solar-plus-storage projects.
Start Free TrialNo credit card required
Real-World Examples
Residential: 10 kW Solar + 13.5 kWh Battery (Off-Grid Capable)
A homeowner in rural Texas installs a 10 kW solar array paired with a 13.5 kWh battery and a grid-forming hybrid inverter. During normal operation, the system operates in grid-following mode, exporting excess solar and importing as needed. When a winter storm causes a 3-day grid outage, the inverter seamlessly transitions to grid-forming mode, powering critical loads (refrigerator, lighting, internet, medical equipment) while the solar array recharges the battery each day. The customer avoids an estimated $2,500 in spoiled food and hotel costs.
Commercial: 500 kW Microgrid for a Data Center
A colocation data center in Arizona deploys a 500 kW solar array, 1 MWh battery energy storage system, and four 125 kVA grid-forming inverters configured in a microgrid architecture. The grid-forming inverters provide black-start capability and maintain voltage and frequency during islanded operation. During two grid outages in the first year totaling 14 hours, the facility maintained 100% uptime. The avoided downtime cost exceeded $180,000, paying back the grid-forming premium within 8 months.
Utility-Scale: 50 MW Solar Farm with Synthetic Inertia
A 50 MW solar farm in South Australia is required by the Australian Energy Market Operator (AEMO) to provide synthetic inertia due to the region’s high renewable penetration (over 60% instantaneous). The project uses grid-forming inverters with a virtual inertia constant of H = 6 seconds, contributing approximately 600 MJ of synthetic inertial energy. This replaces the need for a gas turbine that would have cost $12 million to install and $3 million/year to operate as a synchronous condenser.
Impact on System Design
The choice between grid-forming and grid-following inverters affects multiple design parameters. Solar professionals using solar software should consider these tradeoffs:
| Design Decision | Grid-Following Inverter | Grid-Forming Inverter |
|---|---|---|
| Grid Connection | Requires stable external grid signal | Can operate with or without grid |
| Battery Requirement | Optional (for self-consumption) | Required (for voltage source and inertia) |
| Cost Premium | Baseline | 15–30% higher for equivalent kVA rating |
| Islanding Capability | No (disconnects on grid loss) | Yes (maintains local voltage and frequency) |
| Weak Grid Performance | Degrades below SCR of 3 | Stable down to SCR of 1.5 or lower |
| Grid Code Compliance | Meets current residential codes | Required for emerging utility-scale grid codes |
| Commissioning Complexity | Standard — plug and produce | Higher — requires droop tuning and black-start testing |
When designing for a site with both grid-forming and grid-following inverters, always ensure at least one grid-forming unit is rated to handle the full inrush current of connected loads during black-start. Undersizing the grid-forming unit is the most common commissioning failure in hybrid microgrid projects.
Frequently Asked Questions
What is a grid-forming inverter in simple terms?
A grid-forming inverter is a device that can create its own electrical grid. While a standard solar inverter needs the utility grid to be running before it can operate, a grid-forming inverter generates its own voltage and frequency — like a miniature power plant. This means it can keep your building powered during a grid outage, as long as it has a battery or other energy source connected.
What is the difference between a grid-forming and grid-following inverter?
A grid-following inverter acts as a current source — it measures the existing grid voltage and injects current in sync with it. If the grid goes down, the inverter shuts off. A grid-forming inverter acts as a voltage source — it creates the voltage and frequency reference itself. This allows it to operate independently, start a dead grid (black-start), and provide inertia and frequency support that the grid-following inverter cannot.
Do I need a grid-forming inverter for my solar system?
It depends on your requirements. If you want backup power during grid outages, need to run an off-grid or microgrid system, or are installing in an area with a weak or unreliable grid, then yes — a grid-forming inverter is necessary. For a standard grid-tied residential solar system where you do not need backup power, a grid-following inverter is sufficient and more cost-effective.
Can a grid-forming inverter work with solar panels directly?
Grid-forming inverters need a stable DC energy source to generate their voltage reference. Solar panels alone have variable output that depends on irradiance, making them unsuitable as the sole source for grid-forming duty. In practice, grid-forming inverters are paired with battery storage — the battery provides the stable DC bus and instantaneous power response, while solar panels charge the battery and supplement loads during daylight hours.
How much more does a grid-forming inverter cost compared to a grid-following inverter?
Grid-forming inverters typically carry a 15–30% cost premium over grid-following inverters of the same power rating. For residential hybrid inverters (5–10 kW), this translates to roughly $500–2,000 extra. For commercial and utility-scale systems, the premium per kVA decreases, but the total added cost can be significant. The economics often favor grid-forming when the customer values backup power or when grid codes mandate the capability — in those cases, it is not optional.
