Key Takeaways
- Grid stability refers to maintaining voltage and frequency within safe operating limits at all times
- High solar penetration introduces variability that grid operators must actively manage
- Smart inverters with grid-support functions are now required in most interconnection standards
- Frequency must stay within ±0.5 Hz of nominal (50 or 60 Hz) to prevent equipment damage
- System designers must account for ramp rates, voltage rise, and fault ride-through requirements
- Battery storage and demand response are the primary tools for stabilizing solar-heavy grids
What Is Grid Stability?
Grid stability is the ability of an electrical power system to maintain steady voltage, frequency, and power quality under continuously changing conditions. Every time a load switches on or a generator trips offline, the grid must rebalance supply and demand within milliseconds. When distributed solar energy enters the mix, the grid faces additional variability from cloud cover, sunrise/sunset transitions, and seasonal production shifts.
For solar professionals, grid stability is not an abstract utility concern. It directly determines interconnection requirements, inverter settings, and system size limits. Utilities increasingly require smart inverter functions and voltage ride-through capabilities before approving new solar installations.
Grid stability is the foundation that determines whether a solar installation can connect to the utility network. Without meeting stability requirements, even a perfectly designed system will not receive interconnection approval.
How Grid Stability Works
Grid stability depends on a continuous balancing act between generation, load, and grid infrastructure. Here is how the process works from the perspective of solar integration:
Real-Time Supply-Demand Balancing
Grid operators continuously match electricity generation to consumption. Any mismatch causes frequency deviations — overgeneration pushes frequency up, undergeneration pulls it down.
Frequency Regulation
Generators and inverters adjust output within seconds to hold frequency at nominal levels (50 Hz or 60 Hz). This primary response is automatic and happens before operators intervene.
Voltage Management
Voltage must stay within ±5% of nominal at every point on the distribution network. Solar injection at the end of long feeders can push voltage above limits, requiring reactive power compensation.
Fault Response
When short circuits or equipment failures occur, generators and inverters must either ride through the disturbance or disconnect safely. Voltage ride-through standards define these requirements.
Ramp Rate Control
Rapid changes in solar output (cloud transients) create ramp rate challenges. Inverters and storage systems smooth these transitions to prevent voltage and frequency swings.
Δf = (P_generation − P_load) / (2 × H × S_base)Where Δf is the frequency deviation, H is the system inertia constant (seconds), and S_base is the system base power (MVA). Lower inertia — common in grids with high inverter-based generation — means larger frequency swings from the same power imbalance.
Types of Grid Stability
Grid stability encompasses several distinct categories. Each type presents different challenges for solar integration and system design.
Rotor Angle Stability
The ability of synchronous generators to remain in phase with each other after a disturbance. High solar penetration reduces the number of synchronous machines online, lowering the system’s natural damping capacity.
Frequency Stability
The grid’s ability to maintain steady frequency following a major generation or load change. Solar variability from cloud cover directly challenges frequency stability, especially in smaller or islanded grids.
Voltage Stability
The ability to maintain acceptable voltage levels across the network. Distributed solar can cause voltage rise on local feeders, while sudden generation loss can cause voltage collapse in weak grid areas.
Long-Term Stability
The system’s ability to reach a new steady state after large disturbances. Involves slower-acting controls like automatic generation control (AGC), load shedding, and energy storage dispatch over longer timeframes.
Voltage stability is the most common grid stability issue that solar designers encounter. If your system causes voltage at the point of interconnection to exceed utility limits (typically 1.05 per unit), the utility will require mitigation — either curtailment, reactive power support, or infrastructure upgrades at the developer’s expense.
Key Metrics & Calculations
Solar professionals should understand these grid stability metrics when designing systems and responding to utility interconnection requirements:

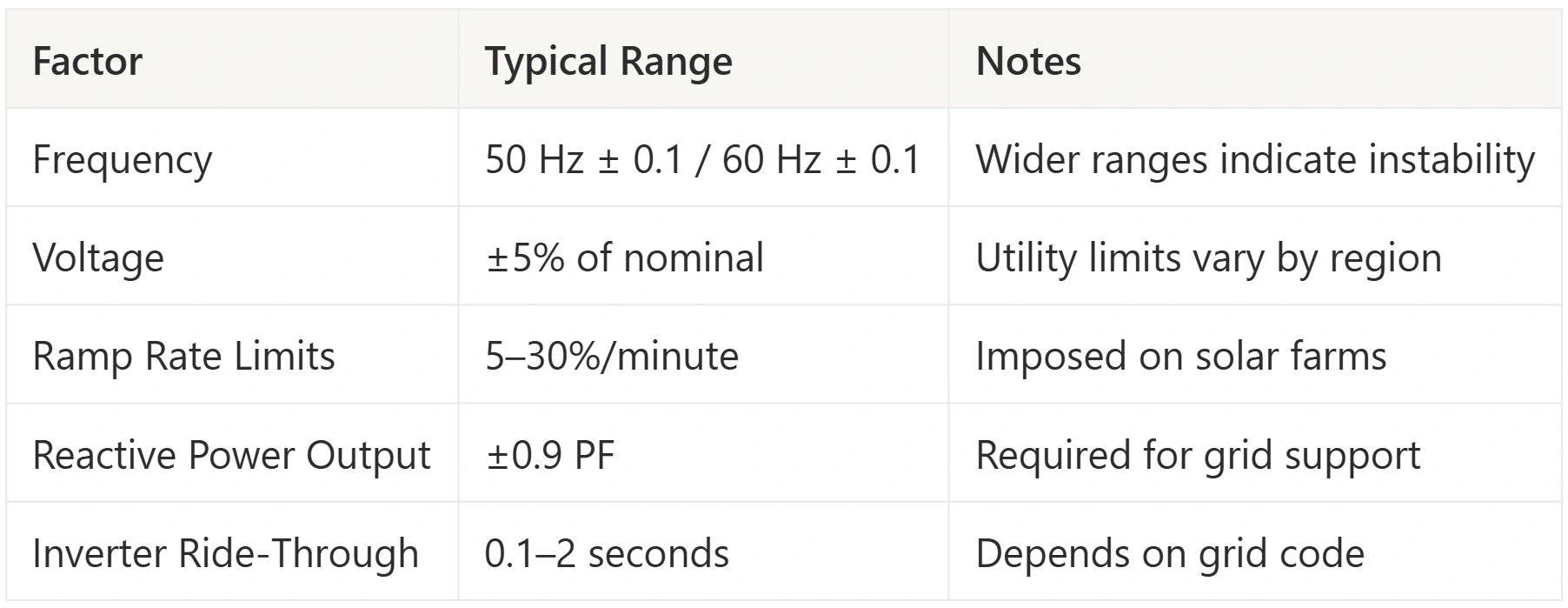

| Metric | Unit | What It Measures |
|---|---|---|
| Grid Frequency | Hz | System-wide balance between generation and load |
| Voltage at POI | V or p.u. | Voltage level at the point of interconnection |
| Fault Level (MVA) | MVA | Short-circuit capacity — indicates grid strength |
| X/R Ratio | — | Grid impedance character — affects voltage sensitivity to power injection |
| Hosting Capacity | kW or MW | Maximum solar that a feeder can accept without upgrades |
| System Inertia | seconds | Stored rotational energy available for frequency response |
ΔV ≈ (P × R + Q × X) / V_nominalWhere P is active power injection (kW), R is feeder resistance (Ω), Q is reactive power (kVAR), X is feeder reactance (Ω), and V_nominal is the nominal voltage. This formula explains why solar installations at the end of long distribution feeders are most likely to cause voltage violations.
Practical Guidance
Grid stability affects solar design decisions from initial site assessment through commissioning. Here is role-specific guidance for handling stability requirements:
- Check hosting capacity before sizing. Request the utility’s hosting capacity map or feeder data. Designing a system that exceeds the feeder’s hosting capacity triggers expensive grid upgrades and long delays.
- Configure smart inverter settings per grid code. IEEE 1547-2018 and regional standards require specific volt-VAR, volt-watt, and frequency-watt response curves. Use solar design software that supports these configurations natively.
- Model voltage rise at the POI. Use the voltage rise formula to estimate whether your system will push feeder voltage beyond limits. Factor in existing solar on the same feeder — cumulative effects compound.
- Include ramp rate limits in production estimates. Some utilities cap how fast solar output can change (e.g., 10%/min). This affects energy yield calculations and may require paired storage for compliance.
- Verify inverter grid-support capabilities. Not all inverters support the full range of grid stability functions required by modern interconnection standards. Confirm IEEE 1547-2018 compliance before procurement.
- Commission with correct grid parameters. Program inverter frequency trip points, voltage ride-through settings, and anti-islanding parameters according to the utility’s interconnection agreement.
- Test anti-islanding protection. Verify that the system disconnects within the required timeframe (typically under 2 seconds) when the grid goes down. Failure to island-protect can endanger utility line workers.
- Document grid voltage at commissioning. Record baseline voltage readings at the point of interconnection before and after energizing the system. This establishes a reference for any future voltage complaints.
- Explain interconnection timelines upfront. Grid stability studies can add 4–12 weeks to project timelines for larger systems. Set customer expectations early to avoid frustration during the approval process.
- Position smart inverters as a feature. Customers increasingly hear about grid stability in the news. Explain that modern inverters actively support grid health, making their system a good neighbor on the electrical network.
- Use grid stability to justify battery storage. In areas with grid stability concerns, batteries paired with solar can provide backup power and grid services — a tangible benefit beyond bill savings.
- Know your local hosting capacity limits. If a customer’s feeder is near capacity, proactively discuss system sizing constraints and potential upgrade costs rather than letting the utility deliver the bad news.
Design Grid-Compliant Solar Systems Faster
SurgePV’s solar software models voltage rise, inverter settings, and grid compliance requirements in every project — so you never fail an interconnection review.
Start Free TrialNo credit card required
Real-World Examples
Residential: 10 kW System on a Weak Feeder
A homeowner in rural Arizona requests a 10 kW rooftop system. The utility’s hosting capacity study reveals that the distribution feeder already has 85% solar penetration. The initial design would push voltage above 1.05 p.u. during midday. The designer uses solar design software to model a volt-VAR response curve, configuring the smart inverter to absorb reactive power at high voltage. This keeps voltage within limits and secures interconnection approval without curtailment.
Commercial: 500 kW Warehouse with Ramp Rate Limits
A logistics company in Hawaii installs a 500 kW rooftop system. Hawaiian Electric requires a ramp rate limit of 2 MW/min for systems above 100 kW. Cloud transients at the site can cause output swings of 400 kW in under 30 seconds. The solution: a 250 kWh battery energy storage system provides ramp rate smoothing, absorbing rapid generation changes and releasing stored energy gradually. The system passes interconnection testing and operates without curtailment.
Utility-Scale: 20 MW Solar Farm with Grid-Forming Inverters
A 20 MW ground-mount installation in South Australia uses grid-forming inverters that provide synthetic inertia to the local network. The region experienced frequency instability after the closure of a coal-fired power station. The solar farm’s inverters respond to frequency deviations within 200 milliseconds — faster than the retired synchronous generators. Grid frequency deviations dropped by 35% after the solar farm came online, demonstrating that solar can actively improve grid stability rather than degrade it.
Impact on System Design
Grid stability requirements directly shape how solar systems should be designed and specified:
| Design Decision | Strong Grid (High Fault Level) | Weak Grid (Low Fault Level) |
|---|---|---|
| Maximum System Size | Limited mainly by roof/land area | Limited by hosting capacity and voltage rise |
| Inverter Type | Standard grid-following inverters | Smart inverters with volt-VAR/volt-watt functions |
| Energy Storage | Optional for self-consumption | Often required for ramp rate compliance |
| Interconnection Timeline | Fast-track approval (days to weeks) | Detailed study required (weeks to months) |
| Grid Upgrade Costs | Typically none | Potential transformer or feeder upgrades at developer cost |
Request a pre-application report from the utility before finalizing system design. This low-cost screening identifies potential grid stability issues early, preventing expensive redesigns after submitting the full interconnection application. Most utilities provide these reports within 10 business days.
Frequently Asked Questions
What is grid stability in simple terms?
Grid stability means keeping the electrical grid’s voltage and frequency steady so that power flows reliably to every connected building and device. Think of it like water pressure in a pipe — too much or too little causes problems. When solar panels add electricity to the grid, operators must ensure this extra supply does not push the system out of balance.
How does solar energy affect grid stability?
Solar energy affects grid stability in two ways. First, solar output varies with weather — cloud cover can cut production by 70% in seconds, creating rapid supply changes the grid must absorb. Second, solar inverters replace synchronous generators that naturally provide inertia and voltage support. Modern smart inverters address both issues by providing synthetic inertia, reactive power support, and ramp rate smoothing.
What is the relationship between grid stability and renewable energy?
Renewable energy sources like solar and wind are variable — their output depends on weather rather than operator dispatch. As renewable penetration increases, grid operators need new tools to maintain stability: battery storage for fast frequency response, smart inverters for voltage management, demand response for load balancing, and improved forecasting to predict generation changes. Grids with over 50% renewable penetration, such as South Australia and Denmark, have proven these solutions work at scale.
What grid stability requirements apply to residential solar installations?
Residential solar systems must comply with IEEE 1547-2018 (in the U.S.) or equivalent regional standards. Key requirements include anti-islanding protection (disconnect within 2 seconds of grid loss), voltage and frequency ride-through (stay connected during brief disturbances), and smart inverter functions like volt-VAR and frequency-watt response. Most modern residential inverters meet these standards out of the box, but installers must configure the correct settings for their utility.
Can solar installations improve grid stability?
Yes. Solar installations with smart inverters and battery storage can actively improve grid stability. Smart inverters provide reactive power to regulate voltage, respond to frequency deviations faster than conventional generators, and absorb grid disturbances through ride-through capabilities. Solar-plus-storage systems can also provide ancillary services like frequency regulation and spinning reserves, generating additional revenue while supporting grid reliability.
