Definition H

Harmonics & Power Quality

Electrical distortions in voltage and current waveforms caused by non-linear loads and power electronics, including solar inverters, that can affect grid stability, equipment performance, and regulatory compliance.

Updated Mar 2026 5 min read
Rainer Neumann

Written by

Rainer Neumann

Content Head · SurgePV

Keyur Rakholiya

Edited by

Keyur Rakholiya

CEO & Co-Founder · SurgePV

Key Takeaways

  • Harmonics are voltage and current waveform distortions at integer multiples of the fundamental frequency (50 Hz or 60 Hz)
  • Solar inverters are non-linear devices that inject harmonics into the grid, requiring filtering and compliance with IEEE 519 and IEC 61000
  • Total Harmonic Distortion (THD) below 5% is the standard threshold for grid-connected solar inverters
  • Poor power quality causes overheating in transformers, nuisance tripping of breakers, and premature equipment failure
  • Smart inverters with active filtering can mitigate harmonics and improve power quality at the point of interconnection
  • Solar designers must account for harmonic limits during system sizing, inverter selection, and grid compliance documentation

What Are Harmonics and Power Quality?

Harmonics are electrical distortions in voltage and current waveforms that occur at integer multiples of the fundamental grid frequency. In a perfect AC power system, voltage and current follow a clean sinusoidal wave at 50 Hz or 60 Hz. In practice, non-linear loads — including solar inverters, variable-frequency drives, LED lighting, and computer power supplies — draw current in pulses rather than smooth sine waves, introducing harmonic frequencies into the system.

Power quality refers to the overall condition of the electrical supply. It measures how closely the actual voltage and current waveforms match the ideal sinusoidal shape, and includes factors like voltage sags, swells, flicker, frequency deviation, and harmonic distortion. For solar installations, power quality matters because inverters must convert DC to AC while meeting strict waveform standards set by utilities and grid codes.

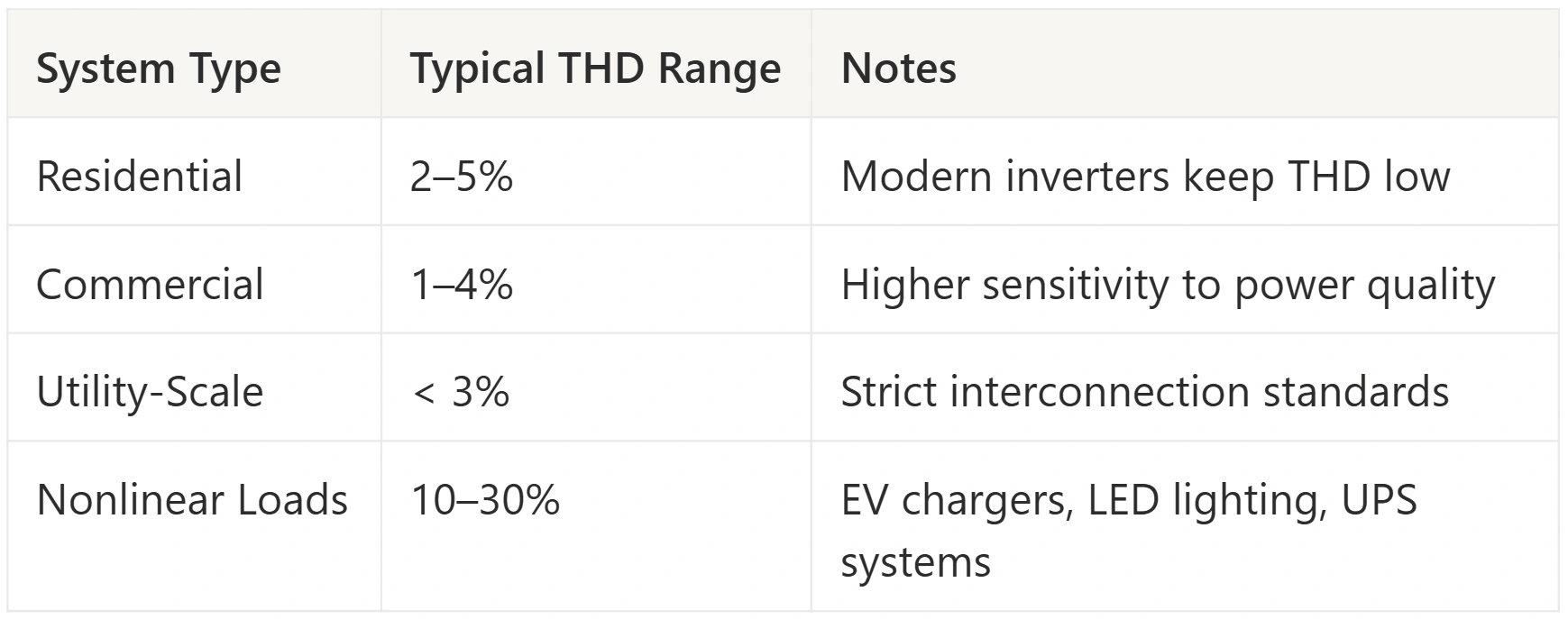

Harmonics from solar inverters typically represent less than 3–5% THD under normal operating conditions. But on weak grids or at high penetration levels, even small distortions compound, causing voltage fluctuations, transformer overheating, and interconnection failures.

How Harmonics Affect Solar Systems

Harmonic distortion in solar installations follows a specific chain of cause and effect, from generation through grid interaction. Here is the sequence:

1

DC-to-AC Conversion

The solar inverter switches DC power into AC using pulse-width modulation (PWM). This switching process inherently generates harmonic frequencies — primarily odd-order harmonics (3rd, 5th, 7th, 11th, 13th).

2

Harmonic Current Injection

The inverter injects harmonic currents into the building’s electrical system and, through the point of common coupling (PCC), into the utility grid. The magnitude depends on inverter topology, load conditions, and output filtering.

3

Waveform Distortion Propagation

Harmonic currents flowing through system impedance create voltage distortion. On weak grids with high impedance, even modest harmonic currents produce significant voltage distortion at the PCC.

4

Equipment and Grid Impact

Distorted waveforms cause additional heating in transformers and cables, reduce the lifespan of capacitors, trigger protective relay malfunctions, and degrade power factor readings.

5

Compliance Measurement

Power quality analyzers measure THD and individual harmonic magnitudes at the PCC. Results are compared against IEEE 519 or IEC 61000 limits to determine whether the installation passes interconnection requirements.

Total Harmonic Distortion (THD)
THD (%) = (√(V₂² + V₃² + V₄² + … + Vₙ²) / V₁) × 100

Types of Harmonics in Solar Systems

Understanding harmonic types helps solar designers select the right inverter topology and filtering approach for each project.

Most Common

Odd-Order Harmonics

The 3rd, 5th, 7th, 11th, and 13th harmonics are the dominant distortion components in solar inverters. The 3rd harmonic (150/180 Hz) is particularly problematic in three-phase systems because triplen harmonics sum in the neutral conductor.

Less Common

Even-Order Harmonics

The 2nd, 4th, and 6th harmonics are typically smaller in magnitude but appear during asymmetric operating conditions, such as partial shading or DC offset in the inverter output. Modern inverters suppress these through control algorithms.

High Frequency

Switching Harmonics

Generated at the inverter’s PWM switching frequency (typically 4–20 kHz) and its multiples. These are filtered by the inverter’s output LC or LCL filter before reaching the grid. Poor filter design allows switching harmonics to leak through.

System-Level

Interharmonics

Non-integer multiples of the fundamental frequency caused by interaction between multiple inverters or between inverters and other non-linear loads on the same circuit. Can cause light flicker and interfere with ripple control signals used by utilities.

Designer’s Note

When multiple solar inverters operate on the same transformer, their harmonic currents can either cancel or amplify depending on phase alignment. Distributed inverter placement and phase balancing reduce the risk of harmonic resonance. Use solar design software to model inverter placement across phases before finalizing the layout.

Key Metrics & Standards

Power quality compliance for solar installations depends on several measurable parameters and their regulatory limits:

MetricUnitTypical LimitStandard
Total Harmonic Distortion (THD)%Less than 5% (current)IEEE 519-2022
Individual Odd Harmonic% of fundamentalLess than 4% (3rd–9th)IEEE 519-2022
Voltage THD%Less than 5% at PCCIEC 61000-3-6
Total Demand Distortion (TDD)%Less than 5% at rated loadIEEE 519-2022
Power Factorratio (0–1)Above 0.9 (typically 0.95+)Utility-specific
DC Injection% of rated currentLess than 0.5%IEEE 1547-2018
Total Demand Distortion (TDD)
TDD (%) = (√(I₂² + I₃² + I₄² + … + Iₙ²) / I_load) × 100

Practical Guidance

Harmonics and power quality affect inverter selection, system layout, and grid compliance documentation. Here is role-specific guidance:

  • Select inverters with low THD ratings. Compare inverter datasheets for current THD at rated output. Quality inverters from Tier 1 manufacturers achieve less than 3% THD. Use solar software to compare inverter specifications during the design phase.
  • Assess grid stiffness at the PCC. Request the short-circuit ratio (SCR) from the utility. A SCR below 20 indicates a weak grid where harmonic voltage distortion is more likely. Consider active filtering or derating the system.
  • Balance phases in three-phase designs. Unbalanced loading across phases amplifies triplen harmonics in the neutral conductor. Distribute inverter capacity evenly and verify with solar design software.
  • Size transformers with K-factor ratings. Harmonics cause additional transformer heating. For commercial solar installations above 100 kW, specify K-factor rated transformers (K-4 minimum) to handle harmonic loading without derating.
  • Verify inverter filter integrity. Check that output filter inductors and capacitors are correctly installed and undamaged. Loose connections or damaged filter components increase harmonic emissions.
  • Measure THD at commissioning. Use a power quality analyzer (Fluke 435 or equivalent) to record THD at the PCC during peak production. Document results for the interconnection compliance file.
  • Maintain cable routing separation. Keep inverter AC output cables separated from sensitive communication and control wiring. Harmonic currents generate electromagnetic interference that can disrupt monitoring systems.
  • Check for resonance conditions. If power factor correction capacitors are present on the same bus, verify that their resonant frequency does not coincide with dominant inverter harmonics. Resonance can amplify harmonics by 5 to 10 times.
  • Explain compliance as a standard feature. Customers sometimes worry about solar “damaging” their electrical systems. Explain that modern inverters meet IEEE 519 and IEC standards, and that THD is measured and verified at commissioning.
  • Highlight smart inverter capabilities. Smart inverters with active harmonic filtering and reactive power compensation are selling points for commercial customers who already struggle with power quality issues.
  • Quantify power quality savings. For commercial clients paying demand charges or power factor penalties, show how a well-designed solar system with reactive power support can reduce these charges by 10–30%.
  • Use power quality as a differentiator. Many installers skip power quality analysis. Offering pre-installation grid assessments and post-installation THD reports builds credibility and justifies premium pricing.

Design Solar Systems With Grid Compliance Built In

SurgePV’s solar design software models inverter output, phase balancing, and grid interconnection requirements in a single workflow.

Start Free Trial

No credit card required

Real-World Examples

Residential: 10 kW Single-Phase System

A homeowner installs a 10 kW system with a single-phase string inverter. During commissioning, the installer measures 2.8% current THD at the service panel, well within IEEE 519 limits. However, the homeowner also runs a home EV charger (another non-linear load), pushing combined THD to 6.2% during simultaneous operation. The solution: upgrading to a smart inverter with active harmonic filtering, which reduces combined THD to 3.9% and eliminates the LED light flicker the homeowner had reported.

Commercial: 500 kW Rooftop on a Manufacturing Facility

A manufacturing plant with existing power quality issues (variable-frequency drives on CNC machines produce 8% voltage THD) adds a 500 kW rooftop solar system. The solar inverters are configured to provide active and reactive power compensation, reducing facility-wide voltage THD from 8% to 4.6%. The plant avoids $14,000/year in power factor penalties and extends transformer life by reducing thermal stress. Payback on the power quality improvements: 2.1 years.

Utility-Scale: 20 MW Ground-Mount With Weak Grid Connection

A 20 MW solar farm connects to a rural distribution line with a short-circuit ratio of 12 (weak grid). Initial interconnection studies show voltage THD would exceed 5% at rated output. The developer installs centralized active harmonic filters and tunes inverter control parameters to limit individual harmonic injection. Post-commissioning measurements confirm 3.8% voltage THD, satisfying the utility’s grid code requirements and avoiding a costly substation upgrade.

Impact on System Design

Harmonic and power quality considerations directly influence how solar professionals approach system design decisions:

Design DecisionStrong Grid (SCR > 20)Weak Grid (SCR less than 20)
Inverter SelectionStandard grid-tied inverterInverter with advanced grid support and active filtering
Output FilteringStandard LCL filter sufficientMay require additional passive or active filters
System Size LimitSize to roof/load capacityMay be limited by grid hosting capacity
Interconnection StudySimplified reviewDetailed power quality impact study required
MonitoringStandard production monitoringAdd power quality monitoring at PCC
Compliance CostMinimal — built into inverter cost$5,000–$50,000+ for filters and studies
Pro Tip

Request the utility’s short-circuit current data at the proposed point of interconnection before finalizing your design. A 5-minute phone call or email to the utility engineer can save weeks of redesign if harmonic limits are tighter than expected. Use SurgePV’s generation and financial tool to model system output under different sizing constraints.

Frequently Asked Questions

What are harmonics in solar systems?

Harmonics in solar systems are unwanted electrical frequencies generated by solar inverters during the DC-to-AC conversion process. These frequencies are multiples of the fundamental grid frequency (50 or 60 Hz) and distort the normal sinusoidal waveform. Modern solar inverters keep harmonic distortion below 3–5% THD through output filtering and advanced control algorithms.

What power quality issues can solar inverters cause?

Solar inverters can introduce harmonic distortion, voltage fluctuations, and flicker into the electrical system. On weak grids, high solar penetration levels may cause voltage rise, frequency deviations, and interference with utility control signals. These issues are managed through proper inverter selection, output filtering, and compliance with IEEE 519 and IEC 61000 standards.

What is an acceptable THD for a solar inverter?

IEEE 519-2022 sets the standard at less than 5% Total Demand Distortion (TDD) for current and less than 5% THD for voltage at the point of common coupling. Most quality solar inverters achieve 2–3% current THD under normal conditions. Individual odd harmonics (3rd through 9th) should each remain below 4% of the fundamental. These limits ensure the inverter does not degrade power quality for other grid users.

How do I reduce harmonics from a solar installation?

Select inverters with built-in LCL output filters and low THD ratings (below 3%). For larger systems, add passive harmonic filters tuned to dominant frequencies (5th and 7th) or active harmonic filters that inject compensating currents in real time. Balance loads across phases in three-phase systems, maintain proper cable sizing, and avoid placing solar inverters on the same bus as power factor correction capacitors without checking for resonance.

Do harmonics affect solar panel efficiency?

Harmonics do not directly affect solar panel efficiency since panels produce DC power. However, harmonic distortion on the AC side can reduce inverter efficiency by 1–2%, increase cable losses due to skin effect at higher frequencies, and cause additional heating in transformers. On weak grids, voltage distortion from harmonics can also affect the inverter’s maximum power point tracking (MPPT) performance, indirectly reducing overall system output.
