Key Takeaways
- HelioScope combines layout design and energy simulation in a single browser-based platform
- Uses sub-module shading analysis for accurate performance predictions
- Produces bankable energy reports accepted by financiers and utilities
- Primarily used for commercial and industrial projects, though residential is supported
- Competes with tools like PVsyst, Aurora Solar, and SurgePV in the solar design market
- Understanding HelioScope’s methodology helps designers evaluate and compare simulation outputs
What Is HelioScope Modeling?
HelioScope modeling refers to the process of designing solar PV systems and simulating their energy performance using the HelioScope platform, a cloud-based tool developed by Folsom Labs (now part of Aurora Solar). HelioScope allows designers to draw panel layouts on satellite imagery, define electrical configurations, and run energy simulations that account for shading, soiling, wiring losses, and weather data.
The platform gained traction in the commercial solar market for its combination of speed and simulation accuracy. Designers can model a commercial rooftop system in 30–60 minutes, compared to several hours in traditional desktop tools. HelioScope uses a component-based simulation engine that models performance at the sub-module level, capturing the effects of partial shading on string and inverter performance.
HelioScope popularized the concept of browser-based solar design. Its approach — combining quick layout tools with engineering-grade simulation — set the standard that modern solar software platforms now build on and extend.
How HelioScope Modeling Works
HelioScope follows a structured workflow from site definition to energy report generation:
Site & Roof Definition
Designers trace roof outlines or ground-mount areas on satellite imagery. Roof pitch, azimuth, and setbacks are defined for each segment. Keepout zones are drawn around vents, skylights, and equipment.
Module Layout
HelioScope auto-fills the defined area with selected module types, applying row spacing, tilt angles, and racking constraints. Designers can manually adjust individual panel positions.
Electrical Configuration
Inverters, string configurations, and wiring runs are defined. HelioScope validates string voltage against inverter input windows and flags design errors.
Condition Set Definition
Weather data, soiling losses, snow losses, module degradation, and other derating factors are configured. HelioScope pulls TMY weather data for the project location.
Energy Simulation
The engine runs hourly simulations across a typical meteorological year. Sub-module shading analysis calculates bypass diode activation and string-level mismatch losses.
Report Generation
HelioScope produces detailed reports with monthly energy output, loss waterfall diagrams, and system specifications suitable for permit applications and financing.
Annual Energy (kWh) = POA Irradiance × Module Area × Module Efficiency × (1 − System Losses)Types of HelioScope Modeling
HelioScope supports different modeling approaches depending on the project type and analysis depth.
Commercial Rooftop Modeling
The core use case. Designers model flat or low-slope commercial roofs with fixed-tilt racking, multiple roof segments, and complex keepout patterns. Supports both portrait and landscape orientations.
Utility-Scale Modeling
Ground-mount projects with row spacing optimization, tracker support, and terrain-adjusted irradiance calculations. Suitable for projects from 500 kW to multi-MW scale.
Residential Rooftop Modeling
Pitched roof layouts with multiple orientations and complex geometries. While functional, HelioScope was not originally optimized for residential workflows — other tools may offer faster residential design.
Comparative Scenario Modeling
Running multiple design variants (different modules, inverters, or layouts) and comparing energy output and financial returns side by side. Useful for value-engineering commercial projects.
HelioScope’s energy estimates tend to be conservative compared to some tools because of its sub-module shading model. When comparing HelioScope output to other platforms, ensure you’re using identical weather data and loss assumptions. A 2–5% difference in annual production estimates between tools is common and usually acceptable.

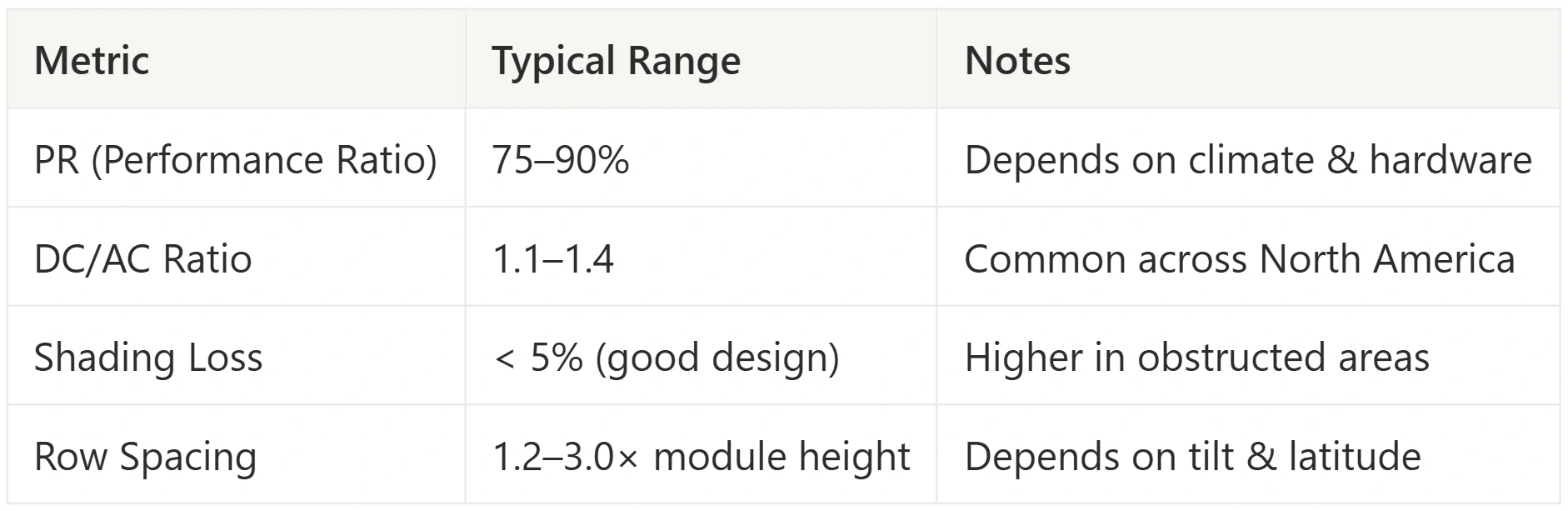

Key Metrics & Calculations
HelioScope reports include several key performance metrics that designers and financiers evaluate:
| Metric | Unit | What It Measures |
|---|---|---|
| Specific Yield | kWh/kWp/yr | Annual energy production per installed capacity |
| Performance Ratio | % | Ratio of actual to theoretical energy output |
| Total System Losses | % | Combined derating from all loss factors |
| Shading Loss | % | Energy lost due to shading from obstructions |
| Soiling Loss | % | Energy lost due to dust, dirt, or debris on panels |
| DC/AC Ratio | ratio | Ratio of DC panel capacity to AC inverter capacity |
Performance Ratio = Actual Energy Output / (Installed Capacity × Reference Yield)Practical Guidance
Understanding HelioScope modeling helps solar professionals produce accurate designs and evaluate competing simulation results:
- Verify weather data sources. HelioScope defaults to specific TMY datasets. If your financier requires a different source (e.g., Meteonorm, SolarAnywhere), adjust the condition set accordingly.
- Model keepouts accurately. Missing a rooftop HVAC unit or vent in the layout leads to optimistic yield predictions. Take time to identify and draw all keepout zones from satellite imagery.
- Use the loss waterfall diagram. This visualization breaks down exactly where energy is lost. If shading losses exceed 5%, revisit the layout or consider microinverters/power optimizers.
- Compare with alternative tools. Cross-check HelioScope results against solar design software like SurgePV or PVsyst for critical projects. Agreement within 3–5% builds confidence in the estimate.
- Review electrical layouts carefully. HelioScope’s auto-stringing may not match your preferred wiring approach. Verify string lengths and home run distances against field conditions.
- Check code compliance. Ensure setback distances, fire access pathways, and conductor sizing in the HelioScope model meet local AHJ requirements before procurement.
- Validate row spacing on-site. Satellite-based layouts may not account for rooftop obstructions visible only from ground level. Confirm spacing and clearances during site visits.
- Export permit-ready documents. HelioScope reports meet most permit requirements, but some jurisdictions need additional detail. Supplement with site-specific structural and electrical documentation.
- Translate technical outputs for customers. HelioScope reports are detailed but technical. Extract key figures — annual production, savings, and payback — into customer-friendly proposal formats.
- Use simulation credibility as a selling point. HelioScope’s bankable reports are recognized by major financiers. Mentioning this builds trust with commercial customers seeking project financing.
- Present loss breakdowns transparently. Showing customers the loss waterfall demonstrates honesty about system performance rather than presenting unrealistically high numbers.
- Offer design comparison options. Run two or three HelioScope scenarios (different system sizes or equipment) and present them as options. This gives customers agency in the decision.
Go Beyond HelioScope with SurgePV
SurgePV combines design, simulation, and proposal generation in one platform — with integrated financial modeling that HelioScope lacks.
Start Free TrialNo credit card required
Real-World Examples
Commercial: 200 kW Flat Roof System
A solar installer in Texas uses HelioScope to model a 200 kW system on a 40,000 sq ft warehouse roof. The platform auto-fills 480 modules in landscape orientation with 10-degree tilt and 5-foot row spacing. HelioScope’s simulation predicts 298,000 kWh/year with a performance ratio of 82.4%. The loss waterfall shows 3.2% shading loss from rooftop HVAC units. After adjusting the layout to avoid shaded zones, production increases to 306,000 kWh/year.
Industrial: Multi-Building Campus
A 500 kW project across three industrial buildings requires coordinated design. Using HelioScope, the designer creates separate field segments for each building, connects them to centralized inverters, and runs a combined simulation. The platform identifies that Building C contributes 40% of the total shading losses despite hosting only 25% of the panels, leading to a redesign that moves capacity to Buildings A and B.
Comparison Study: HelioScope vs. PVsyst
An engineering firm runs the same 150 kW commercial project through HelioScope and PVsyst to cross-validate results. HelioScope predicts 224,500 kWh/year; PVsyst predicts 229,800 kWh/year — a 2.3% difference. The variance traces to different shading calculation methodologies and default soiling assumptions. Both results fall within the financier’s acceptable range, and the average is used for the investment model.
Impact on System Design
Understanding HelioScope’s modeling approach helps designers make better decisions regardless of which platform they use:
| Design Decision | HelioScope Approach | Alternative Approach |
|---|---|---|
| Shading Model | Sub-module level with bypass diode modeling | Cell-level or string-level (varies by tool) |
| Weather Data | TMY datasets (NSRDB, Meteonorm) | Site-specific measured data or satellite-derived |
| Layout Method | Auto-fill with manual adjustment | Fully manual or AI-assisted placement |
| Financial Modeling | Basic LCOE calculation | Integrated proposal builder with financing options |
| Report Output | Engineering-focused PDF | Customer-facing proposal with branding |
If you’re transitioning from HelioScope to another platform like SurgePV, run your first five projects through both tools simultaneously. This calibrates your expectations for how the new platform’s simulation results compare and helps you adjust loss assumptions accordingly.
Frequently Asked Questions
What is HelioScope used for in solar design?
HelioScope is used for designing solar PV system layouts and simulating their energy production. Designers draw panel arrays on satellite imagery, configure electrical systems, and run energy simulations that predict annual output. It’s primarily used for commercial rooftop projects but supports residential and ground-mount designs as well.
How accurate is HelioScope energy modeling?
HelioScope’s energy predictions typically fall within 3–5% of actual measured production when the model inputs (weather data, shading, losses) are accurate. Its sub-module shading analysis is more detailed than many competing tools. However, accuracy depends heavily on proper keepout zone definition and correct loss factor assumptions.
Is HelioScope free to use?
HelioScope is a paid subscription product. After Aurora Solar acquired Folsom Labs, HelioScope was integrated into Aurora’s platform. Pricing varies by plan and company size. Free trials may be available, but production use requires a subscription. Alternative solar design software platforms like SurgePV offer competitive pricing with additional features like integrated proposal generation.
What are the best alternatives to HelioScope?
Top alternatives include SurgePV (combines design, simulation, and proposals), PVsyst (detailed engineering simulations), Aurora Solar (which now owns HelioScope), and OpenSolar. The best choice depends on your project type: SurgePV excels at end-to-end workflows from design through customer proposals, while PVsyst is preferred for bankable engineering reports on utility-scale projects.
