Definition H

Hosting Capacity

The maximum amount of distributed generation a grid segment can accommodate without adverse impacts on power quality, reliability, or safety.

Updated Mar 2026 5 min read
Keyur Rakholiya

Written by

Keyur Rakholiya

CEO & Co-Founder · SurgePV

Rainer Neumann

Edited by

Rainer Neumann

Content Head · SurgePV

Key Takeaways

  • Hosting capacity defines how much solar generation a feeder or transformer can handle before triggering grid issues
  • Exceeding hosting capacity can cause voltage violations, thermal overloads, and protection system malfunctions
  • Utilities publish hosting capacity maps to streamline interconnection decisions
  • Solar designers must check local hosting capacity before finalizing system size
  • Battery storage and smart inverters can increase effective hosting capacity
  • Hosting capacity analysis is becoming a standard part of utility planning nationwide

What Is Hosting Capacity?

Hosting capacity is the maximum amount of distributed energy resources (DERs) — primarily solar PV — that a specific section of the electric grid can absorb without causing voltage violations, equipment overloads, or protection coordination failures. It is expressed in kilowatts (kW) or megawatts (MW) per feeder, transformer, or substation.

Think of it as the grid’s absorption limit. Every transformer and feeder line has a physical threshold. Once the total connected solar generation on that segment exceeds the threshold, problems start: voltage rises above acceptable limits, equipment overheats, and protective relays may trip unnecessarily.

Hosting capacity is the first thing a utility reviews when processing an interconnection application. If your proposed system exceeds the available capacity on the local feeder, expect delays, additional studies, or required grid upgrades — all of which add cost and time to the project.

How Hosting Capacity Is Determined

Utilities evaluate hosting capacity through detailed power-flow analysis of their distribution network. The process considers multiple technical constraints simultaneously.

1

Feeder Modeling

Engineers build detailed electrical models of each distribution feeder, including conductor sizes, transformer ratings, load profiles, and existing DER connections.

2

Constraint Identification

The model checks for thermal limits (conductor and transformer ratings), voltage limits (ANSI C84.1 standards), protection coordination, and power quality thresholds.

3

Iterative DER Addition

Simulated solar generation is incrementally added to the feeder model. At each step, all constraints are checked. The point where the first constraint is violated defines the hosting capacity.

4

Spatial Mapping

Results are mapped geographically to create hosting capacity maps. Each feeder segment is color-coded to show available capacity — green (ample), yellow (limited), red (constrained).

5

Periodic Updates

Hosting capacity maps are updated quarterly or annually as new solar systems connect, loads change, and grid upgrades are completed.

Simplified Hosting Capacity
Hosting Capacity (kW) = Feeder Thermal Limit − Existing DER − Safety Margin

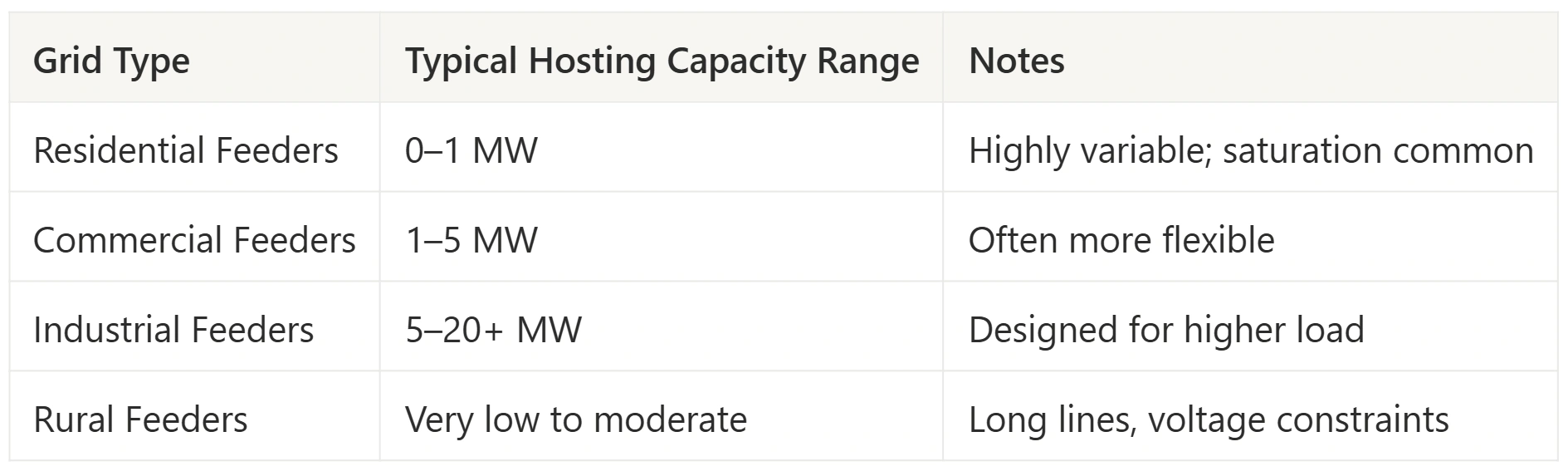

Technical Constraints That Limit Hosting Capacity

Several factors determine the hosting capacity ceiling on any given feeder. Understanding these helps solar professionals anticipate interconnection outcomes.

Most Common

Voltage Rise

Solar injection raises voltage along the feeder. When voltage exceeds ANSI upper limits (typically 126V on a 120V base), equipment damage and safety issues arise. This is the most frequent hosting capacity constraint.

Equipment Risk

Thermal Overload

Conductors and transformers have rated current limits. Reverse power flow from high solar penetration can exceed these ratings, causing overheating and accelerated equipment aging.

Safety

Protection Coordination

DERs alter fault current levels and direction. Existing protective devices may fail to operate correctly, creating safety hazards for utility workers and the public.

Power Quality

Flicker and Harmonics

Rapid changes in solar output (from cloud cover) cause voltage flicker. Inverter switching can inject harmonics. Both degrade power quality for nearby customers.

Designer’s Note

Voltage rise is the binding constraint in roughly 70% of hosting capacity limitations. Smart inverters with volt-var and volt-watt functions can mitigate voltage issues, effectively increasing hosting capacity without physical grid upgrades.

Key Metrics & Calculations

MetricUnitWhat It Measures
Available Hosting CapacitykW or MWRemaining DER capacity on a feeder segment
Total Hosting CapacitykW or MWMaximum DER the segment can support
Existing DER PenetrationkW or %Currently connected distributed generation
Daytime Minimum LoadkWLowest load on the feeder during peak solar hours
Voltage HeadroomV or %Gap between current voltage and upper limit
Thermal HeadroomA or %Gap between current loading and equipment rating
DER Penetration Ratio
Penetration (%) = (Total Connected DER kW / Feeder Peak Load kW) × 100

Practical Guidance

Hosting capacity affects project timelines, costs, and feasibility. Here’s role-specific advice for solar professionals using solar design software to plan projects.

  • Check hosting capacity maps first. Before designing a system, check the utility’s hosting capacity map for the project address. If available capacity is low, adjust system size accordingly or plan for grid upgrade costs.
  • Specify smart inverters. In constrained areas, inverters with volt-var and volt-watt response can reduce voltage impact, making interconnection approval more likely.
  • Consider export limiting. If the system exceeds hosting capacity, grid export limitation can cap exports while still allowing full self-consumption, avoiding costly grid upgrades.
  • Pair with battery storage. Batteries absorb excess generation that would otherwise stress the grid, allowing larger systems in capacity-constrained areas.
  • File interconnection applications early. In constrained areas, hosting capacity is first-come, first-served. Delays in filing can mean the difference between quick approval and a lengthy supplemental review.
  • Budget for potential upgrade costs. If the project triggers grid upgrades (transformer replacement, reconductoring), the utility may pass costs to the interconnection applicant.
  • Commission smart inverter settings. Ensure grid-support functions (volt-var, frequency-watt) are properly configured per utility requirements during commissioning.
  • Document existing feeder conditions. Photograph the service transformer nameplate and note its kVA rating — this helps resolve disputes if the utility claims insufficient capacity.
  • Set realistic timelines. In areas with limited hosting capacity, interconnection can take months instead of weeks. Communicate this upfront to avoid customer frustration.
  • Pre-screen project addresses. Check hosting capacity maps before quoting. A project on a constrained feeder may require a smaller system or additional equipment costs.
  • Position battery storage as a solution. When hosting capacity limits system size, batteries allow the customer to install more panels while staying within grid constraints — a natural upsell.
  • Explain the value of acting early. As more solar connects to a feeder, available capacity shrinks. Early adopters face fewer constraints and lower interconnection costs.

Analyze Grid Constraints Before You Design

SurgePV’s generation and financial tool helps you model export limitations and optimize system sizing for constrained feeders.

Start Free Trial

No credit card required

Real-World Examples

Residential: 10 kW System on a Constrained Feeder

A homeowner in suburban Phoenix requests a 10 kW rooftop system. The hosting capacity map shows only 4 kW remaining on the local distribution transformer. The installer specifies a smart inverter with export limiting set to 4 kW. The system generates 16,000 kWh/year, with 11,200 kWh consumed on-site and the remaining exports capped. Adding a 10 kWh battery captures an additional 2,800 kWh that would otherwise be curtailed, bringing total useful energy to 14,000 kWh.

Commercial: 500 kW Warehouse System

A logistics company in New Jersey plans a 500 kW rooftop installation. The utility’s hosting capacity analysis reveals the feeder can support 300 kW of additional DER. The utility offers two options: limit system exports to 300 kW, or fund a $180,000 transformer upgrade. The installer uses solar software to model both scenarios and determines that export limiting to 300 kW — combined with the warehouse’s high daytime load — still achieves an 85% self-consumption ratio and a 4.9-year payback, making the upgrade unnecessary.

Utility-Scale: 20 MW Solar Farm

A developer proposes a 20 MW ground-mount project in rural Texas. The substation has only 12 MW of hosting capacity remaining. The interconnection study identifies conductor upgrades on a 5-mile feeder segment costing $2.1M. The developer negotiates a cost-sharing agreement with the utility, adding $0.008/W to the project cost. The project proceeds with a revised financial model that still meets investor return requirements.

Impact on System Design

Hosting capacity directly shapes how solar professionals approach project planning. Solar design software must account for these grid constraints alongside roof area, shading, and consumption data.

Design DecisionAmple Hosting CapacityConstrained Hosting Capacity
System SizeSize to match consumption or maximize roof areaSize to available grid capacity or add storage
Inverter SelectionStandard grid-tied inverterSmart inverter with grid-support functions
Export StrategyUnrestricted grid exportExport-limited or zero-export configuration
Battery StorageOptional for backup/TOU optimizationOften required to capture curtailed energy
Interconnection TimelineFast-track (days to weeks)Supplemental review (weeks to months)
Project CostStandard installation costMay include grid upgrade cost allocation
Pro Tip

Many utilities update hosting capacity maps quarterly. If a project is on a constrained feeder, check again before submitting the interconnection application — a completed grid upgrade or a withdrawn application from another developer may have freed capacity.

Frequently Asked Questions

What is hosting capacity in solar energy?

Hosting capacity is the maximum amount of solar generation that a section of the electric grid can handle without causing voltage problems, equipment overloads, or safety issues. It is specific to each feeder, transformer, and substation. When a proposed solar system exceeds the available hosting capacity, the utility may require grid upgrades or impose export limits before approving interconnection.

How do I check hosting capacity for a project site?

Most major utilities publish interactive hosting capacity maps on their websites. These maps show available capacity by feeder segment, typically color-coded from green (ample) to red (constrained). Search for your utility’s name plus “hosting capacity map” or “DER integration map.” Some states, like California and New York, require all utilities to publish and regularly update these maps.

Can hosting capacity be increased?

Yes, through several approaches. Physical grid upgrades (larger transformers, reconductoring) directly increase capacity. Smart inverters with volt-var and volt-watt functions reduce voltage impact from solar, effectively increasing how much DER the grid can absorb. Battery storage paired with solar reduces peak export levels. Grid modernization programs and advanced distribution management systems also help utilities accommodate more distributed generation.

What happens if my solar system exceeds hosting capacity?

The utility will flag the application during interconnection review. Common outcomes include: requiring the system to be downsized, mandating export limiting, requiring the applicant to fund grid upgrades, or placing the project in a supplemental review queue. The specific outcome depends on how far over the limit the system is, the utility’s policies, and the type of constraint violated. Supplemental reviews can add weeks to months to the project timeline.
