Key Takeaways
- The inverter loading ratio (ILR) equals DC array capacity divided by inverter AC rating
- Also called the DC/AC ratio, DC-to-AC ratio, or oversizing ratio
- Industry standard ranges from 1.1 to 1.3 for most residential and commercial systems
- Higher ratios reduce per-watt inverter costs but increase clipping losses
- The optimal ratio depends on module cost, inverter cost, local climate, and electricity rates
- Inverter manufacturers specify maximum allowable ratios — exceeding them can void the warranty
What Is the Inverter Loading Ratio?
The inverter loading ratio (ILR) is the ratio of a solar array’s total DC nameplate capacity (in watts) to the inverter’s rated AC output capacity (in watts). It quantifies how much the DC array is “oversized” relative to the inverter.
An ILR of 1.0 means the array and inverter are equally sized. An ILR of 1.2 means the DC array is 20% larger than the inverter’s AC rating. The ratio is also commonly referred to as the DC/AC ratio.
Inverter Loading Ratio = Array DC Capacity (W) ÷ Inverter AC Rating (W)For example, a 10 kW DC array paired with an 8 kW AC inverter has an ILR of 10 ÷ 8 = 1.25.
The inverter loading ratio is one of the most consequential design decisions in any solar project. It directly affects system cost, energy production, clipping losses, and long-term financial returns.
Why the ILR Is Almost Always Above 1.0
Solar panels rarely produce their nameplate DC capacity under real-world conditions. The STC (Standard Test Conditions) rating assumes 1,000 W/m² irradiance and 25°C cell temperature — conditions that exist for only brief periods even in ideal climates. In practice, several factors reduce output:
Temperature Losses
Solar panels lose 0.3–0.5% output per degree Celsius above 25°C. On a sunny summer day, cell temperatures can reach 60–70°C, reducing output by 10–20% from nameplate.
Irradiance Variability
Peak irradiance of 1,000 W/m² occurs only briefly around solar noon. During most operating hours, irradiance is well below the STC reference level.
System Losses
DC wiring losses, soiling, mismatch between panels, and shading further reduce the actual DC power reaching the inverter. Total system losses typically amount to 10–15%.
Panel Degradation
Solar panels degrade 0.3–0.5% per year. A system designed with ILR of 1.0 in year one effectively has an ILR below 1.0 by year 10, meaning the inverter is increasingly underutilized.
Because of these factors, an inverter sized at 1:1 with the array sits idle for much of its capacity most of the time. Oversizing the array relative to the inverter keeps the inverter operating closer to its rated capacity for more hours per day, improving the system’s overall economics.

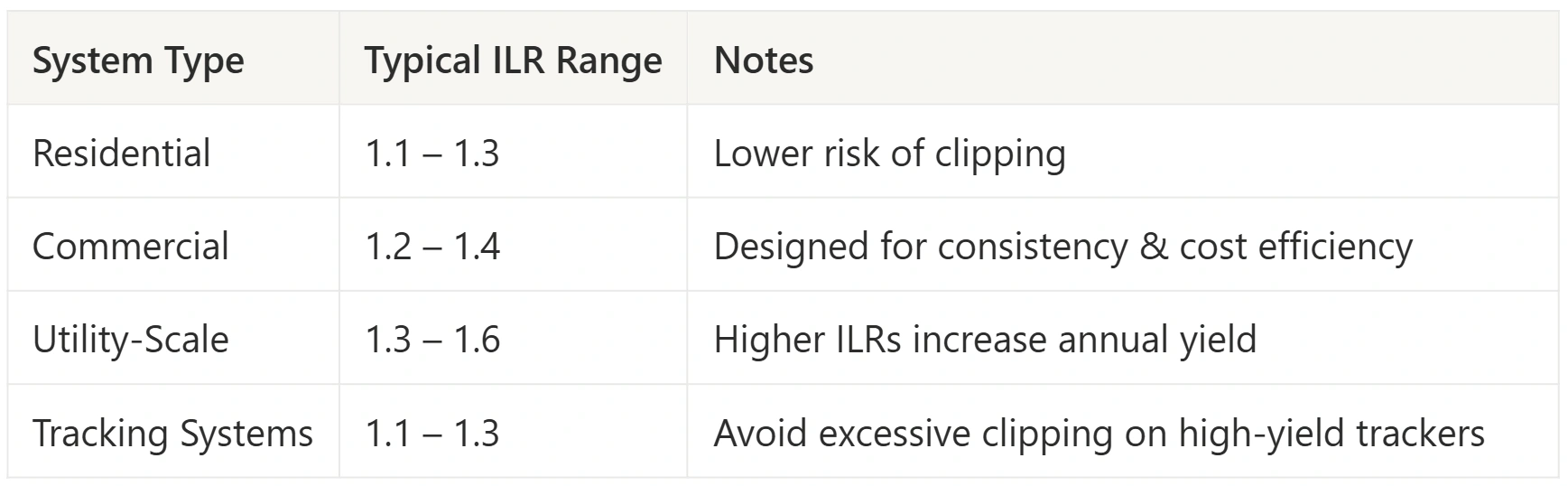

Recommended ILR Ranges
The optimal ILR depends on multiple project-specific factors. Here are general guidelines:
| Scenario | Recommended ILR | Rationale |
|---|---|---|
| High-irradiance location (Phoenix, Southern Spain) | 1.15–1.25 | Higher peak irradiance means more potential clipping at higher ratios |
| Moderate climate (New York, Central Europe) | 1.2–1.3 | Cloudy periods reduce peak output, making higher ratios efficient |
| Cloudy/overcast climate (Seattle, Northern Germany) | 1.25–1.35 | Panels rarely hit nameplate, so higher ratios produce minimal clipping |
| Utility AC cap (interconnection limit) | Up to 1.5+ | When AC export is capped, maximizing DC captures more energy within the limit |
| Battery storage (DC-coupled) | 1.3–1.5+ | Excess DC can charge the battery instead of being clipped |
Don’t rely on national averages. Use solar design software with local TMY weather data to simulate the actual energy gain and clipping loss at different ILR values for each specific project site.
ILR Impact on Energy Production and Cost
Understanding the trade-off between ILR, energy production, and cost is fundamental to system optimization:
More Total Annual Energy
A higher ILR captures more energy during morning, afternoon, and overcast periods. Even after subtracting clipping losses, net annual production increases — up to a point.
Lower Cost per Watt AC
Using a smaller inverter for a given array size reduces the system’s total cost per watt of AC capacity. Inverter cost per watt is typically higher than module cost per watt.
Increased Clipping Losses
Higher ILRs mean more hours of clipping during peak production. The energy loss increases non-linearly — going from 1.2 to 1.3 adds more clipping than going from 1.1 to 1.2.
Warranty Considerations
Exceeding the manufacturer’s maximum allowed ILR voids the inverter warranty. Most manufacturers allow ratios up to 1.33–1.55, but check the specific model’s datasheet.
Practical Guidance
- Run ILR sensitivity analysis. Use solar software to model production at ILR values from 1.0 to 1.4 in 0.05 increments. Plot total energy vs. ILR to find the diminishing returns point.
- Optimize for LCOE, not kWh. The best ILR minimizes the cost per kWh over the system lifetime, not necessarily the one that maximizes total energy. Include module and inverter costs in the analysis.
- Factor in panel degradation. A system that clips 2% in year 1 will clip less each year as panels degrade. Over 25 years, the effective average clipping is lower than the year-1 figure.
- Verify string voltage limits. Higher ILR means more panels, which may require longer strings. Ensure the maximum string open-circuit voltage at minimum temperature stays within the inverter’s MPPT range.
- Check inverter spec sheets carefully. Every inverter model has a maximum DC input power specification. This is the hard limit that determines the maximum allowable ILR for warranty compliance.
- Document the design ILR. Record the intended DC/AC ratio in your project documentation. This is reference material for future troubleshooting and customer questions about system performance.
- Match MPPT channels appropriately. When loading an inverter with a high ILR, distribute the DC capacity evenly across available MPPT channels to avoid overloading a single tracker.
- Consider future expansion. If the customer may add panels later, starting with a slightly larger inverter (lower initial ILR) leaves room for expansion without replacing the inverter.
- Simplify the explanation. Tell customers: “We use a slightly smaller inverter than the panel array, which saves you money with minimal impact on energy production — typically under 2% difference.”
- Highlight the cost-per-watt benefit. Frame the ILR as a smart engineering decision that reduces upfront cost and improves ROI, not as a compromise.
- Use proposal tools to visualize. Solar proposal software that shows daily production curves with and without clipping helps customers understand the minimal real-world impact.
- Address the “mismatch” concern. Some customers worry about a panel-inverter size mismatch. Explain that this is industry-standard practice recommended by inverter manufacturers themselves.
Find the Optimal DC/AC Ratio for Every Project
SurgePV’s simulation engine models clipping losses at any ILR, helping you design systems that balance cost and performance.
Start Free TrialNo credit card required
Real-World Example: ILR Optimization
A commercial rooftop in Austin, Texas — comparing three inverter options for a 100 kW DC array:
| Design Option | Inverter Size | ILR | Annual Production | Clipping Loss | System Cost | LCOE |
|---|---|---|---|---|---|---|
| Option A | 100 kW AC | 1.0 | 148,200 kWh | 0% | $142,000 | $0.038/kWh |
| Option B | 83 kW AC | 1.2 | 146,900 kWh | 0.9% | $135,500 | $0.037/kWh |
| Option C | 77 kW AC | 1.3 | 145,100 kWh | 2.1% | $132,800 | $0.036/kWh |
Option C produces the lowest LCOE despite losing 2.1% to clipping. The $9,200 inverter savings more than compensate for the 3,100 kWh annual energy loss (worth ~$310/year at $0.10/kWh).
When comparing ILR options, always calculate the LCOE over the full system lifetime (25–30 years), including panel degradation. The optimal ILR often shifts higher when you account for panels producing less power in later years, meaning less clipping over time.
Frequently Asked Questions
What is a good inverter loading ratio for solar?
For most residential and commercial solar installations, an inverter loading ratio between 1.1 and 1.3 is standard. The specific optimal value depends on your location’s climate, module costs, inverter costs, and electricity rates. Sunnier locations typically use lower ratios (1.1–1.2) while cloudier climates can go higher (1.25–1.35) with minimal clipping penalties.
What is the difference between inverter loading ratio and DC/AC ratio?
They are the same thing. Inverter loading ratio, DC/AC ratio, DC-to-AC ratio, and oversizing ratio all refer to the same metric: the solar array’s DC nameplate capacity divided by the inverter’s AC output rating. The different terms are used interchangeably across the industry.
Can the inverter loading ratio be too high?
Yes. Excessively high ratios (above 1.5 for most inverters) can void the manufacturer’s warranty and result in significant energy losses from clipping. Each inverter model specifies a maximum allowable DC input power — check the datasheet before designing. Beyond warranty concerns, there is a point where adding more panels provides diminishing returns because too much production is clipped away.
