Solar Safety Compliance Checklist 2026: IEC 62446, NEC 690 & European Standards

A single non-compliant solar installation can cost an installer far more than the profit margin on the job. Fires triggered by undersized DC cables, insurance claims denied because test records were never completed, grid operator fines for missing protection relay documentation — these are not hypothetical scenarios. They happen every year, and they happen to experienced companies that assumed compliance was straightforward.

The regulatory environment for photovoltaic systems has grown significantly more demanding since the last major round of standard revisions. IEC 62446 has been extended with Part 3 covering in-service testing. NEC Article 690 has added module-level rapid shutdown requirements that affect every residential installation on a building. Germany’s DGUV rules now require documented risk assessments before work begins on any rooftop PV array. And across the UK, Europe, and North America, insurers are increasingly demanding commissioning test records as a condition of policy coverage.

This guide consolidates the most critical requirements into a practical, structured checklist. It covers design compliance, pre-installation site assessment, mechanical mounting, DC and AC wiring, inverter installation, IEC 62446 commissioning tests, documentation, country-specific requirements, and ongoing O&M obligations. Use it before every project, not after something goes wrong.

In this guide:

• Latest 2026 updates to IEC 62446, NEC 690, and DGUV standards
• Design compliance checklist with string voltage limits and cable sizing
• Pre-installation site safety requirements
• DC and AC wiring compliance including labelling per IEC 62446
• Full IEC 62446 commissioning test sequence
• Country-specific requirements for UK, Germany, and Italy
• O&M compliance schedule
• How solar design software automates compliance documentation

Latest Updates: Solar Safety Standards 2026

Regulatory requirements for photovoltaic systems are not static. The following changes took effect or were formally adopted in 2025–2026 and apply to new installations in their respective jurisdictions.

IEC 62446-1 (2023 consolidation). The third edition consolidates previous amendments and clarifies minimum test voltage levels for insulation resistance testing: systems above 1,000 V DC must now use a 2,500 V DC test voltage rather than the previously ambiguous guidance. String-level I-V curve testing is now explicitly recommended (rather than merely permitted) for systems above 30 kWp.

IEC 62446-3 (in-service inspection). The second edition adds requirements for drone-based thermographic inspection, including minimum resolution standards and reporting formats. It also introduces a degradation rate benchmark: systems showing more than 1.0% per year average degradation must trigger an investigation report before the next O&M cycle.

NEC 2023 (Article 690). Now adopted by the majority of US jurisdictions. Key changes include updated rapid shutdown compliance for systems with battery storage (690.12), clarified wiring methods for rooftop PV (690.31), and new labelling requirements for multi-source systems. Energy storage systems integrated with PV now also fall under Article 706.

DGUV Information 203-006 (Germany, 2024 revision). Updated pre-work risk assessment protocol now requires documented PV-specific hazard identification before any rooftop work. The revised guidance explicitly addresses DC arc hazards and requires insulating tools rated to at least 1,000 V DC for all DC conductor work.

ENA Engineering Recommendation G99 (UK, Amendment 8, 2025). Extended to cover systems above 50 kWp connected to 11 kV. Additional protection relay settings for rate-of-change-of-frequency (RoCoF) were tightened from 1.0 Hz/s to 0.5 Hz/s for systems installed after July 2025.

VDE-AR-N 4105:2025 (Germany). Updated technical requirements for low-voltage grid connection include revised reactive power capability requirements (cos φ = 0.9 inductive/capacitive from 4.6 kVA onwards) and stricter voltage regulation requirements for systems above 30 kW.

CEI 0-21 (Italy, 2025 update). New anti-islanding test requirements align more closely with IEC 62116:2014. Systems above 200 kW must now provide reactive power support at the point of common coupling.

1. Design Compliance Checklist

Design errors are the root cause of a significant proportion of commissioning failures. Catching them before equipment is ordered or installed eliminates costly rework. Use this checklist during the design review phase for every project.

String Voltage Limits

• Maximum open-circuit voltage (Voc) at minimum site temperature calculated using IEC 60891 temperature correction — not datasheet STC values
• Voc(max) does not exceed inverter maximum DC input voltage (typically 1,000 V or 1,500 V) at any credible temperature condition
• For NEC 690 compliance (US): worst-case Voc calculated using lowest expected ambient temperature per NEC 690.7 (use -40°F/-40°C unless site-specific data justifies a higher value)
• String configuration reviewed for MPPT voltage window: Vmpp(min) at maximum temperature remains above inverter MPPT lower threshold
• Vmpp(max) at minimum temperature remains below inverter MPPT upper threshold
• Multi-string configurations reviewed for current mismatch: strings of different lengths, orientations, or module types not paralleled on a shared MPPT input without independent MPPT channels or blocking diodes

Cable Sizing

• DC string cable sized for minimum 125% of Isc per NEC 690.8 (US) or IEC 60364-7-712 grouping and installation method correction factors (EU)
• Cable cross-section verified for maximum voltage drop: recommended ≤1% on DC strings, ≤1.5% on AC output
• Cable ampacity verified at maximum expected ambient temperature with appropriate derating for conduit fill and burial depth
• Single-core cables used for DC positive and negative conductors routed together to minimise loop inductance and radiated EMI
• Cable insulation rated for UV exposure where installed outdoors (minimum EN 50618 / TÜV 2 PfG 1169 for DC cables)

Inverter Rating

• Inverter AC output current does not exceed rating of the AC overcurrent protective device
• Inverter back-feed current considered where multiple inverters share a feeder — NEC 705.12 sum rule verified
• Inverter efficiency curve reviewed against expected irradiance distribution at site — not just peak STC efficiency
• Inverter IP rating appropriate for installation environment: minimum IP54 for outdoor cabinet, IP65 for directly weather-exposed locations
• String inverter vs. central inverter selection documented with justification (shading tolerance, monitoring granularity, maintenance access)

Protection Coordination

• DC surge protection devices (SPD) specified per IEC 61643-31 category for system DC voltage
• AC surge protection at inverter output and at main distribution board
• Earth fault protection scheme documented: TN-S, TN-C-S, or TT earthing system confirmed with DNO/utility
• Residual current device (RCD) type verified: Type B required for transformerless inverters per IEC 60755 (EU); GFDI per NEC 690.5 (US)

2. Pre-Installation Site Safety Checklist

Before a single panel is lifted onto a roof, the site must be assessed for structural, electrical, and operational hazards. Many installation incidents occur because this step is treated as a formality rather than a genuine engineering assessment.

Roof Structural Load Assessment

• Structural engineer’s report obtained or internal structural assessment completed using local building code load tables
• Dead load of PV array (panels + mounting + snow load in applicable regions) added to existing roof dead/live load and verified within safe limits
• Roof age, condition, and material confirmed: tiles, metal roofing, flat membrane — each has different penetration and ballast requirements
• Wind uplift calculation completed using local wind speed map and array geometry (IEC 61215 or EN 1991-1-4 as applicable)
• Penetration locations marked and confirmed clear of structural members where core-drilled (for flat roofs: confirmed with building owner)

Electrical Isolation and Existing Services

• Existing electrical installation inspected: consumer unit capacity, earthing system type, available outgoing ways
• DNO/utility application submitted and approval received before installation date
• Service entry cable routing confirmed and marked — no PV cable routes across existing service entry without separation
• Existing RCD protection type confirmed: upgrade to Type B required if transformerless inverter is installed on same circuit (EU)
• Generation meter position agreed with DNO/utility
• Isolation and lock-out/tag-out (LOTO) procedure documented for the installation day

Working at Height

• Risk assessment completed per local working-at-height regulation (UK: Work at Height Regulations 2005; Germany: DGUV Rule 112-198; US: OSHA 1926.502)
• Scaffold, mobile elevated work platform (MEWP), or edge protection specified for roof pitch above 12.5° / 22%
• Personal fall arrest equipment (PFAE) selected and inspected
• Rescue plan documented in case of fall or medical emergency on roof
• Weather conditions assessed: installation not to proceed in sustained wind above Beaufort 5 (29–38 km/h) or on wet/icy surfaces

DC Arc Flash and Electrical Safety

• Arc flash hazard assessment completed for DC wiring work: DC arcs do not self-extinguish and present a higher sustained arc energy than equivalent AC faults
• Insulating tools rated ≥1,000 V DC specified for all DC conductor handling
• PPE specified for DC work: arc-rated gloves (minimum ATPV 8 cal/cm²), face shield, and fire-resistant clothing
• DC cable handling procedure documented: no unprotected live conductor work above 120 V DC

3. Mounting and Mechanical Installation Compliance

Mechanical failures in PV mounting systems are a persistent cause of array damage, water ingress, and in extreme cases, roof collapse or panel detachment. Compliance with structural requirements is not optional — it is a building regulation obligation in every jurisdiction.

Rail and Clamp Systems

• Mounting system carries a valid MCS 012 certificate (UK), ETA (European Technical Assessment), or ICC-ES AC 428 evaluation (US)
• Manufacturer’s installation instructions followed exactly — non-standard modifications invalidate certification
• Rail end clearances maintained per manufacturer specification (typically ≥40 mm from last clamp to rail end)
• Mid and end clamp torque values applied using a calibrated torque wrench and recorded in installation records
• Module frame thickness and width confirmed compatible with clamp profile — mixed module types on same rails require verification

Roof Penetrations and Weatherproofing

• Penetration seals use roofing-grade materials compatible with membrane or tile type — not general-purpose silicone
• Flashings installed under tile courses above penetration and over tile courses below, with full overlap per manufacturer’s specification
• All penetrations photographed before closure for as-built records
• Penetration positions avoid valleys, gutters, and low points where water collects

Bonding and Earthing of Mounting Structure

• Mounting rail system bonded to earth in accordance with IEC 60364-7-712 or NEC 690.43
• Continuity of earth bond verified from first to last rail section — not assumed from mechanical connection alone
• Module frames bonded via clamp earth path where manufacturer claims continuity through anodised coating (verify with manufacturer technical data)
• Earthing conductor cross-section: minimum 6 mm² copper for protective earthing of PV array structure (IEC 60364-5-54)

4. DC Wiring Compliance Checklist

DC wiring errors — undersized conductors, incorrect polarity, inadequate protection, and poor conduit fill — are the most common causes of PV system fires. This section consolidates the key requirements from IEC 62446-1, IEC 60364-7-712, and NEC Article 690.

Cable Routing and Separation

• DC positive and negative conductors routed together throughout their length — separated DC conductors create large inductive loops and increase fault current potential
• DC cables separated from AC cables by minimum 50 mm air gap or by metallic partition — no shared conduit for DC and AC unless both are insulated to the highest voltage present
• DC cables not routed through ceiling or floor voids without fire-rated conduit or cable trunking
• Cable supports at maximum 400 mm intervals on horizontal runs, 600 mm on vertical runs (IEC 61386 or manufacturer specification)
• Cables protected from physical damage in all accessible locations: conduit, trunking, or cable management from roof penetration to inverter

DC Overcurrent Protection

• String fuses or combiners provided where more than two strings are paralleled (IEC 60364-7-712 Clause 712.9.1)
• Fuse rating selected to protect cable ampacity, not module Isc — common error is specifying fuse equal to module Isc without applying cable derating
• DC-rated fuses used (AC fuses do not interrupt DC current reliably at PV system voltages)
• DC isolator (disconnect switch) installed at inverter DC input: rated for DC voltage and current, lockable, visible from inverter
• Additional DC isolator at array combiner where combiner is not within sight of inverter

Connectors

• Only compatible connector pairs mated: MC4 to MC4, Amphenol to Amphenol — cross-mating different brands is prohibited by IEC 62852 and creates contact resistance faults
• Connectors inspected for correct crimp — cable pull-out force test recommended per IEC 62852
• No exposed connector pins at any point in the system — all unused connectors capped with manufacturer-supplied dust caps
• Connectors rated for system DC voltage and for outdoor/UV exposure

Labelling per IEC 62446

• DC string cables labelled at each end with string identifier, polarity, and source circuit identification
• Combiner box labelled with maximum system voltage, maximum current, and shock hazard warning
• Inverter DC terminals labelled with string assignment
• Warning labels on all junction boxes: “CAUTION: DOUBLE POLE — PV ARRAY CONDUCTORS MAY BE ENERGISED IN DAYLIGHT”
• Arc flash warning label on DC isolator (US: NFPA 70E; EU: IEC 60417 symbols)
• Rapid shutdown labels (US only, NEC 690.56): compliant label on main electrical panel or at rapid shutdown initiator location

5. Inverter Installation Compliance Checklist

The inverter is the most electrically complex component in a PV system and one of the most common sources of compliance failures at inspection. Installation requirements cover physical placement, environmental protection, ventilation, and AC interface configuration.

Physical Installation

• Inverter mounted on non-combustible surface or with non-combustible backing board (minimum A2 classification per EN 13501-1 for EU; non-combustible per NEC 690.15 for US)
• Minimum clearances maintained per manufacturer specification: typically 200–300 mm above and below for convection cooling, 100 mm sides
• Inverter not installed in direct sunlight unless rated for it — most residential string inverters derate above 45°C ambient and will throttle output
• Ventilation path unobstructed: no storage, no insulation, no ductwork blocking airflow through/around inverter
• Inverter installed above flood level or in a location protected from water accumulation

IP Rating Verification

• IP rating of inverter matched to installation environment:
  • Indoor dry location: minimum IP20
  • Indoor garage/plant room: minimum IP44
  • Outdoor wall-mounted: minimum IP54
  • Directly weather-exposed (no overhang): minimum IP65
• IP rating of DC isolator and AC isolator matched to their installation environment
• Cable gland IP ratings maintain enclosure rating at every cable entry

Inverter Configuration

• Grid parameters programmed to local utility specification: voltage range, frequency range, reconnect delay
• Anti-islanding function enabled and set to local standard: VDE-AR-N 4105 (Germany), ENA G99 (UK), CEI 0-21 (Italy), IEEE 1547/UL 1741 (US)
• Export limitation (zero export or capped export) configured where required by DNO/utility approval
• Remote monitoring enabled and login credentials documented in handover pack
• Reactive power settings configured per grid code (EU: cos φ = 0.9 or Q(U) characteristic per VDE-AR-N 4105/G99)

NEC 690 Rapid Shutdown (US Only)

• Rapid shutdown system (RSS) installed for all PV arrays installed on buildings (NEC 690.12)
• RSS initiator labelled and accessible from location agreed with local AHJ
• RSS tested: conductor voltages inside array boundary reduced to ≤80 V within 30 seconds
• RSS test result documented with measured voltages at boundary test points

6. AC Connection and Grid Protection Relay Checklist

The AC connection point is where the PV system interfaces with the grid, and errors here directly affect grid stability, metering accuracy, and protection coordination. Grid operators treat incorrectly configured protection relays as a serious compliance failure.

AC Wiring

• AC output cable sized for 125% of inverter rated output current (NEC 705.60; EU: IEC 60364-7-712 with installation method correction)
• AC cable route kept separate from DC routes
• Generation meter installed at agreed location — confirmed with DNO/utility before energisation
• Bidirectional or import/export meter confirmed where net metering, feed-in tariff, or export limiting applies
• AC isolator between inverter and grid — rated for AC voltage and current, lockable, visible and accessible

Protection Relay Settings (EU/UK)

• Under/overvoltage protection settings verified against grid code requirements:
  • UK ENA G99: 0.94–1.10 pu (continuous), 1.14 pu (0.5 s trip)
  • Germany VDE-AR-N 4105: 0.85–1.10 pu
  • Italy CEI 0-21: 0.85–1.10 pu with stage 2 at 0.80/1.15 pu
• Under/overfrequency protection settings verified:
  • UK ENA G99: 47.0–52.0 Hz (trip within defined time)
  • Germany VDE-AR-N 4105: 47.5–51.5 Hz
  • Italy CEI 0-21: 47.5–51.5 Hz
• Rate-of-change-of-frequency (RoCoF) relay set per local code: UK G99 Amendment 8 (post July 2025 installations): 0.5 Hz/s
• Vector shift (loss-of-mains) protection verified where required by local grid code
• Protection relay type approval certificate or inverter embedded protection compliance document in project file
• Witness test of protection relay performed with DNO engineer where required by grid operator (typically required for G99 Type B/C in UK, systems >30 kW in Germany)

Earthing and Neutral

• Earthing system confirmed: TN-S, TN-C-S, or TT — earthing arrangement must match inverter earth fault detection scheme
• Neutral conductor isolated where required for TT system with floating inverter (no galvanic connection to mains neutral)
• Main protective bonding of PV array structure connected to installation earth at single point only — multiple earth connections create circulating currents

7. IEC 62446 Commissioning Tests — Complete Sequence

IEC 62446-1 defines the minimum commissioning test sequence for grid-connected PV systems. Tests must be performed before the system is energised and connected to the grid. Results must be recorded in writing, with pass/fail criteria referenced to the standard. This is the most frequently incomplete section of documentation in compliance audits.

Step 1: Visual Inspection

Before any electrical test, perform a systematic visual inspection and record findings:

• All modules installed per design layout — quantity, type, and orientation match design drawings
• Module nameplate data verified against specification (Voc, Isc, Pmax, model, manufacturer)
• No physical damage to modules: cracked glass, delamination, cell cracks, discoloured encapsulant
• All connectors mated correctly and locked — no unmated or partially mated connectors
• Cable management complete: no chafing, no sharp bends below minimum bend radius, no exposed conductors
• All labels present and legible: string IDs, polarity markers, warning labels, rapid shutdown (US)
• Mounting rail condition: no corrosion, no deformation, no loose fasteners
• Roof penetrations sealed and weatherproofed
• Inverter: no physical damage, ventilation clear, all cable glands tightened
• All junction boxes closed and fastened

Step 2: Continuity of Protective Earth Conductors

Test method: Low-resistance ohmmeter (test current ≥200 mA per IEC 61557-4)

• Continuity verified from module frame to mounting rail (each rail section)
• Continuity verified from mounting rail to building earth terminal
• Result recorded in Ω — acceptable limit: typically ≤0.1 Ω for protective earth path up to 5 m length (verify per IEC 60364-6)
• Test instrument calibration date recorded

Step 3: Polarity Verification

Test method: Approved DC voltmeter or PV multimeter before any string connection to combiner or inverter

• Each string positive conductor verified positive with respect to negative at the inverter DC terminals
• Measured open-circuit voltage of each string within ±5% of calculated Voc at measured irradiance and module temperature
• Polarity verification performed before parallel connection of strings — reverse polarity strings connected in parallel cause immediate damage
• Results tabulated by string identifier

Step 4: Insulation Resistance Test

Test method: Insulation resistance tester (IEC 61557-2)

• Test voltage: 500 V DC for systems ≤1,000 V; 1,000 V DC for systems up to 1,500 V (IEC 62446-1:2023 update: 2,500 V for >1,000 V systems)
• Test performed with all string connectors joined, DC isolator open, and inverter disconnected
• Positive string to earth measured
• Negative string to earth measured
• Minimum acceptable result: 1 MΩ (IEC 60364-7-712)
• If result is below 1 MΩ: isolate strings individually to locate fault — do not commission system
• Results recorded in MΩ with test voltage, ambient temperature, and humidity noted

Step 5: String Open-Circuit Voltage Check

• Each string measured individually at the inverter DC terminals with other strings isolated
• Measured Voc compared to calculated Voc corrected for measured module temperature and irradiance (minimum 200 W/m² for reliable comparison)
• Deviation of more than ±5% from calculated value triggers investigation before commissioning
• Results recorded by string with irradiance (W/m²) and module temperature (°C) at time of test

Step 6: String Short-Circuit Current Check (where conditions allow)

• Short-circuit current measured using a calibrated DC clamp meter or I-V tracer
• Measured Isc compared to expected Isc corrected for irradiance (minimum 600 W/m² for reliable Isc measurement)
• Significant deviation (>5%) between strings of identical configuration indicates a module fault, mismatched wiring, or connection problem
• Results recorded by string with irradiance at time of test

Step 7: I-V Curve Trace (Recommended above 30 kWp; required in some jurisdictions)

• I-V curve measured for each string using a calibrated I-V tracer with irradiance and temperature sensors
• Curve shape reviewed for flat Isc region (confirms no shading or bypass diode activation at test conditions), no steps (would indicate disconnected modules or mismatched strings), and clean knee point
• Measured Pmax compared to calculated string Pmax at measured irradiance and temperature — deviation >5% triggers module-level investigation
• I-V trace files exported and stored in project documentation

Step 8: Functional Test of Protection Devices

• Anti-islanding function tested per inverter manufacturer’s procedure or grid code test method
• DC ground fault detection (GFDI) tested: US systems per NEC 690.5
• Arc fault circuit interrupter (AFCI) tested: US systems where required by NEC 690.11
• Residual current device (RCD) tested using calibrated RCD tester: trip time and current recorded
• Protection relay settings verified as configured — confirm display values match site-specific settings

8. Documentation Requirements per IEC 62446

IEC 62446-1 specifies a minimum documentation set that must be provided to the customer at handover and retained by the installer. Inadequate documentation is both a compliance failure and a significant liability exposure — if a fault occurs years later and your records cannot demonstrate the system was correctly commissioned, you may face assumed liability.

As-Built Drawings

• Site plan showing array position, orientation, and shading obstruction locations — updated to reflect any design changes made during installation
• Single-line electrical diagram: string configuration, inverter connections, AC connection, earth arrangement, protection devices
• Roof plan with module layout, rail positions, and penetration locations
• Cable routing diagram: DC string cables, AC output cable, earth cable, data/communication cables
• Equipment schedule: make, model, serial number, and rating for all major components (modules, inverter, mounting, isolators, meters, protection relays)

Test Records

• Visual inspection checklist — signed and dated by the responsible engineer
• Continuity test results — instrument ID, calibration date, measured values, pass/fail
• Polarity verification results — tabulated by string
• Insulation resistance results — test voltage, instrument ID, measured values in MΩ, ambient conditions
• Open-circuit voltage results — tabulated by string, with irradiance and module temperature
• Short-circuit current results (where measured) — tabulated by string, with irradiance
• I-V curve files (where applicable) — exported from tracer with metadata
• Protection device test results — including RCD trip time, AFCI test result, anti-islanding test confirmation

Handover Pack Contents

• All manufacturer data sheets and installation manuals for modules, inverter, and mounting system
• Warranty documentation: module power warranty, product warranty, inverter warranty
• Grid connection approval documentation from DNO/utility
• Building permit/planning approval documents
• Electrical installation certificate (UK: NIC/EIC Form; Germany: Inbetriebsetzungsprotokoll; Italy: dichiarazione di conformità)
• Monitoring system login credentials and usage guide
• Recommended maintenance schedule (O&M guide)
• Emergency shutdown procedure — laminated copy to be affixed adjacent to rapid shutdown initiator or main isolator

9. Country-Specific Compliance Requirements

While IEC standards provide a common technical baseline, grid connection and building regulation requirements vary significantly by jurisdiction. The following summaries cover the three major European markets plus the US requirements that apply alongside NEC 690.

United Kingdom: ENA G98 and G99

The Energy Networks Association Engineering Recommendations G98 and G99 govern grid connection of distributed generation in Great Britain.

G98 (systems ≤16 A/phase, ≤3.68 kW single-phase):

• Type-approved inverter with G98 embedded protection — no separate relay required
• DNO notification required within 28 days of commissioning (not prior approval)
• Anti-islanding and voltage/frequency protection settings factory-set to G98 values — do not modify
• G98 notification form submitted to DNO with inverter model and installation date

G99 Type A (>3.68 kW and ≤50 kW):

• Prior application to DNO required — allow 21 days for approval
• Commissioning notification submitted to DNO after installation with commissioning test results
• Protection relay settings confirmed: V<0.94 pu (1.0 s), V>1.10 pu (1.0 s), V>>1.14 pu (0.5 s), f<47.0 Hz (20 cycles), f>52.0 Hz (20 cycles)
• RoCoF: 0.5 Hz/s (30-cycle measurement window) for installations after July 2025

G99 Type B (>50 kW and ≤10 MW):

• Full application with protection relay settings and connection agreement required
• Staged commissioning test with DNO engineer witness required before energisation
• Fault level contribution documented
• Annual protection relay test required and result submitted to DNO

Building Regulations:

• MCS 012 certification for mounting system (or structural engineer sign-off for non-standard systems)
• Part P building regulations notification for electrical installation (England and Wales)
• Scottish Building Regulations Section 4.10 for electrical
• Planning permission confirmed (most domestic installations permitted development, but check local authority conditions)

Germany: VDE-AR-N 4105 and DGUV

Germany has one of the most prescriptive technical standards for low-voltage grid connection in Europe.

VDE-AR-N 4105:2025 Requirements:

• Application to local grid operator (Netzbetreiber) submitted and approval received before installation
• Inverter on approved equipment list (Geräteliste) of the relevant VDE group
• Reactive power settings programmed: cos φ fixed 0.9 (for systems 3.68–13.8 kVA), or Q(U) characteristic (for systems >13.8 kVA)
• Frequency-dependent active power reduction (FRT) capability confirmed for systems >30 kW
• 70% export limitation (Einspeisebegrenzung) applied where required by grid operator
• Inbetriebsetzungsprotokoll (commissioning record) completed and submitted to Netzbetreiber within 30 days of commissioning

DGUV Pre-Work Requirements:

• Risk assessment (Gefährdungsbeurteilung) completed before rooftop work begins — specific to the PV installation task
• DC arc flash hazard explicitly addressed in risk assessment
• Insulated tools (1,000 V DC rated) specified for all DC work
• Fall protection plan documented for all rooftop work
• Rescue plan (Rettungsplan) documented and communicated to all workers on site

Registration Requirements:

• Registration in Marktstammdatenregister (MaStR) — the national energy system register — within one month of commissioning. Systems above 100 kW require additional technical data submission
• EEG (Erneuerbare-Energien-Gesetz) feed-in tariff application submitted to Netzbetreiber if applicable

Italy: CEI 0-21 and GSE Registration

Italy’s grid connection standard CEI 0-21 and the GSE (Gestore dei Servizi Energetici) registration process govern PV system connection and incentive eligibility.

CEI 0-21 Technical Requirements:

• Inverter holds CEI 0-21 type test certification — verify on manufacturer’s compliance declaration
• Voltage and frequency protection settings match CEI 0-21 Annex A:
  • V<0.85 pu (0.2 s trip), V<0.80 pu (0.1 s trip)
  • V>1.10 pu (0.2 s trip), V>1.15 pu (0.1 s trip)
  • f<47.5 Hz, f>51.5 Hz (0.1 s trip)
• Anti-islanding test performed and certificate obtained (IEC 62116 method)
• For systems above 200 kW: reactive power support at PCC configured as per 2025 update

GSE Connection and Incentive Registration:

• GAUDÌ (Gestione delle Anagrafiche Uniche degli Impianti) registration completed with Terna via GSE portal before grid connection
• Dichiarazione di conformità (declaration of conformity) prepared per DM 37/2008 — must be issued by a qualified electrician (Abilitato)
• Pratica SUAP/SCIA submitted to municipal authority where required (systems above 20 kW on commercial premises typically require PAUR or SCIA procedure)
• Conto Energia legacy tariff status confirmed if installation is a repowering — new installations access the Quinto Conto Energia mechanism

Electrical Certification:

• Dichiarazione di conformità covers the PV system as a modification to the electrical installation
• INAIL (Istituto Nazionale Assicurazione Infortuni sul Lavoro) notification for systems above 30 kW (notification of new electrical plant to INAIL within 30 days)

10. Maintenance and O&M Compliance Schedule

Compliance does not end at commissioning. IEC 62446-3, insurance policy conditions, and in many jurisdictions building maintenance regulations impose ongoing inspection and testing obligations. A solar system that passes commissioning but is never subsequently inspected accumulates risk with every passing season.

Annual Inspections

These should be performed within 12 months of commissioning and annually thereafter:

• Visual inspection of all accessible module surfaces: soiling, bird fouling, shade from new obstructions, physical damage, discolouration
• Visual inspection of all DC cabling: cable ties intact, no chafing, no UV degradation of outer sheath, no physical damage from vermin or weather
• Inspection of all connectors: no corrosion, no connector mated-pair separation, no connector burning or heat damage (check with IR thermometer or thermal camera if accessible)
• Inverter: air filter cleaned if fitted, ventilation clear, no error codes logged, firmware updated to current version
• Mounting structure: all visible fasteners tight, no corrosion, no rack deformation, no movement of flashings or penetration seals
• Generation data review: monthly yield comparison against modelled expectation and previous year actuals

Thermographic Inspection (IEC 62446-3)

• Thermographic inspection within first year of operation — establish baseline thermal fingerprint of array
• Subsequent thermographic inspection every 2–3 years (commercial/industrial); every 3–5 years (residential)
• Inspection performed at irradiance above 600 W/m² with system generating
• Any module showing hotspot temperature differential >20 K above adjacent modules flagged for investigation
• Any string combiner showing temperature differential on fuse terminals >5 K investigated — indicates resistance fault
• Thermographic report prepared to IEC 62446-3 format and retained in O&M records

Periodic Electrical Testing

• Insulation resistance test repeated every 5 years or after any lightning event, flood, or significant physical damage
• RCD trip test annually using calibrated RCD tester — trip time and current recorded
• Protection relay settings verification every 5 years — confirm settings have not drifted or been reset by firmware update
• Earth continuity resistance check every 5 years

Inverter Maintenance

• Inverter service per manufacturer’s maintenance schedule — typically every 5–10 years for electrolytic capacitor replacement and thermal interface material renewal in string inverters
• Fan replacement per manufacturer’s recommendation or at first sign of fan noise
• Firmware update log maintained — not all firmware updates are mandatory, but security-relevant updates should be applied within 90 days of release

How Solar Design Software Automates Compliance Documentation

The single largest operational bottleneck for most PV installation companies is not the physical installation — it is the documentation. Calculating worst-case string voltages, sizing cables with correct derating factors, preparing IEC 62446 test sheets, and assembling handover packs typically consumes 3–6 hours per residential project and significantly more for commercial sites. That time compounds across every project in the pipeline.

Modern solar design software addresses this by generating compliance-relevant outputs directly from the design model, rather than requiring separate manual document preparation.

String voltage compliance. When you enter module specifications, site location, and string configuration into solar software, worst-case Voc at minimum temperature is calculated automatically using the temperature coefficient from the datasheet and ASHRAE or ERA5 climate data for the site. The result is compared against the inverter maximum input voltage and flagged if the margin is insufficient — before the design is finalised, not during commissioning when modules are already on the roof.

Cable sizing with derating. Cable cross-section calculations in compliant solar design software apply installation method correction factors (grouping, burial depth, ambient temperature) per IEC 60364-5-52 or NEC 310. The output is a cable schedule that specifies conductor size, maximum current, voltage drop, and the standard clause used — ready for inclusion in the design documentation.

IEC 62446 test sheets. Pre-filled commissioning test forms are generated from the design data: string identifiers, expected Voc at multiple irradiance levels, insulation resistance pass limits, and equipment serial numbers are pre-populated. The engineer completes the measured values in the field and signs the form — eliminating the manual transcription step that introduces errors and delays.

As-built drawing generation. When design changes are made during installation — a string reconfiguration, a module substitution, a cable route change — the as-built drawing is updated in the software and re-exported, rather than being manually redrawn or, worse, left to diverge from reality. The final as-built package includes the single-line diagram, roof plan, cable routing, and equipment schedule in a format suitable for the handover pack.

Shadow analysis integration. Compliance with IEC 62446 requires that shading losses are disclosed and that the design accounts for them accurately. Integrated solar shadow analysis software calculates hour-by-hour shade factors and identifies obstruction sources — results that feed directly into yield simulations and can be included in the design compliance documentation as evidence of due diligence in system design.

Country-specific grid code outputs. For projects in the UK, Germany, Italy, or other regulated markets, the software can generate grid connection application supporting documents pre-filled with the inverter protection settings, installed capacity, and site location data required by the local grid operator — reducing the administrative burden of multi-jurisdiction project portfolios.

For a deeper look at the installation workflow that underpins a compliant PV project, see our solar panel installation guide. For the design principles that drive compliant electrical design decisions, the solar design principles for installers guide covers the underlying technical framework. And if fire safety compliance is a particular concern for your projects, the solar fire safety guide for Europe addresses the building regulation and fire service requirements that apply to rooftop arrays.

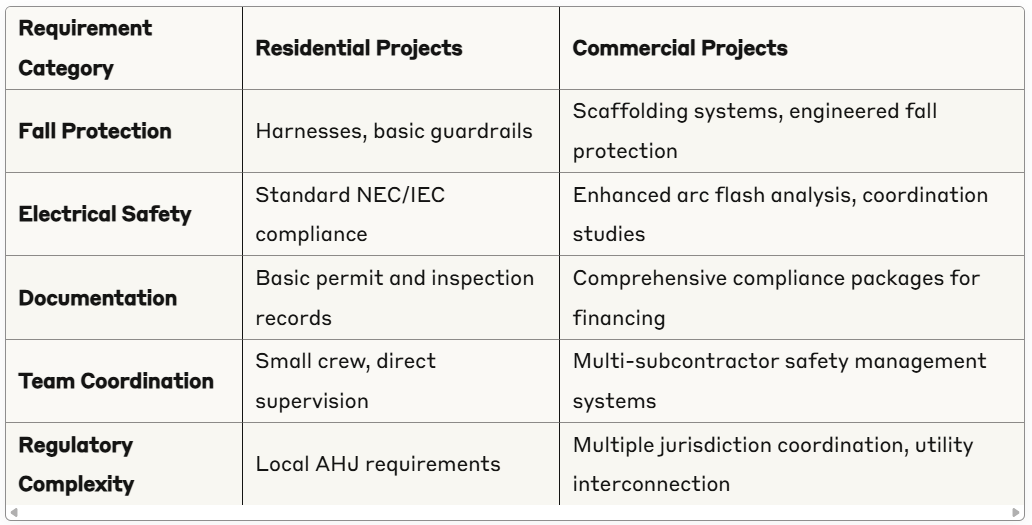

Regional Quick-Reference: Compliance Matrix

Frequently Asked Questions

What is IEC 62446 and why does it matter for solar installers?

IEC 62446 is the international standard governing the minimum documentation and testing requirements for grid-connected photovoltaic systems. It defines what inspections, measurements, and records must be completed before handover to the customer. For installers, compliance with IEC 62446 is increasingly required by grid operators, insurers, and building authorities, and failure to meet it can void equipment warranties and expose companies to liability if a fault causes fire or injury.

What safety tests are required before commissioning a solar system?

IEC 62446-1 mandates a specific sequence of commissioning tests: continuity testing of protective earth conductors, polarity verification of DC strings, insulation resistance measurement (minimum 1 MΩ per IEC 60364-7-712), open-circuit voltage check of each string, short-circuit current verification, and a functional test of all protection devices including the anti-islanding relay. In some jurisdictions, an I-V curve trace per string is also required to detect shading, soiling, or degraded modules before energisation.

How does NEC Article 690 differ from IEC 62446?

NEC Article 690 is the US electrical code governing solar PV installation safety, focusing on wiring methods, overcurrent protection, rapid shutdown, and equipment ratings. IEC 62446 is a commissioning and documentation standard that applies after installation. In practice, US installers must comply with both: NEC 690 during the installation phase (inspected by the AHJ) and IEC 62446 for commissioning test records and handover documentation, which is increasingly required by utilities and O&M contracts.

What is the difference between IEC 62446-1 and IEC 62446-3?

IEC 62446-1 covers the initial documentation and testing requirements for grid-connected PV systems at commissioning. IEC 62446-3 addresses in-service testing, inspection, and condition monitoring of operational PV systems, including thermographic inspection, I-V curve analysis, and insulation resistance trending. Installers are primarily responsible for IEC 62446-1 compliance; IEC 62446-3 becomes relevant for O&M contractors and asset managers performing periodic condition assessments.

What rapid shutdown requirements apply under NEC 690 in 2026?

NEC 690.12 requires that PV system conductors on or in buildings be reduced to not more than 80 V within 30 seconds of rapid shutdown initiation. Systems installed after the 2017 NEC cycle must use module-level power electronics (MLPEs) or listed rapid shutdown systems for arrays on buildings. The 2023 NEC edition, now adopted by most US states, also clarifies labelling requirements for rapid shutdown initiators and adds requirements for systems with battery storage.

How often should a solar system be inspected for O&M compliance?

IEC 62446-3 recommends a baseline thermographic inspection within the first year of operation, then every two to three years for commercial systems. Annual visual inspections should check mounting integrity, cable condition, junction box seals, and inverter ventilation. Insulation resistance tests should be repeated every five years or after any significant weather event. For large commercial and industrial systems, continuous monitoring data should be reviewed monthly to detect string underperformance before it becomes a safety or yield issue.
