Key Takeaways
- A grid-tied solar system connects directly to the utility grid, eliminating the need for battery storage
- Excess solar production is exported to the grid for credits through net metering programs
- Grid-tied systems account for over 90% of residential and commercial solar installations
- They require a grid-tie inverter and interconnection agreement with the local utility
- System sizing depends on consumption patterns, export credit rates, and local utility policies
- Grid-tied systems shut down automatically during power outages to protect utility workers (anti-islanding)
What Is a Grid-Tied System?
A grid-tied system (also called a grid-connected or grid-interactive system) is a solar photovoltaic installation that operates in parallel with the utility electrical grid. The system feeds solar electricity into the building’s electrical panel, where it powers on-site loads first. Any surplus generation flows to the utility grid, and any deficit is drawn from the grid — all without interruption.
Unlike an off-grid system that requires batteries and operates independently, a grid-tied solar system uses the utility grid as its backup power source and energy storage mechanism. This makes grid-tied installations simpler, less expensive, and more practical for the vast majority of solar projects. Solar design software must account for grid interconnection requirements, export limits, and utility rate structures when modeling these systems.
Grid-tied systems are the default architecture for residential and commercial solar. They offer the lowest installed cost per watt and the fastest payback period because they avoid the expense of battery storage while still capturing value from every kWh produced.
How Grid-Tied Systems Work
Understanding how a grid-tied solar system operates is fundamental for accurate system design and customer education. Here’s the step-by-step process:
Solar Panels Generate DC Power
Photovoltaic modules absorb sunlight and convert it into direct current (DC) electricity. Output varies with irradiance, temperature, and shading conditions throughout the day.
Inverter Converts DC to AC
A grid-tie inverter converts DC electricity to alternating current (AC) that matches the grid’s voltage, frequency, and phase. String inverters, microinverters, and power optimizers all serve this function.
On-Site Loads Consume First
Solar-generated AC electricity flows to the building’s electrical panel and supplies active loads — appliances, HVAC, lighting — before any energy reaches the grid.
Surplus Exports to the Grid
When solar production exceeds on-site demand (common during midday), excess electricity flows through the bi-directional meter to the utility grid.
Grid Supplies Deficit Periods
At night, during cloudy weather, or when demand exceeds production, the building draws electricity from the grid seamlessly. The transition is instantaneous and invisible to occupants.
Anti-Islanding Protection
If the grid goes down, the inverter automatically disconnects the system within milliseconds. This prevents backfeed that could endanger utility line workers performing repairs.
Net Grid Exchange = Total Energy Consumed − Total Solar Energy ProducedTypes of Grid-Tied Systems

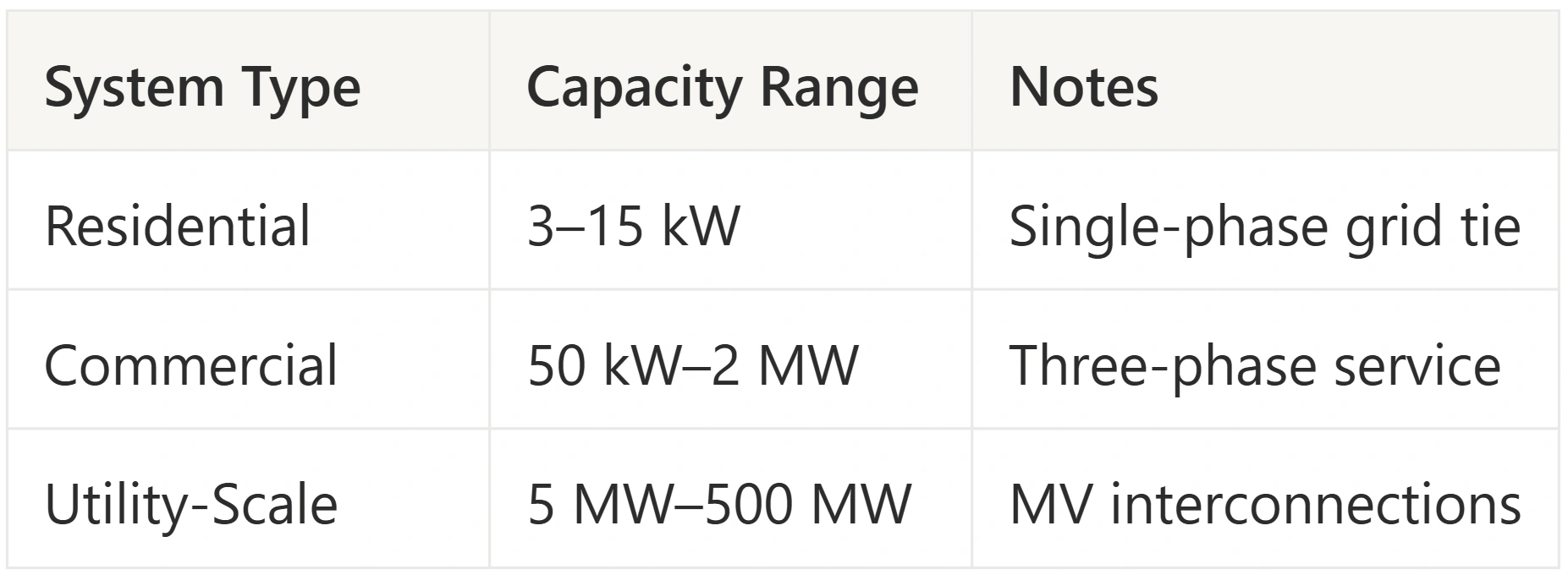

Grid-tied solar systems come in several configurations, each suited to different project requirements and grid conditions.
Pure Grid-Tied (No Battery)
The simplest and most cost-effective configuration. Solar panels and inverter connect directly to the grid with no on-site storage. Relies entirely on the grid for backup power and captures export value through net metering.
Grid-Tied with Battery Backup
Adds a battery system for backup power during outages and peak demand shaving. The system remains grid-connected but can island (disconnect and operate independently) during grid failures using a hybrid inverter.
Grid-Tied with Export Limiting
Configured to restrict or eliminate grid exports — required in some jurisdictions or by certain utilities. The inverter curtails production when on-site consumption is low, reducing total energy yield but meeting regulatory constraints.
Grid-Tied Hybrid System
Combines solar with other distributed energy resources — wind turbines, generators, or fuel cells — all connected to the grid. Common in commercial and industrial applications where load profiles require diversified generation sources.
When designing a grid-tied system with export limiting, use solar software that can model curtailment losses. A system that curtails 15% of production during low-demand hours may still be more cost-effective than adding batteries, depending on local electricity rates and incentive structures.
Key Metrics & Calculations
Designing and evaluating grid-tied solar systems requires tracking several performance and financial metrics:
| Metric | Unit | What It Measures |
|---|---|---|
| System Capacity | kWp / kW | Peak DC power output under standard test conditions |
| Specific Yield | kWh/kWp | Annual energy production per installed kilowatt-peak |
| Self-Consumption Ratio | % | Share of solar generation consumed on-site |
| Grid Export Ratio | % | Share of solar generation sent to the grid |
| Performance Ratio | % | Actual output vs. theoretical maximum (accounts for all losses) |
| Capacity Factor | % | Actual output vs. output if system ran at full capacity 24/7 |
Annual Savings = (Self-Consumed kWh × Retail Rate) + (Exported kWh × Export Credit Rate) − Annual Grid ChargesPractical Guidance
A grid-tied solar system touches every stage of the project lifecycle. Here’s role-specific guidance for getting the design and deployment right:
- Size to the consumption profile. In markets with reduced export credits, oversizing a grid-tied system creates diminishing returns. Match system output to annual consumption within 100–110% in net metering markets, or 80–90% in net billing markets.
- Model inverter clipping carefully. Grid-tied inverters have maximum AC output ratings. A DC/AC ratio above 1.2 can improve early morning and late afternoon production but causes midday clipping. Use solar panel design software to quantify the tradeoff.
- Check utility export limits. Some utilities cap grid exports at a percentage of the service panel rating or transformer capacity. Design within these limits to avoid interconnection delays or mandated curtailment.
- Account for voltage rise. Long wire runs between the inverter and point of common coupling can cause voltage rise issues that trigger inverter shutdowns. Run voltage drop calculations during design, not after installation.
- File interconnection applications early. Utility approval timelines range from two weeks to six months. Submit the application as soon as the customer signs the contract to avoid project delays.
- Verify transformer capacity. In neighborhoods with high solar penetration, the local distribution transformer may already be near capacity. Coordinate with the utility to confirm available hosting capacity before finalizing the design.
- Test anti-islanding before commissioning. Grid-tied inverters must disconnect within 2 seconds of detecting a grid outage (per IEEE 1547). Verify this function during commissioning to pass inspection and protect worker safety.
- Install monitoring from day one. Production monitoring validates system performance and catches issues early. Most grid-tie inverters include built-in monitoring — configure it during installation, not as an afterthought.
- Explain the grid-as-battery concept. Homeowners often assume they need batteries. Explain that a grid-tied system uses the grid as virtual storage — excess production earns credits that offset nighttime and winter consumption.
- Address the outage question upfront. Grid-tied systems without batteries do not provide backup power. Set this expectation early and position battery-backed grid-tied systems as the upgrade path for customers who want outage protection.
- Use accurate financial projections. Model savings with the customer’s actual utility rate, local net metering rules, and realistic production estimates. Overpromising on savings damages trust and generates complaints post-installation.
- Compare grid-tied vs. off-grid costs. A grid-tied system typically costs 30–50% less than an equivalent off-grid system because it eliminates batteries, charge controllers, and backup generators. Lead with the cost advantage.
Design Grid-Tied Systems with Confidence
SurgePV models grid interconnection, export limits, and utility rate structures in every solar proposal — so your designs are accurate from day one.
Start Free TrialNo credit card required
Real-World Examples
Residential: 8 kW Grid-Tied Rooftop
A homeowner in Texas installs an 8 kW grid-tied system with a string inverter and no battery. The system produces approximately 12,000 kWh annually against household consumption of 14,500 kWh/year. Under the utility’s buyback program at $0.097/kWh (vs. $0.128/kWh retail), the system offsets 78% of the annual electricity bill. Self-consumption ratio sits at 55%, with the remaining 45% exported for credits. Payback period: 6.2 years.
Commercial: 150 kW Warehouse Installation
A logistics warehouse in Germany installs a 150 kW grid-tied system with export limiting set to 70% of peak capacity (per German feed-in regulations). Daytime operations drive a high self-consumption ratio of 68%. Curtailment losses total only 3.2% annually because the load profile aligns well with production. The system saves approximately EUR 28,000/year and achieves payback in 7.1 years.
Multi-Site: Community Solar Grid-Tied Array
A 2 MW community solar installation in Minnesota connects to the medium-voltage distribution grid under a community solar garden program. 200 subscribers receive virtual net metering credits on their utility bills. Each subscriber’s credit allocation is proportional to their subscription size. The project generates approximately 3,200 MWh annually, with all production exported and credited at the applicable community solar rate.
Impact on System Design
The choice of grid-tied configuration directly affects how solar professionals approach each project:
| Design Decision | Pure Grid-Tied | Grid-Tied + Battery |
|---|---|---|
| Installed Cost | $2.50–3.50/W (lowest) | $4.00–6.00/W (battery adds $1.50–2.50/W) |
| System Complexity | Simple — panels, inverter, meter | Moderate — adds battery, hybrid inverter, transfer switch |
| Backup Power | None — shuts down during outages | Yes — powers critical loads during outages |
| Self-Consumption | 30–60% typical | 60–90% typical |
| Best Market Fit | Strong net metering, reliable grid | Weak net metering, frequent outages, TOU rates |
When comparing grid-tied vs. off-grid options for a customer, focus on the 30–50% cost savings of grid-tied systems. Reserve off-grid recommendations for locations where grid connection costs exceed $25,000–50,000 or where the grid is genuinely unreliable. For most urban and suburban projects, grid-tied is the clear winner on economics.
Frequently Asked Questions
What is a grid-tied solar system?
A grid-tied solar system is a photovoltaic installation that connects to the utility electrical grid. It generates electricity from sunlight, powers on-site loads first, and sends any surplus to the grid for credits. When the panels aren’t producing enough (at night or during cloudy weather), the building draws power from the grid. No batteries are required, making it the simplest and most affordable type of solar installation.
What is the difference between grid-tied and off-grid solar?
A grid-tied system stays connected to the utility grid and uses it as a virtual battery — exporting surplus energy and importing when needed. An off-grid system is completely independent, requiring battery banks, charge controllers, and often a backup generator. Grid-tied systems cost 30–50% less because they skip the battery hardware, but they cannot provide power during grid outages unless paired with a battery backup.
Do grid-tied systems work during a power outage?
No. Standard grid-tied systems shut down automatically during power outages due to anti-islanding protection (required by IEEE 1547 and UL 1741). This safety feature prevents the system from backfeeding electricity into the grid, which could injure utility workers repairing the lines. If backup power during outages is a priority, a grid-tied system with battery backup and a hybrid inverter can island and power critical loads independently.
How do grid-tied systems export energy to the grid?
When a grid-tied system produces more electricity than the building consumes, the surplus flows automatically through the bi-directional utility meter to the grid. The inverter synchronizes its output with the grid’s voltage and frequency, and excess current flows outward. The utility meter records both imported and exported energy, and the owner receives credits or compensation based on the local net metering or feed-in tariff policy.
What equipment is needed for a grid-tied solar system?
A basic grid-tied system requires solar panels, a grid-tie inverter (string inverter or microinverters), mounting hardware, wiring, a bi-directional utility meter, and a rapid shutdown device (required by NEC 2017+). You also need an interconnection agreement with the utility and the appropriate permits. No batteries, charge controllers, or backup generators are needed — that’s what makes grid-tied the most cost-effective solar configuration.
