What Is IV Curve? Definition & Guide

Key Takeaways

The IV curve plots current vs. voltage across the entire operating range of a solar cell or module
Two critical boundary points: short-circuit current (Isc) and open-circuit voltage (Voc)
The maximum power point (MPP) sits on the “knee” of the curve where P = I x V is highest
Curve shape changes with irradiance, temperature, shading, and module degradation
MPPT algorithms continuously track the optimal operating point on this curve
Comparing measured IV curves to manufacturer specs reveals performance issues and faults

What Is an IV Curve?

An IV curve (current-voltage curve) is a graphical representation of all possible operating points of a solar cell, module, or string under specific irradiance and temperature conditions. The horizontal axis shows voltage (V) and the vertical axis shows current (I). Every point on the curve represents a valid combination of current and voltage at which the device can operate.

The curve starts at the short-circuit current (Isc) on the y-axis — the maximum current when voltage is zero — and ends at the open-circuit voltage (Voc) on the x-axis — the maximum voltage when current is zero. Between these two extremes, the curve traces a characteristic shape with a distinct “knee” region where the product of current and voltage (power) reaches its maximum.

The IV curve is the fundamental performance fingerprint of any photovoltaic device. Every design decision — from module selection to string sizing to inverter matching — relies on understanding how this curve behaves under real-world conditions.

How the IV Curve Is Constructed

An IV curve is generated by systematically varying the electrical load connected to a solar cell or module and recording the resulting current and voltage pairs. Here’s how the measurement works:

Short-Circuit Condition (V = 0)

With zero resistance across the terminals, maximum current flows. This is the short-circuit current (Isc), which is directly proportional to the irradiance hitting the cell.

Increasing Load Resistance

As resistance increases, voltage rises and current begins to decrease slightly. In this region the curve is relatively flat — current stays nearly constant as voltage increases.

Knee Region (Maximum Power Point)

The curve bends sharply. Current begins dropping more steeply as voltage continues to rise. The point where P = I x V reaches its maximum is the maximum power point (MPP).

Steep Decline

Beyond the knee, current drops rapidly with increasing voltage. The module is operating inefficiently — high voltage but very low current output.

Open-Circuit Condition (I = 0)

With infinite resistance (open terminals), no current flows. The voltage across the terminals reaches its maximum — the open-circuit voltage (Voc).

Power at Any Point on the IV Curve

P = I × V (watts)

Key Parameters on the IV Curve

The IV curve defines several parameters that appear on every solar module datasheet. Understanding these is necessary for accurate system design with solar design software.

Current Axis

Short-Circuit Current (Isc)

Maximum current output at zero voltage. Directly proportional to irradiance — doubling the light roughly doubles Isc. Used for overcurrent protection sizing and string fuse selection.

Voltage Axis

Open-Circuit Voltage (Voc)

Maximum voltage at zero current. Increases logarithmically with irradiance but decreases with temperature. Critical for determining maximum string voltage and inverter voltage window.

Optimal Point

Maximum Power Point (Impp, Vmpp)

The current and voltage pair where output power is highest. MPPT inverters continuously adjust the operating point to stay at or near this location on the curve.

Efficiency Metric

Fill Factor (FF)

The ratio of actual maximum power to the theoretical maximum (Isc x Voc). A perfect cell would have FF = 1.0. Real cells typically achieve 0.70–0.85. Higher fill factor means a more “square” IV curve.

Fill Factor Formula

FF = (Impp × Vmpp) ÷ (Isc × Voc)

Designer’s Note

Fill factor is one of the best single-number indicators of cell quality. Degradation, manufacturing defects, and high series resistance all reduce the fill factor by “rounding” the knee of the IV curve. When comparing modules of similar power rating, the one with higher fill factor will perform more consistently across varying conditions.

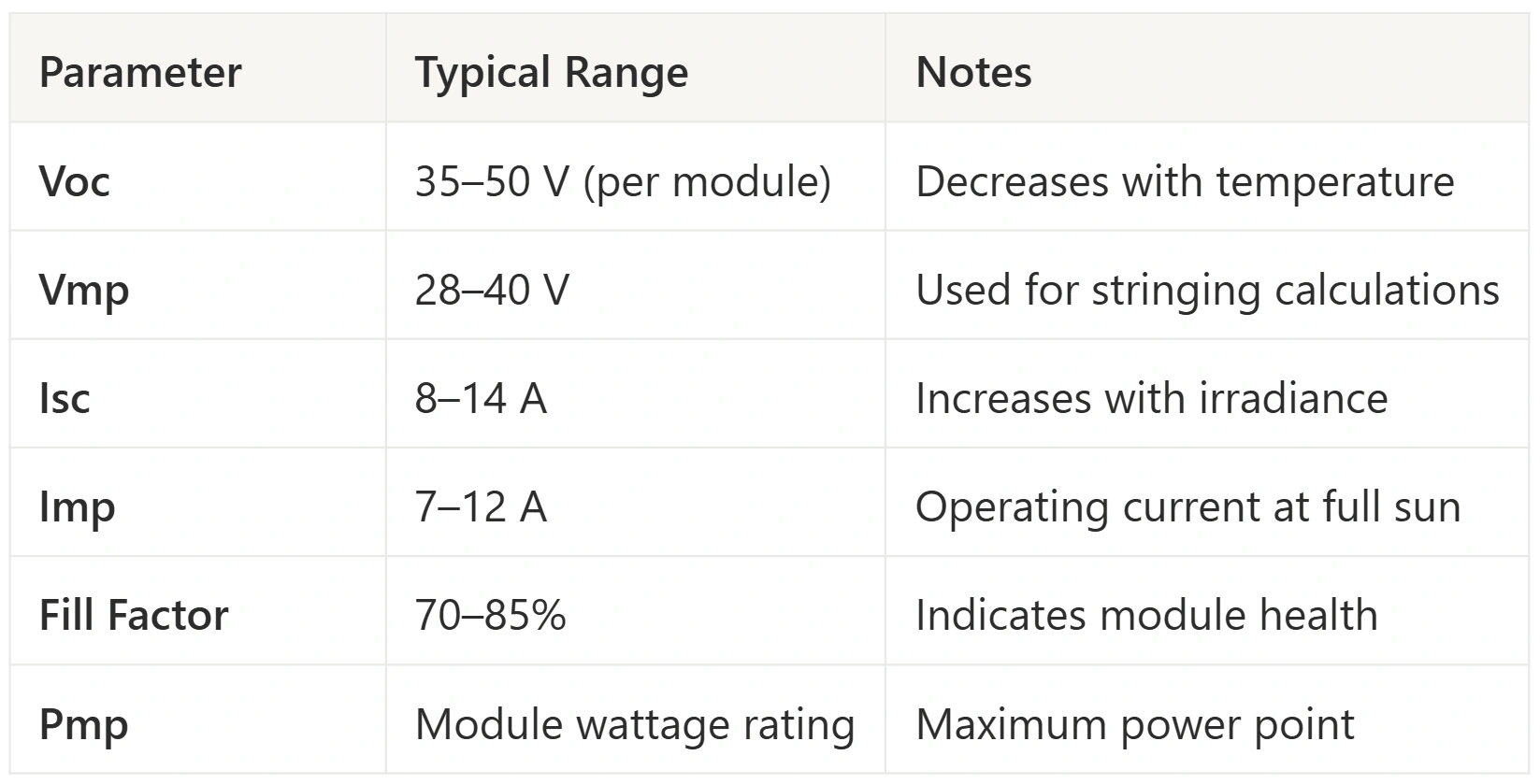

Key Metrics & Calculations

Parameter	Symbol	Unit	Typical Range (crystalline Si)
Short-Circuit Current	Isc	A	9–12 A (60-cell), 11–18 A (larger formats)
Open-Circuit Voltage	Voc	V	38–50 V (60-cell), 45–58 V (larger formats)
MPP Current	Impp	A	8.5–11.5 A
MPP Voltage	Vmpp	V	31–42 V
Maximum Power	Pmax	W	350–600+ W
Fill Factor	FF	—	0.72–0.82

Practical Guidance

The IV curve affects module selection, string design, and troubleshooting. Here’s how each role uses this information:

Use Voc for maximum string voltage calculations. At the coldest expected temperature, Voc increases. The maximum string voltage (Voc × number of modules × temperature correction) must stay below the inverter’s maximum DC input voltage.
Use Vmpp for optimal string sizing. The sum of Vmpp values across the string should fall within the inverter’s MPPT voltage window at operating temperatures. Solar design software automates these temperature-adjusted calculations.
Check temperature coefficients. The Voc temperature coefficient (typically -0.25% to -0.35%/°C) determines how much voltage changes with temperature. This directly affects string length and inverter compatibility.
Compare IV curves across module options. Higher fill factor modules deliver more consistent real-world performance. The shape of the IV curve matters as much as the peak power rating.

Measure Voc before connecting strings. Before energizing the inverter, measure each string’s open-circuit voltage. It should match the expected value (Voc × modules in series), adjusted for ambient temperature. Deviations indicate wiring errors or faulty modules.
Use IV curve tracing for commissioning. A portable IV curve tracer captures the full curve of each string. Compare results against the manufacturer’s reference to verify proper installation.
Identify shading from curve shape. A healthy IV curve has one smooth knee. Multiple “steps” or notches in the curve indicate partial shading, bypass diode activation, or module mismatch.
Document IV curves at commissioning. Baseline IV curve measurements provide a reference for future performance comparisons and warranty claims.

Explain the IV curve simply. Tell customers: “The IV curve shows all the power levels your panels can produce. Our inverter’s job is to keep the system running at the peak of this curve at all times.”
Use fill factor to differentiate quality. When comparing module brands, fill factor is a simple metric that indicates manufacturing quality — higher is better.
Highlight MPPT as a key inverter feature. Customers benefit from understanding that the inverter actively maximizes power output by tracking the optimal point on the IV curve throughout the day.
Use solar software proposals to show production estimates. Production modeling tools account for IV curve behavior across varying conditions to produce accurate energy yield projections.

Design Systems with Precise IV Curve Modeling

SurgePV’s design engine uses module IV curve data to optimize string sizing, inverter matching, and energy yield predictions automatically.

Start Free Trial

No credit card required

Real-World Examples

Module Selection: Comparing Two 400 W Panels

Two 400 W modules from different manufacturers have identical Pmax ratings but different IV curve characteristics. Module A has a fill factor of 0.81 with Voc = 48.5 V and Isc = 10.36 A. Module B has a fill factor of 0.74 with Voc = 50.2 V and Isc = 10.78 A. Despite the same nameplate power, Module A maintains higher output under partial cloud cover because its “squarer” IV curve keeps current high across a wider voltage range. The designer selects Module A for a project with intermittent shading.

String Sizing: Cold Climate Installation

A designer in Minnesota sizes strings for a project where winter temperatures reach -30°C. At STC (25°C), the module Voc is 45.8 V. Using the temperature coefficient of -0.29%/°C, the cold-temperature Voc becomes 45.8 × (1 + 0.0029 × 55) = 53.1 V. With a 600 V inverter maximum, the designer limits strings to 11 modules (11 × 53.1 = 584 V) instead of the 13 modules that would fit at STC voltage (13 × 45.8 = 595 V).

Fault Detection: Stepped IV Curve

During annual maintenance, an IV curve trace of a 12-module string shows two distinct steps in the curve instead of a smooth knee. This indicates two modules are partially shaded or have activated bypass diodes. The installer identifies a recently installed HVAC unit casting shadows on two modules during afternoon hours. The designer recommends adding module-level power electronics to mitigate the mismatch loss.

How Environmental Factors Shift the IV Curve

Understanding how real-world conditions change the IV curve is critical for accurate energy yield modeling:

Factor	Effect on Current (I)	Effect on Voltage (V)	Net Power Impact
Higher Irradiance	Increases proportionally	Slight increase	Significant increase
Lower Irradiance	Decreases proportionally	Slight decrease	Significant decrease
Higher Temperature	Slight increase	Significant decrease	Net decrease (3–5% per 10°C)
Lower Temperature	Slight decrease	Significant increase	Net increase
Partial Shading	Reduces in affected cells	May cause steps in curve	Disproportionate loss
Module Aging	Gradual decrease	Gradual decrease	0.4–0.7% annual loss

Pro Tip

When modeling energy yield, do not rely on STC ratings alone. The IV curve shifts throughout the day as irradiance and temperature change. Use solar design software that models IV curve behavior hour-by-hour across a typical meteorological year (TMY) for accurate annual production estimates.

Frequently Asked Questions

What does the IV curve of a solar panel show?

The IV curve shows every possible combination of current and voltage that a solar panel can produce under specific light and temperature conditions. It starts at the maximum current (short-circuit current) on the left, passes through the maximum power point in the middle “knee” region, and ends at the maximum voltage (open-circuit voltage) on the right. The curve tells you how the panel performs across its entire operating range.

Why is the IV curve important for solar system design?

The IV curve determines how many panels you can wire in a string (based on voltage limits), which inverter to use (based on the MPPT voltage window), and how much energy the system will produce under real conditions. Without understanding the IV curve, designers risk exceeding inverter voltage limits, operating outside the MPPT range, or overestimating production — all of which reduce system performance and customer satisfaction.

What is fill factor and why does it matter?

Fill factor is the ratio of a solar panel’s actual maximum power output to the theoretical maximum (Isc × Voc). It ranges from 0 to 1, with typical values of 0.72–0.82 for crystalline silicon panels. A higher fill factor means the IV curve is more “square,” indicating lower internal losses and better cell quality. Panels with higher fill factor perform more consistently across varying light and temperature conditions.

How does temperature affect the IV curve?

Higher temperatures primarily reduce voltage (Voc drops by about 0.25–0.35% per degree Celsius above 25°C), while current increases only slightly. The net effect is a power loss of roughly 0.3–0.5% per degree Celsius. This is why solar panels produce less power on hot summer days than their STC rating suggests. In cold climates, the opposite occurs — voltage increases, which is why string sizing must account for the lowest expected temperatures.
