What Is IV Curve Tracing? Definition & Guide

Key Takeaways

IV curve tracing captures the full current-voltage profile of a PV module or string in seconds
Compares measured curves against manufacturer reference data to identify underperformance
Detects faults including shading, bypass diode failures, cracked cells, and degradation
Essential for commissioning verification, warranty claims, and periodic maintenance
Measurements must be normalized to Standard Test Conditions for valid comparisons
Portable IV curve tracers are standard equipment for professional solar O&M teams

What Is IV Curve Tracing?

IV curve tracing is a diagnostic measurement technique that sweeps across the entire operating range of a photovoltaic module or string — from short-circuit current (Isc) to open-circuit voltage (Voc) — and records every current-voltage pair along the way. The result is a complete IV curve that serves as a performance fingerprint for the tested device.

A portable device called an IV curve tracer performs the measurement. It connects to the DC output of a module or string, applies a rapidly varying electronic load (typically completing the sweep in 20–100 milliseconds), and records hundreds of I-V data points. The tracer also measures irradiance and temperature so the results can be translated to Standard Test Conditions (STC) for comparison with the manufacturer’s datasheet values.

IV curve tracing is the most comprehensive single diagnostic test available for PV modules. While a simple voltage or current measurement tells you one operating point, an IV curve trace reveals the entire performance picture — including faults that would be invisible to spot checks.

How IV Curve Tracing Works

The measurement process follows a standardized sequence to produce reliable, comparable results:

Setup and Safety

Disconnect the string from the inverter. Connect the IV curve tracer to the string’s positive and negative leads. Attach the irradiance sensor (pyranometer or reference cell) in the plane of the array and the temperature sensor to the back of a representative module.

Environmental Measurement

The tracer records the current irradiance (W/m²) and module temperature (°C). These values are needed to translate the measured curve to STC (1000 W/m², 25°C, AM1.5 spectrum).

Electronic Load Sweep

The tracer applies a varying electronic load that sweeps from near-zero resistance (short-circuit) to near-infinite resistance (open-circuit) in milliseconds. It records current and voltage at each point throughout the sweep.

Data Recording

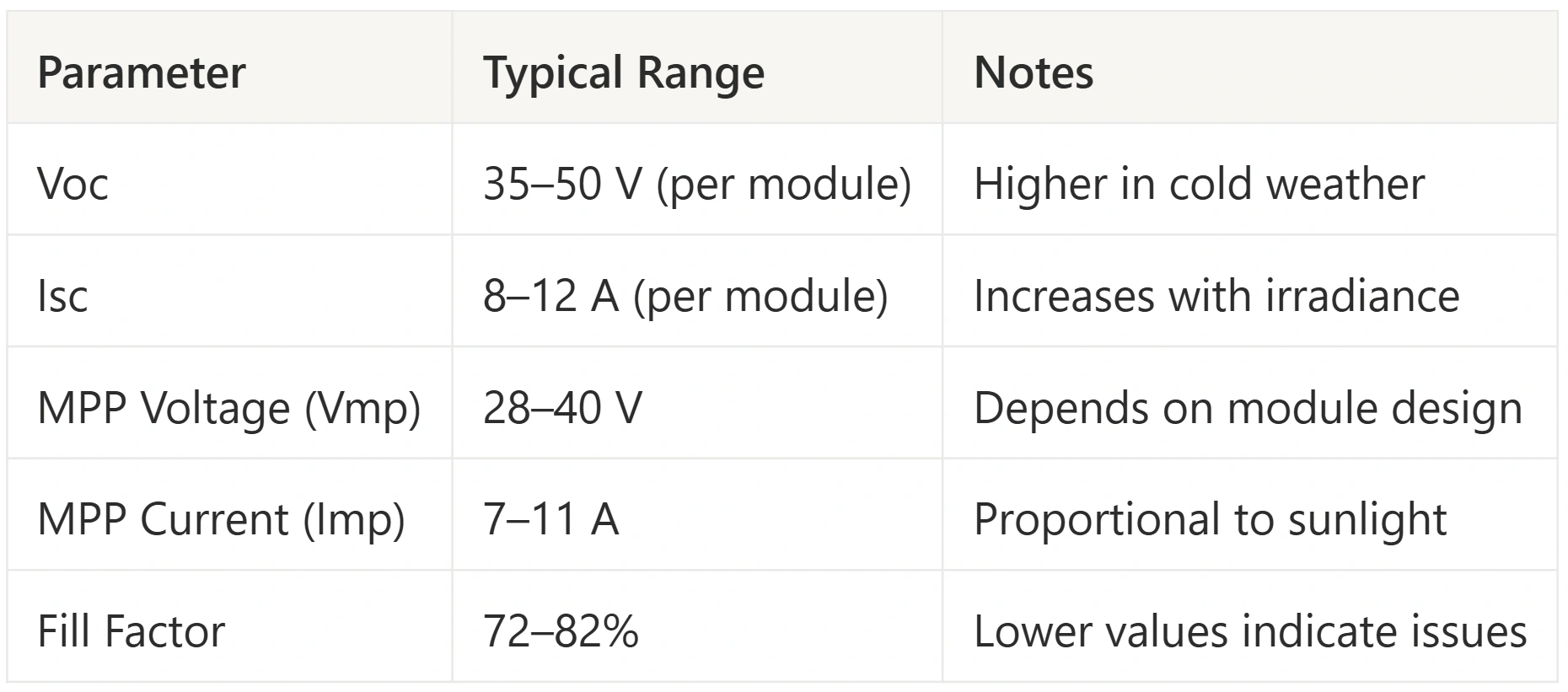

Hundreds of I-V data pairs are captured, along with the calculated Isc, Voc, Impp, Vmpp, Pmax, and fill factor. The tracer stores all data for later analysis.

STC Translation

Using the measured irradiance and temperature, the software translates the raw IV curve to STC equivalent values. This allows direct comparison with the manufacturer’s reference curve and datasheet specifications.

Analysis and Reporting

The translated curve is overlaid on the manufacturer’s reference curve. Deviations in shape, Pmax, fill factor, or key parameters indicate specific fault types that trained analysts can identify.

Performance Deviation

Deviation (%) = ((Pmax_measured_STC − Pmax_rated) ÷ Pmax_rated) × 100

Types of Faults Detected by IV Curve Tracing

Different fault types produce characteristic distortions in the IV curve shape. Experienced analysts can diagnose issues by visual inspection of the trace.

Common

Partial Shading

Creates visible “steps” or notches in the curve as bypass diodes activate in shaded cell groups. Power loss is disproportionate to the shaded area — a 10% shaded area can cause 30%+ power loss in a string.

Electrical

Increased Series Resistance

Corroded connections, damaged busbars, or degraded solder joints increase series resistance. The IV curve shows a reduced fill factor — the knee becomes rounder and the slope near Voc steepens. Power at MPP drops while Isc and Voc remain relatively normal.

Cell Damage

Cracked or Inactive Cells

Micro-cracks reduce the effective cell area, lowering current output. The IV curve shows reduced Isc and may show steps if bypass diodes are triggered. Electroluminescence imaging can confirm the crack locations.

Component

Bypass Diode Failure

A short-circuited bypass diode removes one cell group from the circuit, reducing Voc by the voltage of that group (typically 10–15 V per diode). An open-circuited diode eliminates protection against shading hot spots.

Designer’s Note

When reviewing IV curve trace results, focus on fill factor and curve shape rather than just Pmax. A module can show acceptable Pmax under high irradiance while hiding a series resistance problem that will significantly reduce output under lower irradiance conditions. Tools like solar design software use detailed module models that account for these behaviors in energy yield simulations.

Key Metrics & Measurement Standards

Parameter	Acceptable Tolerance	Indicates Problem When
Pmax vs. rated	Within -3% to +5%	Below -5% of rated power at STC
Fill Factor	Within 3% of reference	Drops more than 5% below reference
Isc vs. rated	Within ±3%	Deviates more than 5% (cell damage or soiling)
Voc vs. rated	Within ±2%	Drops more than 3% (bypass diode short or degradation)
Curve Shape	Smooth, single knee	Steps, notches, or excessive rounding
String Uniformity	All strings within 3%	Any string deviating more than 5% from average

STC Translation (Simplified)

Pmax_STC = Pmax_measured × (1000 / G_measured) × (1 + γ × (25 − T_cell))

Where G_measured is irradiance in W/m², T_cell is cell temperature in °C, and γ is the power temperature coefficient (%/°C).

Practical Guidance

IV curve tracing serves different purposes across the solar project lifecycle. Here’s how each role benefits:

Specify commissioning IV curve traces in project documentation. Include IV curve tracing as a required commissioning step in your design specifications. This establishes a performance baseline and verifies the installation matches the design.
Use trace data to validate simulation models. Compare measured IV curves from commissioned systems against your design software predictions to calibrate future energy yield estimates.
Design for testability. Include accessible string-level disconnects that allow IV curve tracing without disassembling combiner boxes or disconnecting long wire runs.
Account for measurement uncertainty. IV curve tracers have typical accuracy of ±2–3%. When evaluating performance, allow for instrument error before flagging underperformance.

Trace every string at commissioning. A commissioning IV curve trace catches installation errors, damaged modules from shipping/handling, and wiring issues before the system goes live. This is far cheaper than post-commissioning troubleshooting.
Measure under good irradiance conditions. For reliable results, perform traces when irradiance exceeds 700 W/m² and is stable (no moving clouds). Low-light measurements have higher uncertainty and are harder to translate to STC.
Compare strings against each other. In a uniform array, all strings should produce nearly identical IV curves. A string that deviates by more than 5% from the average warrants investigation.
Store trace data for warranty documentation. IV curve trace records are accepted by most module manufacturers as evidence for warranty claims. Include date, irradiance, temperature, and the full IV dataset.

Offer IV curve tracing as a maintenance service. Annual or biennial IV curve tracing is a recurring revenue opportunity. Position it as a health checkup that protects the customer’s investment.
Include commissioning traces in your standard proposal. Customers value knowing their system was verified against manufacturer specifications at installation. Use solar software to include this in your standard project scope.
Use trace results to justify replacements. When proposing a system upgrade or module replacement, IV curve traces from the existing system provide objective evidence of degradation or underperformance.
Differentiate on quality assurance. Many installers skip IV curve tracing. Offering it as standard demonstrates a commitment to quality that justifies premium pricing.

Design Systems That Perform as Promised

SurgePV’s detailed simulation engine models module-level performance so your production estimates align with real-world IV curve measurements.

Start Free Trial

No credit card required

Real-World Examples

Commissioning: 50 kW Commercial Rooftop

During commissioning of a 50 kW commercial system with 10 strings of 12 modules each, IV curve tracing reveals that String 7 produces 8% less power than the average of the other nine strings. The trace shows a reduced Voc consistent with a short-circuited bypass diode in one module. The installer replaces the affected module before handover, avoiding a long-term production loss of approximately 400 kWh/year.

Maintenance: Residential System After 5 Years

A homeowner reports lower-than-expected production from their 7 kW system after five years. An IV curve trace of each string reveals fill factor degradation of 12% compared to commissioning baseline data. The rounded knee of the IV curve indicates increased series resistance — likely caused by corroded MC4 connectors. The technician replaces all connectors, restoring the fill factor to within 3% of the original baseline.

Warranty Claim: Module Underperformance

A 200 kW ground-mount system shows 6% annual underperformance compared to the design model. IV curve tracing across all strings reveals that modules from one production batch consistently measure 4–7% below rated Pmax at STC. The translated IV curves, along with irradiance and temperature records, are submitted to the manufacturer as evidence. The warranty claim is approved, and 48 modules are replaced at no cost.

IV Curve Tracing vs. Other Diagnostic Methods

Method	What It Measures	Advantages	Limitations
IV Curve Tracing	Full I-V characteristic	Comprehensive, quantitative, STC-translatable	Requires disconnection, good irradiance
Thermal Imaging	Surface temperature variation	Non-contact, fast, visual	Cannot quantify power loss
Electroluminescence	Cell-level defects	Detects micro-cracks, inactive areas	Requires darkness, specialized camera
String Monitoring	Continuous current/power	Real-time, no disconnection needed	Cannot diagnose specific fault types
Visual Inspection	Visible damage	Simple, no equipment	Misses internal and electrical faults

Pro Tip

Combine IV curve tracing with thermal imaging for the most thorough diagnostic assessment. The IV curve trace quantifies the power loss, and the thermal image pinpoints its physical location on the module. Together, they give you both the “how much” and the “where” needed for efficient troubleshooting.

Frequently Asked Questions

What is IV curve tracing used for in solar?

IV curve tracing is used to measure the complete electrical performance of solar panels and strings. It captures the full relationship between current and voltage output, allowing technicians to verify that modules perform to their rated specifications, detect faults like cracked cells or failed bypass diodes, and document performance baselines for warranty purposes. It is the most comprehensive single electrical test for PV modules.

How often should IV curve tracing be performed?

At minimum, IV curve tracing should be performed at system commissioning to establish a performance baseline. For commercial and utility-scale systems, annual or biennial tracing is recommended as part of preventive maintenance. Residential systems benefit from tracing every 3–5 years or whenever monitoring data suggests underperformance. Additional traces should be performed after any event that could cause damage, such as severe storms or nearby construction.

Can IV curve tracing detect all types of solar panel faults?

IV curve tracing detects most electrical faults that affect power output, including shading, bypass diode failures, increased series resistance, cell cracking, and module degradation. However, it cannot pinpoint the physical location of a fault within a module — for that, you need thermal imaging or electroluminescence testing. It also may not detect potential-induced degradation (PID) in early stages or ground faults that do not yet affect the IV characteristic.

What conditions are needed for accurate IV curve tracing?

For reliable IV curve tracing, irradiance should be above 700 W/m² and stable (no rapidly passing clouds). The array should be clean and free of temporary obstructions. An irradiance sensor and temperature sensor must be placed correctly — the irradiance sensor in the plane of the array and the temperature sensor on the back of a module. The string being tested must be disconnected from the inverter. IEC 62446-1 provides detailed guidelines for measurement conditions and procedures.
