What Is Junction Box? Definition & Guide

Key Takeaways

The junction box is the electrical interface between a solar module’s cells and the external wiring
Houses bypass diodes that protect against hot spots caused by partial shading
Rated for IP65 or IP67 protection to withstand rain, dust, and temperature extremes
Connection quality directly affects long-term module reliability and fire safety
Most modern junction boxes use pre-attached cables with MC4 or equivalent connectors
Junction box failures account for a measurable percentage of field warranty claims

What Is a Junction Box?

A junction box is a sealed enclosure mounted on the rear side of a solar panel that serves as the electrical connection point between the photovoltaic cells inside the module and the external DC wiring. It houses the bypass diodes, solder or crimp connections from the cell strings, and the output cable terminals. Every solar module has at least one junction box, and some larger or bifacial modules have two or more.

The junction box performs three functions simultaneously: it provides a weatherproof enclosure for sensitive electrical connections, contains bypass diodes that protect the module during partial shading, and terminates the output cables that connect the module to the rest of the PV string.

The junction box is one of the most failure-prone components in a solar module. A well-designed junction box with proper potting and strain relief can last 25+ years. A poorly designed one can cause arc faults, power losses, and in extreme cases, fires.

How a Junction Box Works

The junction box sits in the electrical path between the solar cells and the external circuit. Here’s how power flows through it:

Cell String Connections

Ribbon conductors (busbars) from the solar cells exit through holes in the module’s backsheet and connect to terminal points inside the junction box. These connections are soldered or welded to bus bars within the box.

Bypass Diode Integration

Bypass diodes are connected across each cell string (typically 3 diodes for a standard 60- or 72-cell module). When a cell string is shaded, its bypass diode conducts current around the shaded cells, preventing hot spots and maintaining string current flow.

Cable Termination

Output cables with standardized connectors (MC4 or equivalent) are attached to the junction box terminals. Strain relief grommets prevent cable movement from stressing the internal connections.

Potting and Sealing

The interior is filled with silicone potting compound or sealed with adhesive to achieve IP65/IP67 ingress protection. This prevents moisture from reaching the electrical connections and causing corrosion or short circuits.

Power Output

DC electricity flows from the cells through the junction box connections and out through the cables to the next module in the string or to the combiner box. The bypass diodes remain inactive unless shading triggers them.

Bypass Diode Activation Condition

Diode conducts when: Shaded Cell Reverse Voltage > Diode Forward Voltage (~0.5 V)

Types of Junction Boxes

Junction box designs vary based on module type, manufacturer preference, and application requirements.

Standard

Single-Box (Centralized)

One junction box centered on the module backside, housing all bypass diodes and cable connections. The most common design for standard monofacial panels. Simple to manufacture and inspect.

Bifacial

Split Junction Box

Two or three smaller boxes distributed across the module rear. Used on bifacial panels where a single central box would shade rear-side cells. Reduces thermal stress by distributing heat across multiple locations.

Integrated

Smart Junction Box

Includes module-level power electronics (MLPE) such as power optimizers or microinverter interfaces. Adds monitoring capability and per-module MPPT directly within the junction box enclosure.

Industrial

External Junction Box (Field)

Separate from the module — used for combining multiple module strings or for field wiring splices. Typically NEMA 4X or IP66 rated. Houses fuses, disconnects, or surge protection devices rather than bypass diodes.

Designer’s Note

When selecting modules for a project, pay attention to the junction box IP rating, potting material, and diode thermal rating. In hot climates where module temperatures regularly exceed 70°C, junction box reliability becomes a significant factor. Use solar design software to check that selected modules have adequate thermal ratings for your project’s climate zone.

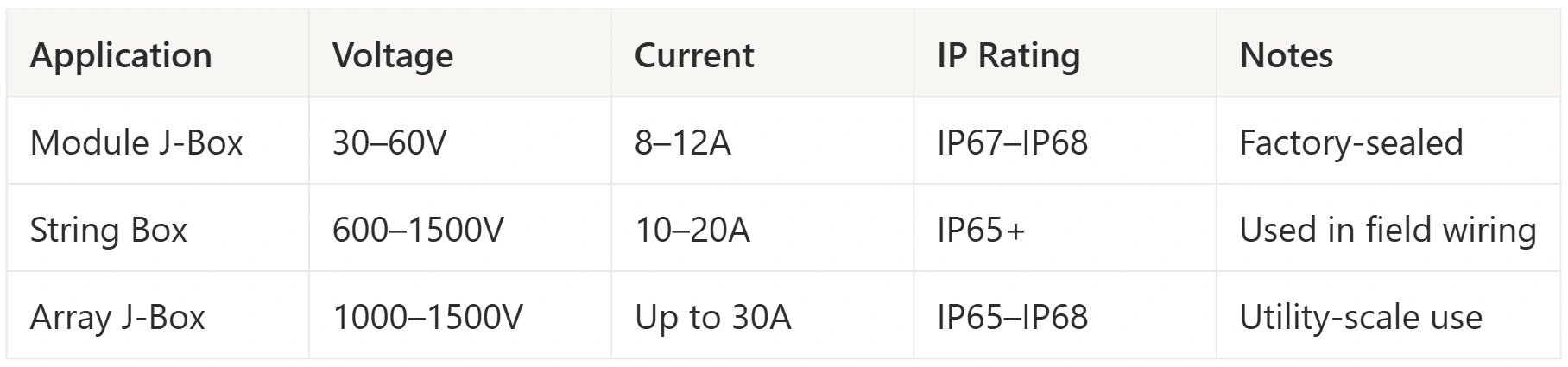

Key Specifications

Specification	Typical Value	Why It Matters
IP Rating	IP65 or IP67	Water and dust ingress protection — IP67 allows brief submersion
Bypass Diodes	3 (for 60/72-cell modules)	Number of protected cell groups — fewer diodes means larger shading impact per group
Maximum System Voltage	1000 V or 1500 V DC	Must match the system voltage class — mixing ratings is a code violation
Current Rating	15–25 A	Must exceed the module’s Isc by a safety margin (typically 1.25x)
Operating Temperature	-40°C to +85°C	Exceeding the rated range accelerates potting degradation and diode failure
Cable Cross-Section	4 mm² or 6 mm²	Determines current-carrying capacity and voltage drop in the cable run

Diode Power Dissipation

P_diode = I_string × V_forward (typically 0.5–0.7 V) — usually 5–8 W per diode during activation

Practical Guidance

Junction box quality affects long-term system reliability. Here’s what each role needs to know:

Verify junction box voltage ratings match system design. For 1500 V DC systems, every module’s junction box must be rated for 1500 V. A 1000 V-rated junction box in a 1500 V string creates an insulation failure risk and code violation.
Account for bypass diode behavior in shading models. During partial shading, bypass diodes activate and change the IV curve shape. Accurate solar design software models this behavior to predict real production under shading conditions.
Consider split junction boxes for bifacial designs. If specifying bifacial modules, verify the junction box configuration does not shade rear cells. Split designs add 1–3% rear-side yield compared to single-box designs.
Specify IP67 for flood-prone or high-humidity locations. IP65 is sufficient for most installations, but coastal, tropical, or flood-risk sites benefit from IP67’s brief submersion tolerance.

Inspect junction boxes during module receiving. Check for cracks, loose cables, unsealed entry points, or visible damage before installation. Damaged junction boxes should be rejected and returned to the supplier.
Never open factory-sealed junction boxes in the field. Opening the potted enclosure voids the warranty and compromises the IP rating. If a junction box is suspect, replace the entire module.
Ensure proper cable strain relief. Cables should exit the junction box without sharp bends or tension. Use cable clips or ties to secure cables to the module frame, keeping weight off the junction box connections.
Use thermal imaging during commissioning. A junction box running significantly hotter than the module backsheet indicates a high-resistance connection inside. Flag these modules for monitoring or replacement.

Mention junction box quality when comparing modules. Customers often focus only on watt rating and price. Junction box reliability affects the 25-year performance warranty — a failed junction box can take an entire module offline.
Explain bypass diodes in simple terms. Tell customers: “Each panel has built-in safety switches that protect it when shade hits part of the panel. They’re inside a sealed box on the back of each module.” Use solar software to show shading impact visually.
Highlight IP rating for weather-concerned customers. In areas with severe weather, explaining that the junction box is rated to withstand driving rain and temperature extremes builds confidence in system durability.
Use junction box design as a quality indicator. Tier-1 manufacturers invest in higher-quality junction boxes with better potting materials, Schottky bypass diodes, and reinforced cable exits. This differentiates premium modules from budget options.

Design Solar Systems with Component-Level Detail

SurgePV models bypass diode behavior and shading interactions to predict real-world performance, not just nameplate ratings.

Start Free Trial

No credit card required

Real-World Examples

Hot Spot Prevention: Residential Rooftop

A 20-module residential array in Arizona experiences partial shading from a chimney on three modules during morning hours. The bypass diodes in each module’s junction box activate, routing current around the shaded cell strings. Without bypass diodes, the shaded cells would reverse-bias and dissipate up to 20 W of heat each — enough to cause permanent thermal damage. With functional bypass diodes, the modules lose approximately 33% of their output during shading but suffer no physical damage.

Junction Box Failure: Commercial System

A 150 kW commercial system in a humid coastal environment experiences a 12% production shortfall after three years. Thermal imaging reveals two modules with junction box temperatures 30°C above ambient. Investigation shows moisture infiltration through degraded potting compound, causing corrosion at the cell-string solder joints. The corroded connections create high resistance, generating heat and reducing power output. Both modules are replaced under warranty, and the remaining system is inspected for early signs of similar degradation.

Bifacial Installation: Utility-Scale Ground Mount

A 2 MW bifacial ground-mount project uses modules with split junction boxes to avoid rear-side shading. Each module has three small junction boxes positioned along the module edges instead of one large central box. The split design increases rear-side irradiance capture by approximately 2.5%, adding roughly 50 MWh of annual production to the project — equivalent to $4,000–6,000 in additional revenue per year at typical utility rates.

Common Junction Box Failure Modes

Failure Mode	Root Cause	Symptoms	Prevention
Moisture Ingress	Degraded potting or cracked housing	Corrosion, reduced power, ground faults	Specify IP67 in humid climates
Bypass Diode Failure (Short)	Thermal stress, overvoltage	Reduced Voc (10–15 V per diode), lower power	Use modules with Schottky diodes
Bypass Diode Failure (Open)	Manufacturing defect	Hot spots during shading, potential fire risk	Thermal imaging at commissioning
Solder Joint Degradation	Thermal cycling, vibration	Increased series resistance, heating	Quality manufacturer selection
Cable Strain Damage	Poor routing, wind movement	Intermittent connection, arcing risk	Proper cable management

Pro Tip

When evaluating module manufacturers, request the junction box supplier name and specifications separately. Some Tier-1 module makers use Tier-1 junction box suppliers (Staubli, TE Connectivity, QC Solar), while budget manufacturers may use unbranded components with shorter field life. The junction box is often the weakest link in module reliability.

Frequently Asked Questions

What does the junction box on a solar panel do?

The junction box is the sealed enclosure on the back of a solar panel where the internal cell wiring connects to the external output cables. It houses bypass diodes that protect the panel from damage during partial shading, provides weatherproof protection for the electrical connections, and terminates the cables that link the panel to the rest of the solar array. Every solar panel has at least one junction box.

Can a faulty junction box cause a solar panel fire?

Yes, though it is rare with quality modules. A high-resistance connection inside the junction box can generate enough heat to ignite the potting material or backsheet. Failed bypass diodes (open-circuit type) can cause hot spots in shaded cells that exceed 150°C. Proper module selection from reputable manufacturers, commissioning thermal imaging, and periodic inspections significantly reduce this risk. UL and IEC testing standards include fire safety tests for junction boxes.

What is the IP rating on a solar panel junction box?

The IP (Ingress Protection) rating indicates how well the junction box resists dust and water. IP65 means it is dust-tight and protected against water jets from any direction — sufficient for most rooftop and ground-mount installations. IP67 adds protection against brief submersion (up to 1 meter for 30 minutes), which is better for flood-prone areas or modules installed at ground level where standing water may occur.

How many bypass diodes are in a typical junction box?

Most standard solar panels (60-cell, 72-cell, and half-cut cell formats) have three bypass diodes. Each diode protects one-third of the cells in the module. Some smaller modules (36-cell) may have two diodes, and some high-power modules with more cell strings may have four. The number of bypass diodes determines the granularity of shading protection — more diodes means smaller sections are bypassed during partial shading, resulting in less power loss.
